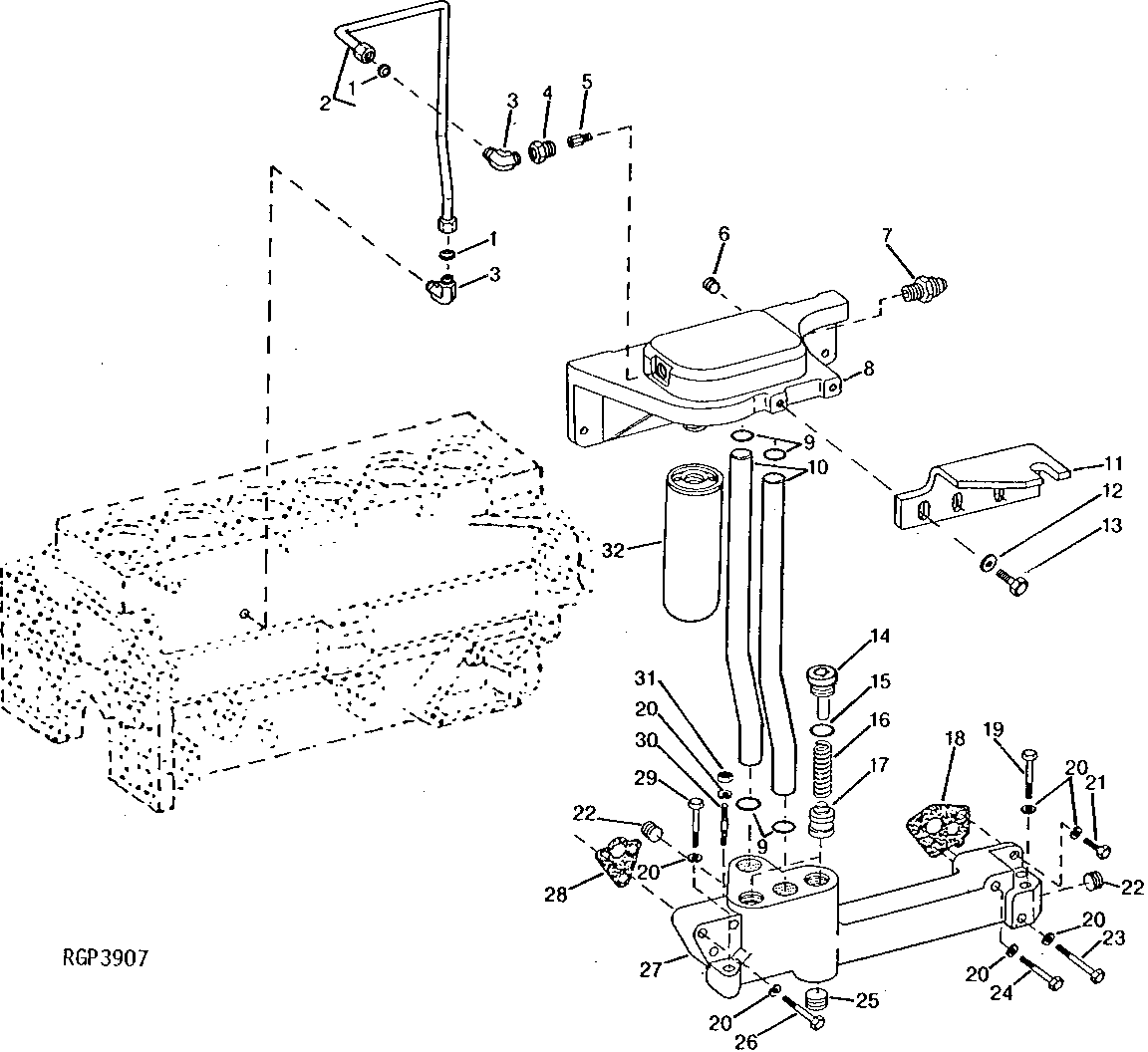

OIL BYPASS VALVE HOUSING AND FILTER (ENGINE SERIAL NO. 500000- ) [01G03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R51936	2	Sealing Washer	-
2	RE50830	1	Oil Line	-
3	R67364	2	Elbow Fitting	-
4	15H511	1	Pipe Bushing	1/8"
5	RE47161	1	Orifice	-
6	15H638	1	Pipe Plug	1/8"
7	A4925R	1	Adapter Fitting	-
8	R112061	1	Base	-
9	R47153	4	O-Ring	-
10	R82500	2	Oil Line	-
11	R101122	1	Bracket	-
12	24H1305	2	Washer	13/32" X 13/16" X 0.065"
13	19H1936	2	Cap Screw	3/8" X 3/4"
14	R86875	2	Fitting Plug	-
15	U17409	2	O-Ring	-
16	R26151	2	SPRING	-
17	R49464	2	VALVE	-
18	R49484	1	Gasket	-
19	19H2553	2	Cap Screw	3/8" X 2-5/8"
20	12H304	9	Lock Washer	3/8", (NO LONGER REQUIRED)
20	12H304	1	Lock Washer	3/8", (NO LONGER REQUIRED W/ E55662)
21	19H2676	1	Cap Screw	3/8" X 1"
22	15H690	2	Pipe Plug	3/4"
23	19H1854	1	Cap Screw	3/8" X 3-3/4"
24	19H2855	1	Cap Screw	3/8" X 3-1/4"
25	15H686	1	Pipe Plug	1"
26	19H2733	3	Cap Screw	3/8" X 2-3/8"
27	R82491	1	Housing	-
28	R49485	1	Gasket	-
29	19H1801	1	CAP SCREW	3/8" X 2"
30	T20173	1	STUD	-
31	E55662	1	Flange Nut	-
32	RE44647	1	Oil Filter	(MARKED RE44647) (FULL-FLOW AND BY-PASS)

OIL BYPASS VALVE HOUSING AND FILTER (ENGINE SERIAL NO. 500000- ) [01G03]
