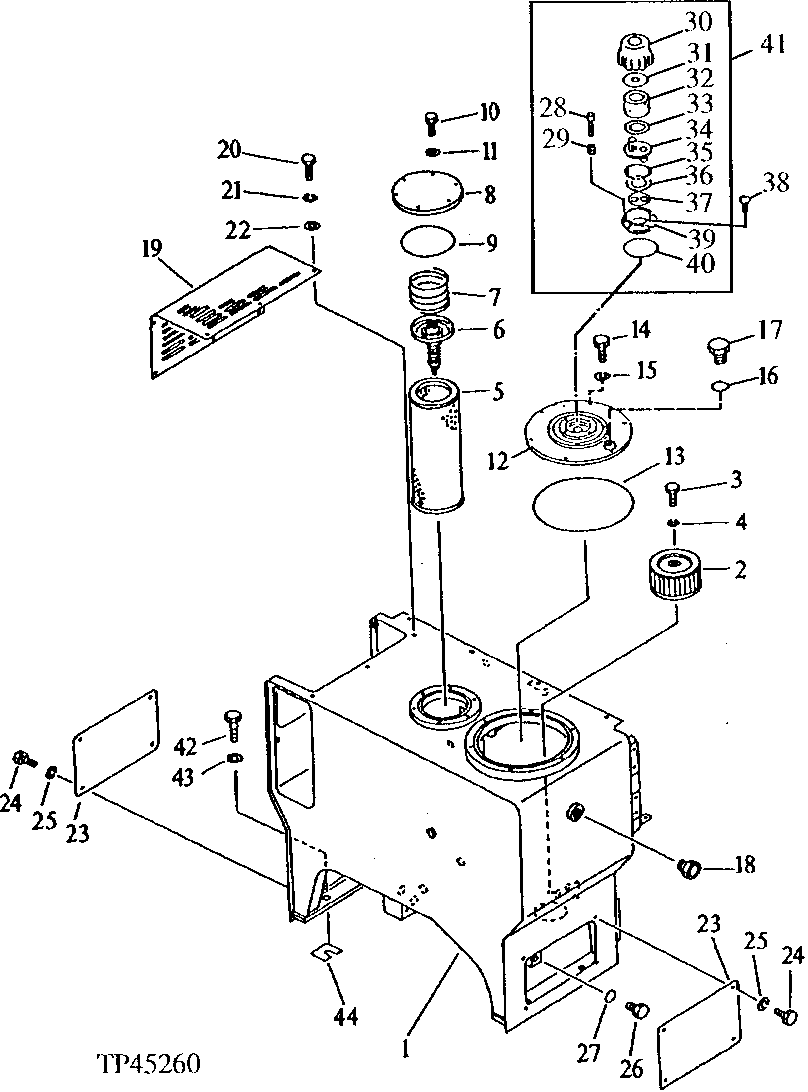

HYDRAULIC RESERVOIR (SERIAL NO. 000406- ) [02K16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT166923	1	TANK	(SUB FOR AT137680)
2	AT137681	1	STRAINER	-
3	19M7163	1	Cap Screw	M8 X 25
4	12M7065	1	Lock Washer	8 MM
5	AT147343	1	Filter Element	(SUB FOR TH109510 OR AT127608)
5	AT162766	1	Filter Element	(CLEAN-UP FILTER) (SHORT TERM USE - APPROXIMATELY THREE HOURS)
6	TH109511	1	FLOW CONTROL HYD. VALVE	-
7	AT136583	1	SPRING	-
8	AT136584	1	COVER	-
9	TH100665	1	O-RING	164.300 X 5.700 MM (6.469" X 0.224")
10	19M7386	6	Cap Screw	M12 X 20
11	12M7067	6	Lock Washer	12 MM, (SUB FOR 12M6268)
12	AT166927	1	COVER	(SUB FOR AT137682)
13	AT136465	1	O-RING	-
14	19M7285	6	Cap Screw	M12 X 30
15	12M7067	6	Lock Washer	12 MM, (SUB FOR 12M6268)
16	T110922	1	O-Ring	-
17	AT137683	1	Pipe Plug	-
18	AT136695	1	GAUGE	-
19	AT137684	1	COVER	-
20	19M7139	8	Cap Screw	M8 X 20
21	12M7065	8	Lock Washer	8 MM
22	24M7055	8	Washer	8.400 X 16 X 1.600 MM, (SUB FOR L29966)
23	AT137685	2	COVER	-
24	19M7166	8	Cap Screw	M10 X 20
25	12M6791	8	Lock Washer	10.200 MM
26	TH110243	1	DRAIN PLUG	(SUB FOR TH109203)
27	CH10569	1	Packing	-
28	19M8576	1	Screw	M5 X 30
29	14M7297	1	Nut	M5
30	AT166929	1	CAP	-
31	AT166939	1	O-RING	-
32	AT166933	1	FILTER ELEMENT	-
33	AT166938	1	O-RING	-
34	AT166934	1	VALVE	-
35	AT166936	1	SNAP RING	-
36	AT166937	1	O-RING	-
37	AT166935	1	PLATE	-
38	TH106598	4	SCREW	M6 X 12
39	AT166930	1	FLANGE	-
40	CH17854	1	Packing	-
41	AT166928	1	CAP	-
42	AT136448	4	BOLT	-
43	24M7242	4	Washer	21.400 X 42 X 5 MM
44	AT137674	1	STRAP	-

HYDRAULIC RESERVOIR (SERIAL NO. 000406- ) [02K16]
