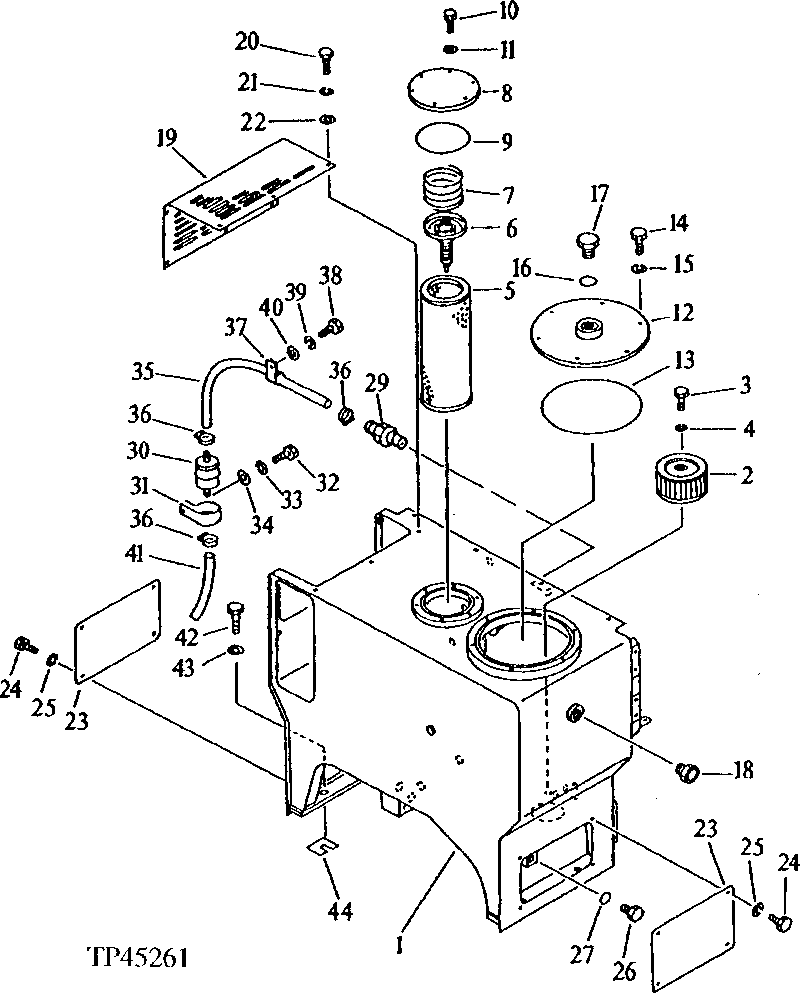

HYDRAULIC RESERVOIR (SERIAL NO. -000405) [02K14]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT137680 NO LONGER AVAILABLE) (SUB AT166923) (ALSO ORDER AT166927, AT166928 AND (4) TH106598)
2	AT137681	1	STRAINER	-
3	19M7163	1	Cap Screw	M8 X 25
4	12M7065	1	Lock Washer	8 MM
5	AT147343	1	Filter Element	(SUB FOR TH109510 OR AT127608)
5	AT162766	1	Filter Element	(CLEAN-UP FILTER) (SHORT TERM USE - APPROXIMATELY THREE HOURS) (IDLE SPEED)
6	TH109511	1	FLOW CONTROL HYD. VALVE	-
7	AT136583	1	SPRING	-
8	AT136584	1	COVER	-
9	TH100665	1	O-RING	164.300 X 5.700 MM (6.469" X 0.224")
10	19M7386	6	Cap Screw	M12 X 20
11	12M7067	6	Lock Washer	12 MM, (SUB FOR 12M6268)
12	-	1	Part 13	( AT137682 NO LONGER AVAILABLE) (SUB AT166927) (ALSO ORDER AT166928 AND (4) TH106598)
13	AT136465	1	O-RING	-
14	19M7285	6	Cap Screw	M12 X 30
15	12M7067	6	Lock Washer	12 MM, (SUB FOR 12M6268)
16	T110922	1	O-Ring	-
17	AT137683	1	Pipe Plug	-
18	AT136695	1	GAUGE	-
19	AT137684	1	COVER	-
20	19M7139	8	Cap Screw	M8 X 20
21	12M7065	8	Lock Washer	8 MM
22	24M7055	8	Washer	8.400 X 16 X 1.600 MM, (SUB FOR L29966)
23	AT137685	2	COVER	-
24	19M7166	8	Cap Screw	M10 X 20
25	12M6791	8	Lock Washer	10.200 MM
26	TH110243	1	DRAIN PLUG	(SUB FOR TH109203)
27	CH10569	1	Packing	-
29	AT167569	1	CONNECTOR	-
30	AT101565	1	Air Filter	-
31	XCL-29	1	Hose Clamp	(SUB FOR AT131725, TH110522 OR 4193848)
32	19M8324	1	Cap Screw	M10 X 16
33	12M6791	1	Lock Washer	10.200 MM
34	24M7028	1	Washer	10.500 X 20 X 2 MM
35	M87571	1	Hose	(CUT TO LENGTH)
36	TY22464	3	Clamp	(SUB FOR AT145649, AR21836)
37	T74416	1	Clamp	-
38	19M8324	1	Cap Screw	M10 X 16
39	12M6791	1	Lock Washer	10.200 MM
40	24M7028	1	Washer	10.500 X 20 X 2 MM
41	M87571	1	Hose	(CUT TO LENGTH)
42	AT136448	4	BOLT	-
43	24M7242	4	Washer	21.400 X 42 X 5 MM
44	AT137674	1	STRAP	-

HYDRAULIC RESERVOIR (SERIAL NO. -000405) [02K14]
