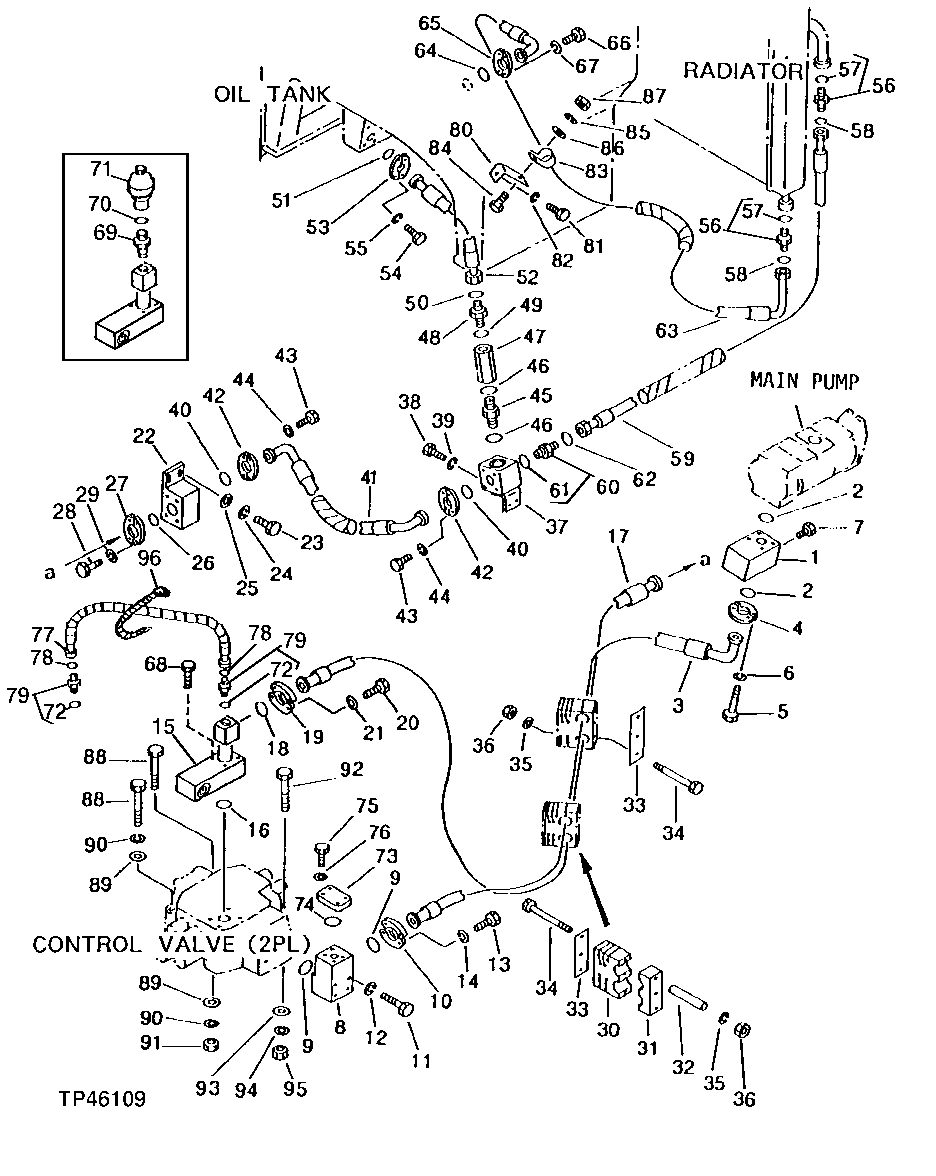

HYDRAULIC LINES AND HOSES (PUMP TO CONTROL TO RESERVOIR) [02K10]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT137699	1	HOUSING	-
2	T72216	2	O-Ring	(SUB FOR AT136550)
3	AT163123	1	HYDRAULIC HOSE	-
3	AT137714	1	HYDRAULIC HOSE - FABRICATE	-
4	AT136592	2	FLANGE FITTING	-
5	T142262	4	Cap Screw	(SUB FOR AT136452)
6	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
7	TH111906	1	FITTING PLUG	-
8	AT137700	1	MANIFOLD	-
9	T72216	2	O-Ring	(SUB FOR AT136550)
10	AT136592	2	FLANGE FITTING	-
11	T142262	4	Cap Screw	(SUB FOR AT136452)
12	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
13	19M8011	4	Cap Screw	M12 X 30
14	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
15	AT138131	1	MANIFOLD	-
15	-	1	Part 17	-
16	T72216	1	O-Ring	(SUB FOR AT136550)
17	AT138132	1	HOSE	-
18	T72216	1	O-Ring	(SUB FOR AT136550)
19	AT136592	2	FLANGE FITTING	-
20	19M7744	4	Cap Screw	M12 X 35
21	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
22	AT137702	1	HOUSING	-
23	19M7285	2	Cap Screw	M12 X 30
24	12M7067	2	Lock Washer	12 MM, (SUB FOR 12M6268)
25	24M7047	2	Washer	13 X 24 X 2.500 MM
26	T34248	1	O-Ring	(SUB FOR AT137957)
27	X51H-24	2	Flange Fitting	(SUB FOR AT137677 OR T47649)
28	19M7744	4	Cap Screw	M12 X 35
29	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
30	AT137703	2	BUSHING	-
31	AT137704	2	BUSHING	-
32	AT137705	6	TUBE	-
33	AT137706	2	PLATE	-
34	19M8037	6	Cap Screw	-
35	12M7067	6	Lock Washer	12 MM, (SUB FOR 12M6268)
36	14M7275	6	Nut	M12
37	AT137708	1	HOUSING	-
38	19M7285	2	Cap Screw	M12 X 30
39	12M7067	2	Lock Washer	12 MM, (SUB FOR 12M6268)
40	T34248	2	O-Ring	(SUB FOR AT137957)
41	AT137709	1	HYDRAULIC HOSE - FABRICATE	-
42	AT137677	4	FLANGE	-
43	19M7744	8	Cap Screw	M12 X 35
44	12M7067	8	Lock Washer	12 MM, (SUB FOR 12M6268)
45	AT137337	1	ADAPTER FITTING	-
46	AT122625	2	O-Ring	-
47	AT136618	1	VALVE	-
48	AT137710	1	ADAPTER FITTING	-
49	AT122625	1	O-Ring	-
50	T78784	1	O-Ring	(SUB FOR AT137711)
51	T34248	1	O-Ring	(SUB FOR AT137957)
52	AT137712	1	HYDRAULIC HOSE - FABRICATE	-
