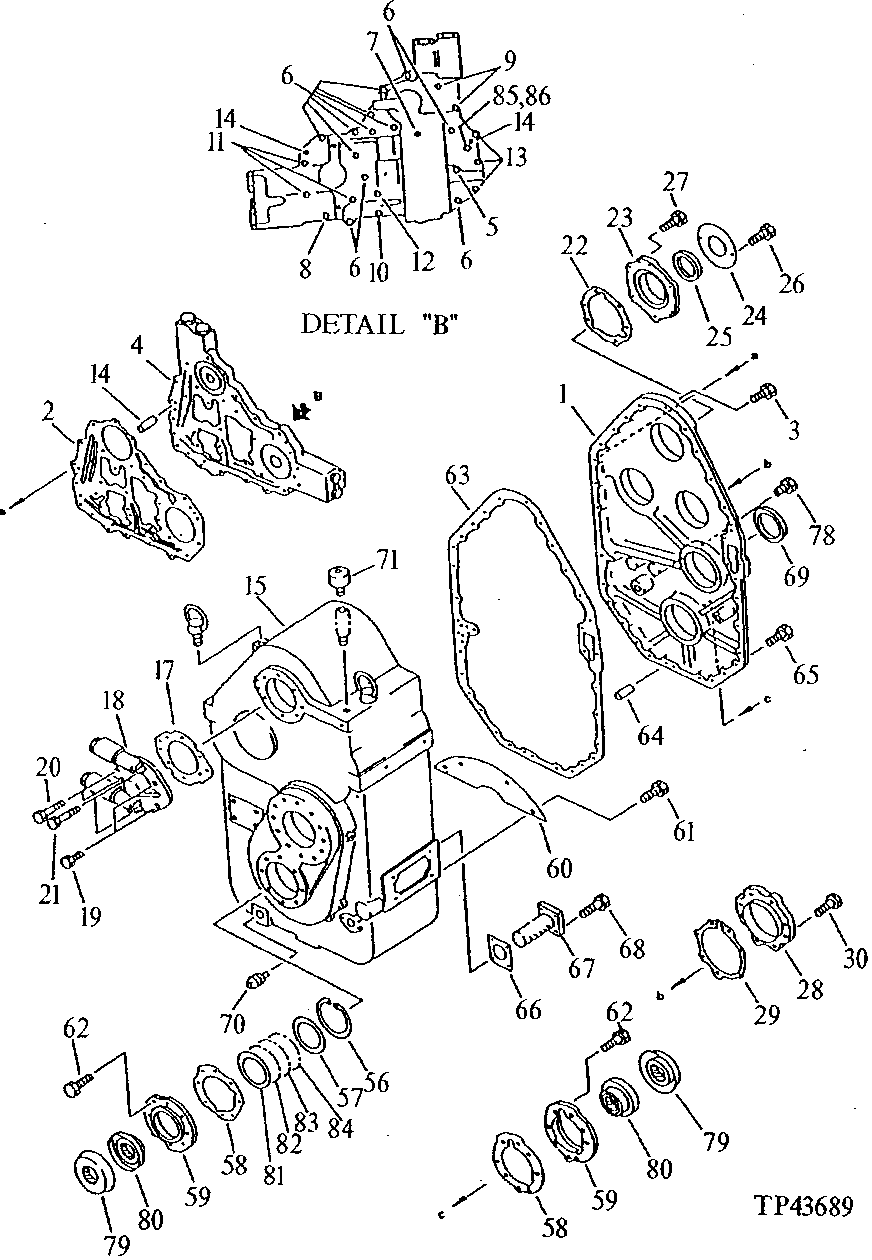

HOUSING, COVERS AND GASKETS (SERIAL NO. 000357- ) [01C21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT164275	1	COVER	-
2	AT164276	1	GASKET	-
3	19M7168	22	Cap Screw	M10 X 30
4	AT164277	1	COVER	-
5	AT136442	1	BOLT	-
6	19M7168	12	Cap Screw	M10 X 30
7	19M8574	1	Screw	M10 X 85
8	AT164278	1	BOLT	-
9	AT164279	2	BOLT	-
10	19M7358	1	Cap Screw	M10 X 40
11	T207759	3	Bolt	-
12	AT164280	1	BOLT	-
13	19M8081	3	Cap Screw	M10 X 80
14	AT138091	1	PIN	-
15	AT164281	1	HOUSING	-
17	AT164282	1	GASKET	-
18	AT164283	1	COVER	-
19	19M7403	2	Cap Screw	M12 X 35
20	19M7817	2	Screw	M12 X 70, (SUB FOR 19M7753)
21	AT164284	2	BOLT	-
22	AT136980	1	PACKING	-
23	AT136981	1	PLANET PINION CARRIER	-
24	AT136648	1	COVER	-
25	AT136982	1	SEAL	-
26	19M7557	2	Cap Screw	M10 X 16
27	19M7168	6	Cap Screw	M10 X 30
28	AT136983	1	COVER	-
29	AT136984	1	PACKING	-
30	19M7168	8	Cap Screw	M10 X 30
56	AT138190	1	SNAP RING	-
57	AT137003	1	WASHER	-
58	AT137005	2	PACKING	-
59	AT137006	2	PLANET PINION CARRIER	-
60	AT165161	1	SHROUD	(SUB FOR AT137007)
61	19M8324	4	Cap Screw	M10 X 16
62	19M7285	16	Cap Screw	M12 X 30
63	AT137008	1	PACKING	-
64	AT138091	4	PIN	-
65	19M7179	5	Cap Screw	M10 X 50
66	AT138093	1	PACKING	-
67	AT136649	1	STRAINER	-
68	19M7358	4	Cap Screw	M10 X 40
69	AT137009	1	WASHER	-
70	AT136561	1	PIPE PLUG	-
71	AT136589	1	BREATHER	-
78	AT138195	1	ADAPTER FITTING	-
79	AT138298	2	SEAL	-
80	AT138295	2	SEAL	-
81	AT138353	1	SHIM	-
82	AT138354	1	SHIM	-
83	AT138355	1	SHIM	-
84	AT138356	1	SHIM	-
85	19M7288	1	Cap Screw	M8 X 30
86	-	1	Part 54	( T11697 NO LONGER AVAILABLE) (FURNISH A-T11697 DIRECT FROM A&I PRODUCTS)

HOUSING, COVERS AND GASKETS (SERIAL NO. 000357- ) [01C21]
