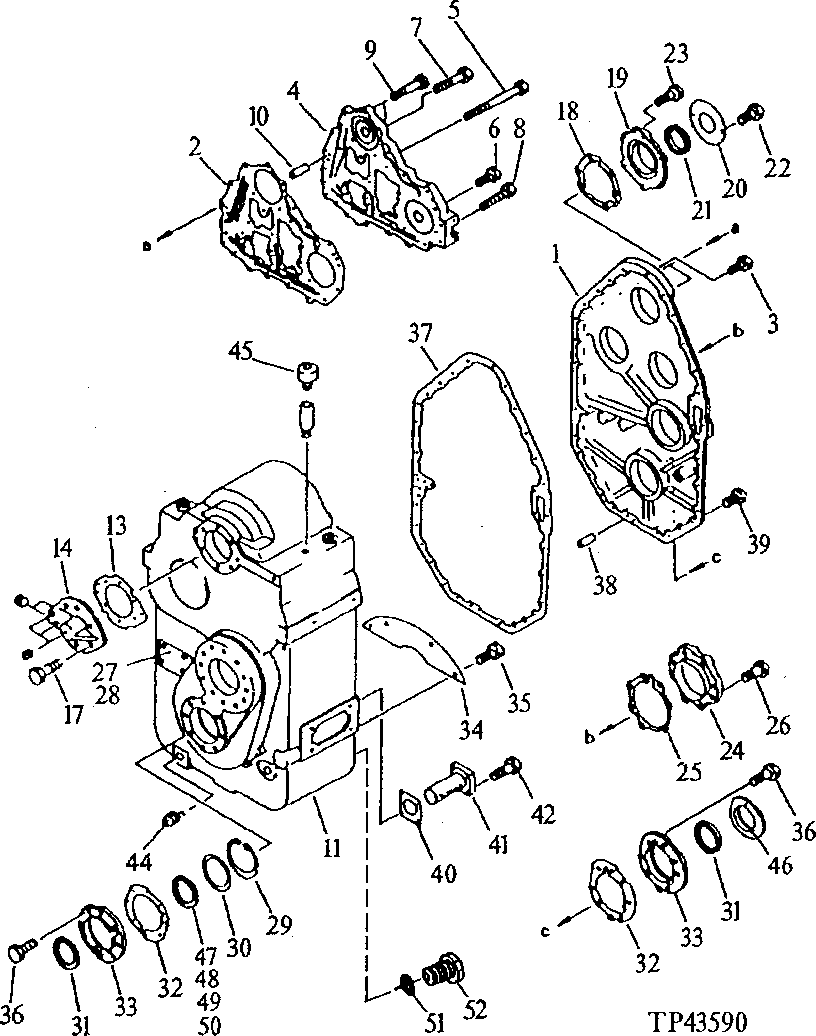

HOUSING, COVERS AND GASKETS (SERIAL NO. -000356) [01C19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT136974	1	COVER	-
2	AT136975	1	PACKING	-
3	19M7168	21	Cap Screw	M10 X 30
4	AT136976	1	COVER	-
5	AT136442	1	BOLT	-
6	19M7168	17	Cap Screw	M10 X 30
7	19M8574	1	Screw	M10 X 85
8	19M8499	1	Cap Screw	M10 X 60
9	19M8081	2	Cap Screw	M10 X 80
10	AT138091	2	PIN	-
11	AT136977	1	HOUSING	-
13	AT136978	1	PACKING	-
14	AT136979	1	COVER	-
17	19M7285	6	Cap Screw	M12 X 30
18	AT136980	1	PACKING	-
19	AT136981	1	PLANET PINION CARRIER	-
20	AT136648	1	COVER	-
21	AT136982	1	SEAL	-
22	19M8324	2	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
23	19M7168	6	Cap Screw	M10 X 30
24	AT136983	1	COVER	-
25	AT136984	1	PACKING	-
26	19M7168	6	Cap Screw	M10 X 30
29	AT138190	1	SNAP RING	-
30	AT137003	1	WASHER	-
31	AT138295	2	SEAL	(SUB FOR AT137004) (ALONG WITH AT138298) (OIL SEAL)
32	AT137005	2	PACKING	-
33	AT137006	2	PLANET PINION CARRIER	-
34	AT165161	1	SHROUD	(SUB FOR AT137007)
35	19M8324	4	Cap Screw	M10 X 16, (SUB FOR 19M7557, THIS APPLICATION)
36	19M7285	16	Cap Screw	M12 X 30
37	AT137008	1	PACKING	-
38	AT138091	4	PIN	-
39	19M7179	5	Cap Screw	M10 X 50
40	AT138093	1	PACKING	-
41	AT136649	1	STRAINER	-
42	19M7183	4	Cap Screw	M10 X 40
44	AT136561	1	PIPE PLUG	-
45	AT136589	1	BREATHER	-
46	AT138298	2	SEAL	(SUB FOR AT137004) (ALONG WITH AT138295) (ALSO SUB FOR AT138294)
46	AT138298	2	SEAL	(DUST SEAL)
47	AT138353	1	SHIM	0.2 THICK
48	AT138354	1	SHIM	0.5 THICK
49	AT138355	1	SHIM	1.0 THICK
50	AT138356	1	SHIM	0.1 THICK
51	AT163118	1	WASHER	-
52	AT163117	1	FITTING PLUG	-

HOUSING, COVERS AND GASKETS (SERIAL NO. -000356) [01C19]
