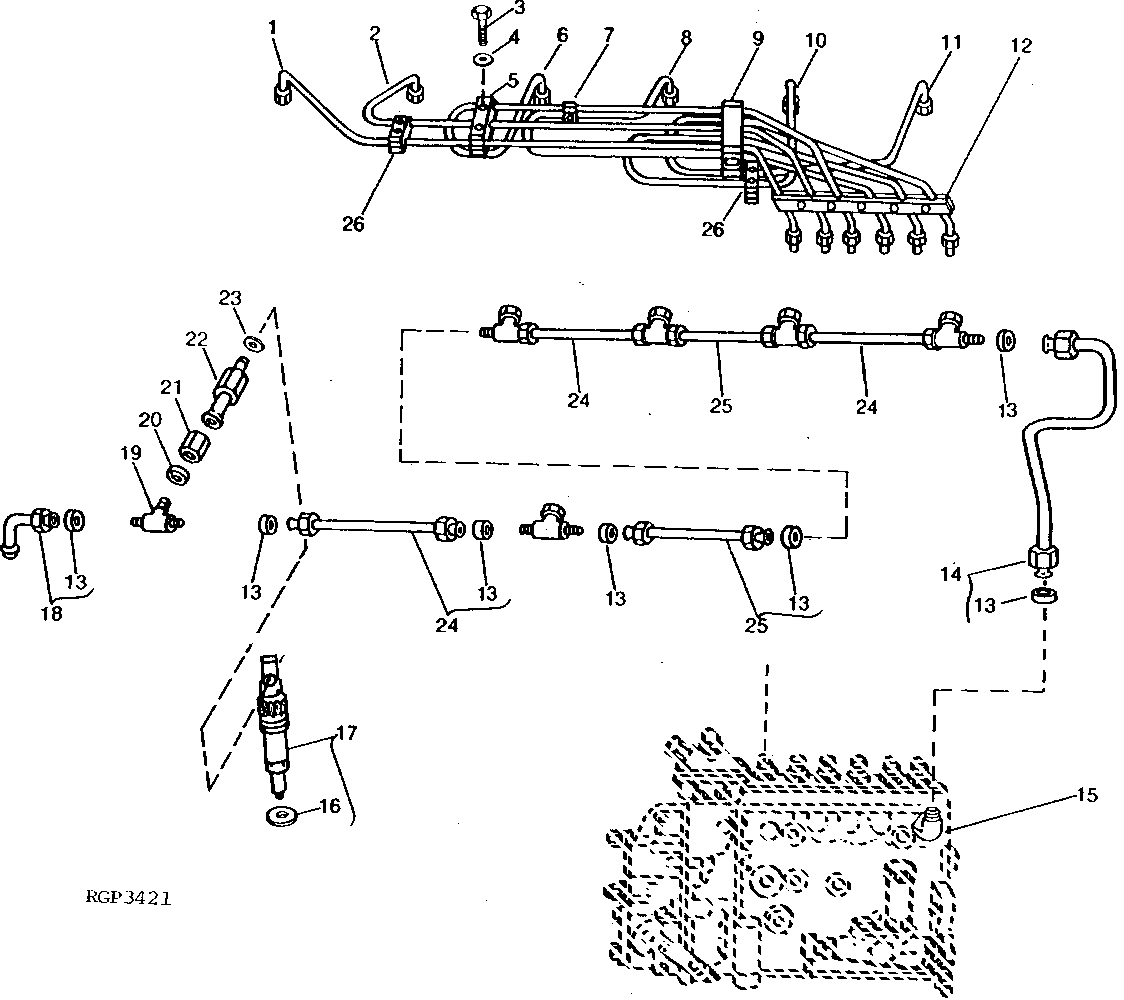

FUEL INJECTION NOZZLES AND FUEL LINES (ENGINE SERIAL NO. -104420) [01G23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE47721	1	Fuel Line	NO. 6, (SUB FOR RE13606)
2	RE47720	1	Fuel Line	NO. 5, (SUB FOR RE13605)
3	19H1849	2	Cap Screw	5/16" X 1-1/4"
4	12H303	2	Lock Washer	5/16"
5	R67197	2	Strap	-
5	R67195	1	Strap	-
5	R67196	2	Clamp	-
5	R67197	1	Strap	-
6	RE47719	1	Fuel Line	NO. 4, (SUB FOR RE13604)
7	R59305	1	Strap	-
7	21H1463	1	Cap Screw	0.190" X 7/8"
7	12M7060	1	Washer	5.300 MM
7	R58186	2	Clamp	-
7	R61144	1	Strap	-
8	RE47718	1	Fuel Line	NO. 3, (SUB FOR RE13603)
9	R74660	1	Absorber	(INNER)
9	R74661	1	Absorber	(OUTER)
10	RE47717	1	Fuel Line	NO. 2, (SUB FOR RE13602)
11	RE47716	1	Fuel Line	NO. 1, (SUB FOR RE13601)
12	21H1463	5	Cap Screw	0.190" X 7/8"
12	12M7060	5	Washer	5.300 MM
12	R58188	1	Clamp	-
12	R58189	1	Clamp	-
12	R59301	1	Reinforcement	-
13	R51936	13	Sealing Washer	-
14	RE42283	1	Fuel Line	-
15	R67364	1	Elbow Fitting	-
16	R64840	6	Washer	-
17	AR87495	6	NOZZLE HOLDER	-
17	SE500107	1	INJECTION NOZZLE REMAN	(A) PKG OF 6 (CALL 1-888-697-3626)
17	SE501116	1	INJECTION NOZZLE REMAN	(A) PKG OF 1 (CALL 1-888-697-3626)
18	RE16142	1	Fuel Line	-
19	R79606	6	Tee Fitting	-
20	R79605	6	Washer	-
21	R79604	6	Tube Nut	-
22	R89175	6	Fitting	(ALSO ORDER R77551)
23	R77551	6	O-Ring	-
24	RE11926	3	Fuel Line	-
25	RE11927	2	Fuel Line	-
26	R61145	2	Strap	-
26	R59297	4	Half Clamp	-
26	R59298	2	Strap	-
26	12M7060	4	Washer	5.300 MM
26	21H1463	4	Cap Screw	0.190" X 7/8"

FUEL INJECTION NOZZLES AND FUEL LINES (ENGINE SERIAL NO. -104420) [01G23]
