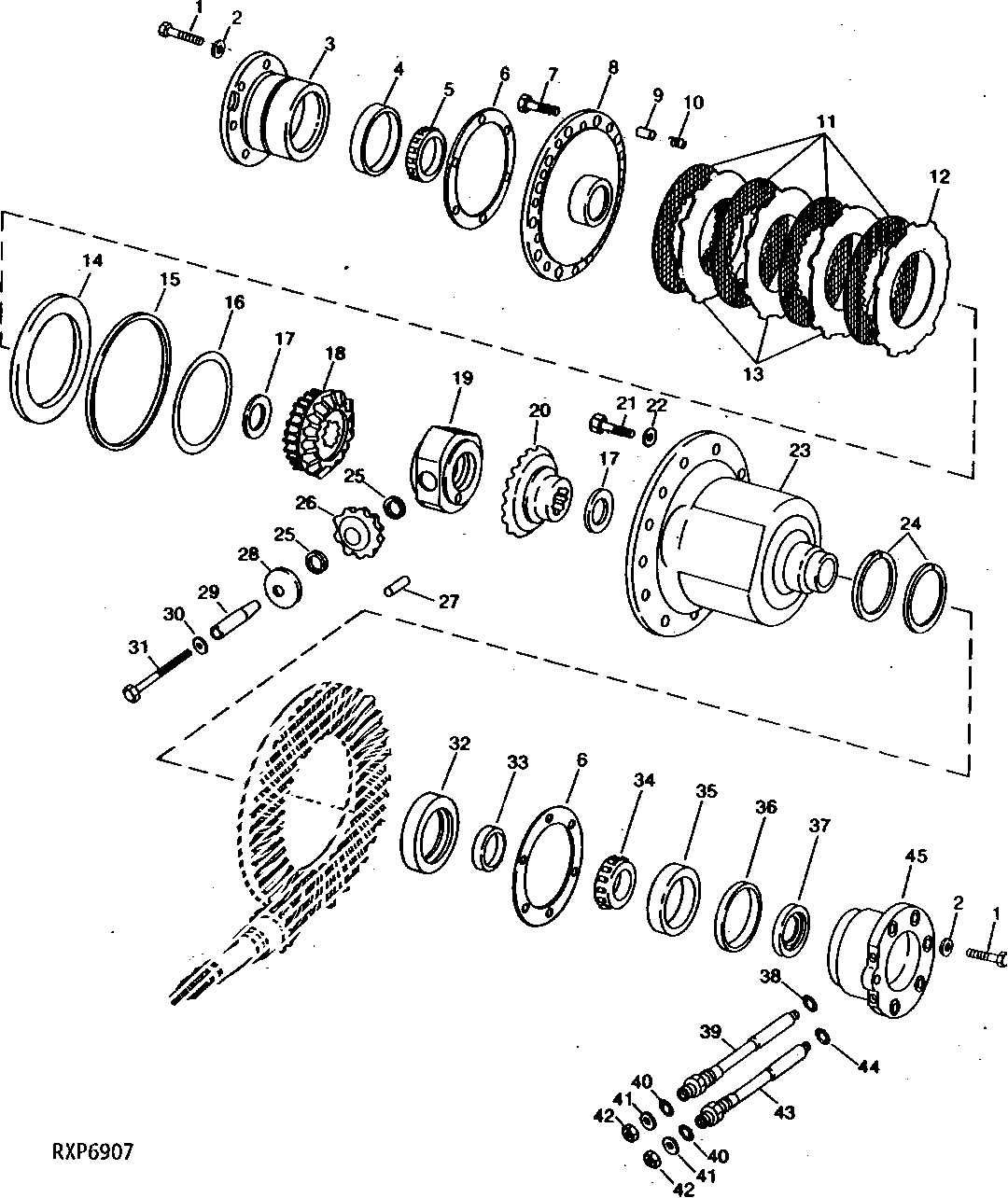

FRONT STANDARD DIFFERENTIAL (DIFFERENTIAL LOCK) [01B19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R112887	12	Bolt	(SUB FOR R86886)
2	R47172	12	Washer	-
3	R83644	1	Bearing Housing W/O Bearing	-
4	JD8298	1	Bearing Cup	-
5	JD8962	1	Bearing Cone	-
6	R35501	1	Shim	-
6	R35502	1	Shim	-
6	R35503	1	Shim	-
7	R121199	12	Screw	(SUB FOR R43369)
8	R94631	1	Cover	-
9	34H311	3	Spring Pin	1/4" X 7/8"
10	R41770	3	Spring	-
11	RE29429	4	Disk	WITH FACINGS
12	R43340	1	Plate	BACKING
13	R43343	3	Clutch Plate	SEPARATOR
14	R67045	1	Piston	-
15	R67046	1	Packing	-
16	R67047	1	Packing	-
17	R99466	2	Thrust Washer	(SUB FOR R72586)
18	R90869	1	Bevel Gear	LOCK, (SUB R112169 AND R112839)
19	R93019	1	Hub	PINION SHAFT, (SUB (3) R133584, R134268 AND (3) R131865)
20	R64257	1	Bevel Gear	(SUB R109489 AND R112839)
20	R109489	1	Bevel Gear	-
21	19H3718	12	Cap Screw	5/8" X 1-3/8"
22	R85226	12	Washer	-
23	RE32003	1	Housing	DIFFERENTIAL WITH BALLS, (MARKED R93201)
24	R93202	2	Ring	SEALING
25	R68167	6	Washer	-
26	R67784	3	Pinion	-
27	R55081	54	Needle Roller	-
28	R68166	3	Thrust Washer	-
29	R67782	3	Shaft	PINION, (SUB (3) R133584, R134268 AND (3) R131865)
30	R57696	3	Washer	-
31	R89837	3	Cap Screw	-
32	RE32979	1	SEAL	-
33	R93200	1	SLEEVE	WEAR
34	JD9019	1	BEARING CONE	-
35	JD8214	1	Bearing Cup	-
36	R93199	1	SLEEVE	WEAR
37	AR82993	1	Seal	-
38	R28782	1	O-Ring	-
39	R93196	1	FITTING	-
40	R93170	2	Packing	-
41	24H1139	2	Washer	11/16" X 1-1/4" X 0.105"
42	14H904	4	Nut	3/4"
43	R93197	1	FITTING	-
44	R26286	1	O-Ring	-
45	RE33994	1	BEARING HOUSING W/O BEARING	WITH BALLS, (MARKED R93198)
46	R68437	4	Plug	DIFF. CASE DIFF. LOCK HOLES (NOT ILLUSTRATED)

FRONT STANDARD DIFFERENTIAL (DIFFERENTIAL LOCK) [01B19]
