Открытый узел

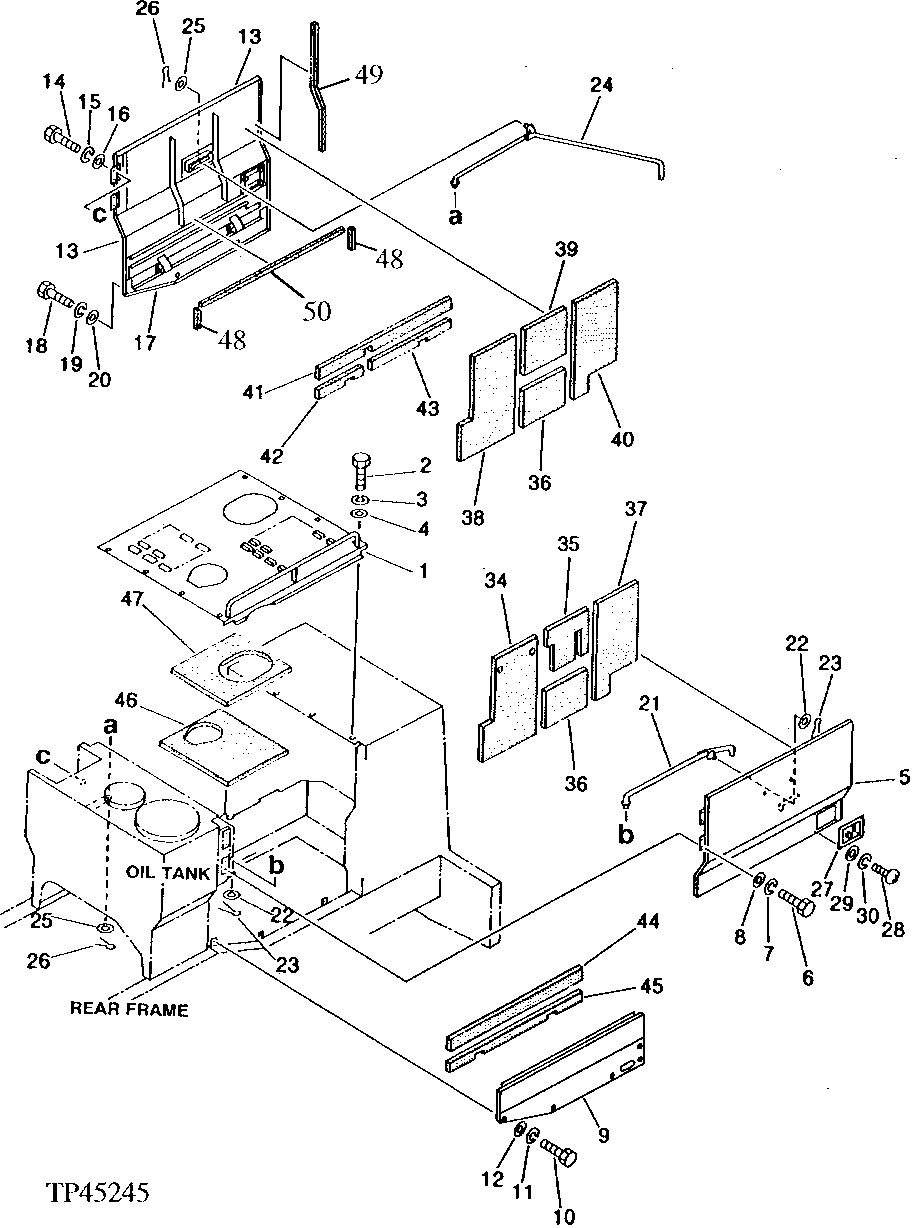

ENGINE SIDE SHIELDS AND FOAM [02J15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT137477	1	HOOD	-
2	19M7268	8	Cap Screw	M12 X 25
3	12M7067	8	Lock Washer	12 MM, (SUB FOR 12M6268)
4	R100105	8	Washer	-
5	AT137481	1	COVER	-
6	19M8011	4	Cap Screw	M12 X 30
7	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
8	R100105	4	Washer	-
9	AT137482	1	COVER	-
10	19M7166	5	Cap Screw	M10 X 20
11	12M6791	5	Lock Washer	10.200 MM
12	T82425	5	WASHER	-
13	AT137483	1	COVER	-
14	19M8011	4	Cap Screw	M12 X 30
15	12M7067	4	Lock Washer	12 MM, (SUB FOR 12M6268)
16	R100105	4	Washer	-
17	AT137484	1	COVER	-
18	19M7166	5	Cap Screw	M10 X 20
19	12M6791	5	Lock Washer	10.200 MM
20	T82425	5	WASHER	-
21	AT138122	1	SUPPORT	-
22	E42967	2	Washer	-
23	11M7083	2	Cotter Pin	3.200 X 50 MM
24	AT138123	1	SUPPORT	-
25	E42967	2	Washer	-
26	11H237	2	Cotter Pin	1/8" X 2"
27	AT137490	2	LOCK	-
28	-	8	Part 28	(SUB FOR T116325) (M8 X16 SCREW NOT AVAILABLE)
29	24M7055	8	Washer	8.400 X 16 X 1.600 MM, (SUB FOR L29966)
30	12M7065	8	Lock Washer	8 MM
34	AT137504	1	INSULATOR	(SUB FOR AT137500 - CUT TO FIT)
35	AT137504	1	INSULATOR	(SUB FOR AT137501 -CUT TO FIT)
36	AT137504	2	INSULATOR	(SUB FOR AT137502 - CUT TO FIT)
37	AT137504	1	INSULATOR	(SUB FOR AT137503 - CUT TO FIT)
38	AT137504	1	INSULATOR	-
39	AT137504	1	INSULATOR	(SUB FOR AT137505 - CUT TO FIT)
40	AT136704	1	FAN	-
41	AT137504	1	INSULATOR	(SUB FOR AT137507 -CUT TO FIT)
42	AT137504	1	INSULATOR	(SUB FOR AT137508 -CUT TO FIT)
43	AT137504	1	INSULATOR	(SUB FOR AT137509 -CUT TO FIT)
44	AT137504	1	INSULATOR	(SUB FOR AT137510 -CUT TO FIT)
45	AT137504	1	INSULATOR	(SUB FOR AT137511 -CUT TO FIT)
46	AT137504	1	INSULATOR	(SUB FOR AT137512 -CUT TO FIT)
47	AT137504	1	INSULATOR	(SUB FOR AT137513 -CUT TO FIT)
48	AT136586	2	WEATHERSTRIP	(SUB FOR AT137497 -CUT TO FIT)
49	AT136586	1	WEATHERSTRIP	(SUB FOR AT137498 -CUT TO FIT)
50	AT136586	1	WEATHERSTRIP	(SUB FOR AT137499 -CUT TO FIT)
