Открытый узел

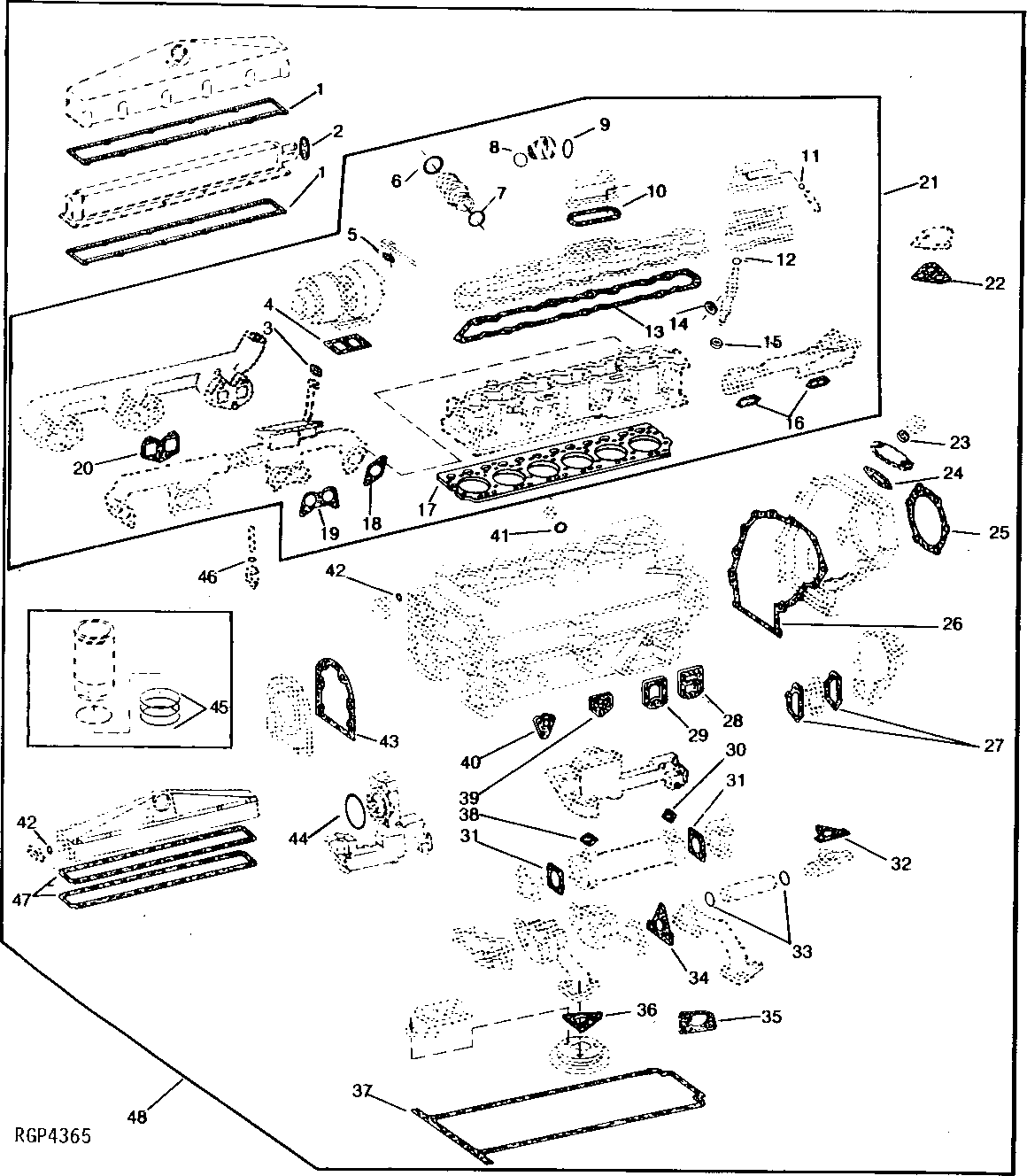

ENGINE GASKET SETS (ENGINE SERIAL NO. -104420) [01J08]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R100911	1	Seal	(USE WITH R100129)
2	R88993	2	Gasket	(USE WITH R100129)
3	R97349	1	GASKET	-
3	R75691	1	GASKET	(SUB FOR R58221)
4	R98235	1	Gasket	-
4	R49697	1	Gasket	-
5	R58222	1	GASKET	-
6	R57517	1	O-Ring	-
7	R49424	1	O-Ring	-
8	R49424	1	O-Ring	-
9	R50405	1	O-Ring	-
10	R49492	1	Gasket	-
11	R495R	1	O-Ring	-
12	R51603	6	O-Ring	-
13	R74365	1	GASKET	-
14	R77551	6	O-Ring	(USE WITH R89175)
14	R59294	1	SEALING RING	-
15	R64840	6	Washer	-
16	R88397	2	Gasket	(SUB FOR R42693)
17	RE34009	1	Engine Cylinder Head Gasket	(SUB FOR RE20305)
18	R80970	2	Gasket	(SUB (2) R86454 AND (2) R86455, THIS APPLICATION)
18	R86454	2	GASKET	-
19	R80969	2	Gasket	(SUB (2) R86454 AND (2) R86455, THIS APPLICATION)
19	R86455	2	GASKET	-
20	R40088	3	GASKET	-
21	RE37417	1	GASKET KIT	CYLINDER HEAD (THIS APPLICATION)
22	R81274	1	GASKET	-
23	T20328	1	Gasket	-
24	R520616	1	GASKET	(SUB FOR R82943)
25	R35349	1	GASKET	-
26	R49483	1	GASKET	-
27	R520542	1	GASKET	(SUB FOR R49495)
28	R44853	1	GASKET	(USE WITH R43851)
29	R82150	1	Gasket	(USE WITH R82149)
29	R114332	1	Gasket	(USE WITH R82149)
29	R62410	1	GASKET	(USE WITH R63285)
30	R49490	1	GASKET	-
31	R57504	2	Gasket	-
32	R69418	1	GASKET	-
33	R71732	2	O-Ring	-
34	R71312	1	GASKET	(USE WITH R74463)
34	R100569	1	Gasket	(USE WITH RE44118 OR RE60622)
35	R70475	1	GASKET	-
36	R74464	1	GASKET	(USE WITH AR77711)
37	RE509291	1	Gasket	(USE WITH ALUMINUM OIL PAN) (THICK) (SUB FOR R64828)
37	R71919	1	GASKET	(SUB FOR R61670) (USE WITH CAST IRON OIL PAN) (THIN)
38	R49491	1	GASKET	-
39	R49484	1	Gasket	-
40	R49485	1	Gasket	-
41	U13639	1	O-Ring	-
42	R47153	1	O-Ring	(SUB FOR R50420, THIS APPLICATION)
42	R47153	1	O-Ring	(TO AFTERCOOLER)
43	R35043	1	Gasket	-
44	R43660	1	Packing	-
45	AR72351	1	O-Ring Kit	(NO LONGER INCLUDED)
46	R72328	1	O-Ring	-
47	R53081	1	Gasket	(USE WITH R59071)
48	RE37416	1	GASKET KIT	ENGINE REBUILD (THIS APPLICATION)

ENGINE GASKET SETS (ENGINE SERIAL NO. -104420) [01J08]
