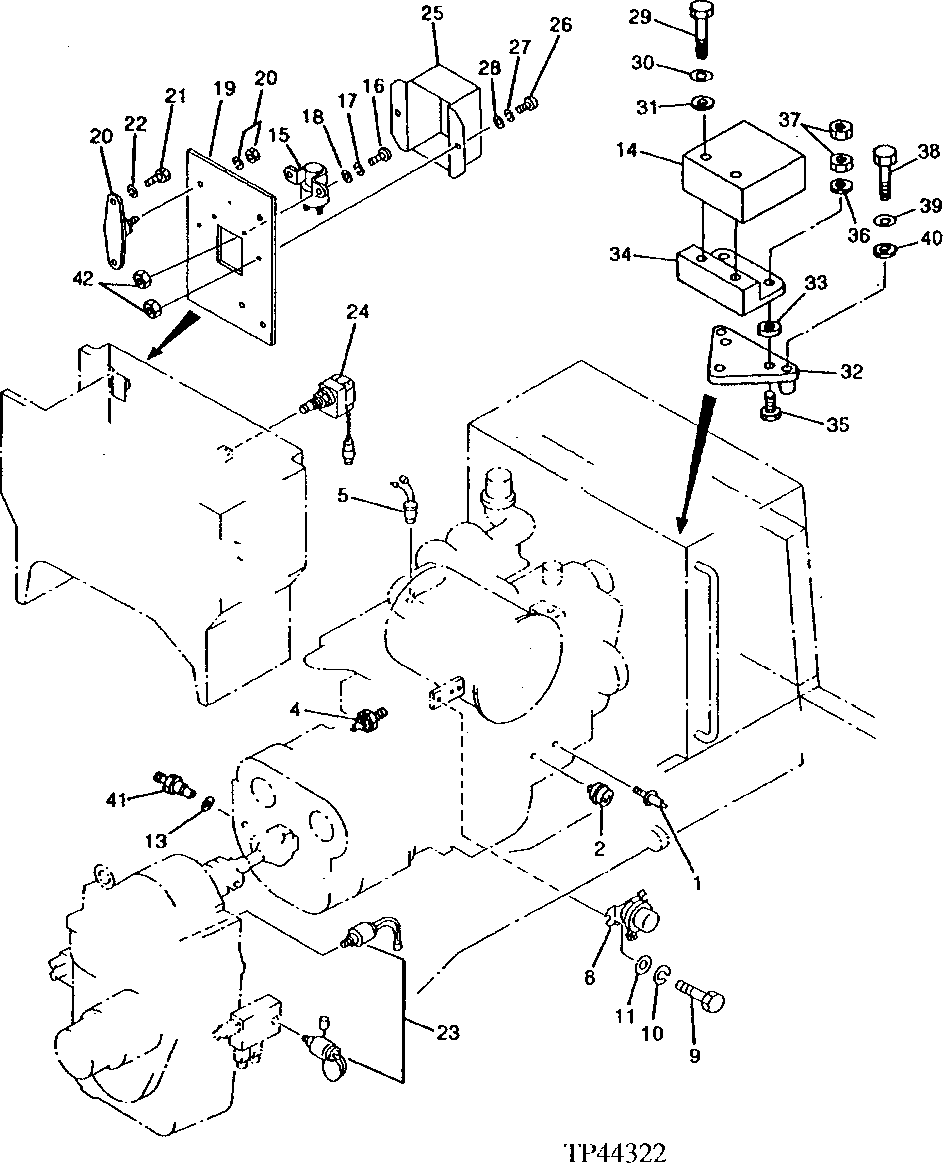

ENGINE FRAME RELAYS AND PRESSURE SWITCH [02G05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT85174	1	Switch	ENGINE OIL PRESSURE
2	AT157548	1	SWITCH	HOUR METER PRESSURE SWITCH, (SUB FOR AT157548)
2	37H90	2	Screw	(NOT SHOWN)
4	AR87693	1	SWITCH	ENGINE TEMPERATURE (CYLINDER HEAD)
5	AT334895	1	Indicator	(SUB FOR AT136523) (AIR RESTRICTION INDICATOR)
8	AT154229	1	RELAY	(SUB FOR AT136529) BATTERY DISCONNECT
9	19M7288	2	Cap Screw	M8 X 30
10	12M7065	2	Lock Washer	8 MM
11	24M7055	2	Washer	8.400 X 16 X 1.600 MM, (SUB FOR L29966)
13	AT136827	1	PACKING	-
14	AT78534	1	Travel Warning Alarm	-
15	AT136527	1	RELAY	STARTER
16	21M7246	2	Screw	M6 X 16
17	12M7006	2	Lock Washer	6 MM
18	24M7054	4	Washer	6.400 X 12 X 1.600 MM
19	AT136828	1	BRACKET	-
20	AT136552	3	RUBBER MOUNT	-
21	19M7560	6	Cap Screw	M6 X 16
22	12M7006	6	Lock Washer	6 MM
23	AT162761	2	PRESSURE SWITCH	TRANSMISSION/PARK BRAKE INDICATOR, (SUB FOR AT136829)
24	AT136830	1	SWITCH	HYDRAULIC FILTER RESTRICTION
25	AT136831	1	COVER	-
26	21M7246	2	Screw	M6 X 16
27	12M7006	2	Lock Washer	6 MM
28	24M7054	2	Washer	6.400 X 12 X 1.600 MM
29	19M7296	2	Cap Screw	M8 X 100
30	12M7065	2	Lock Washer	8 MM
31	24M7055	2	Washer	8.400 X 16 X 1.600 MM
32	AT138185	1	BRACKET	-
33	AT136837	3	RUBBER MOUNT	-
34	AT138186	1	BRACKET	-
35	19M7183	3	Cap Screw	M10 X 40
36	T82425	6	WASHER	-
37	14M7294	6	Nut	M10
38	19M8499	2	Cap Screw	M10 X 60
39	12M6791	2	Lock Washer	10.200 MM
40	24M7028	2	Washer	10.500 X 20 X 2 MM
41	AT103587	1	Sensor	(TRANS TEMP)
42	14M7272	4	Nut	M6
