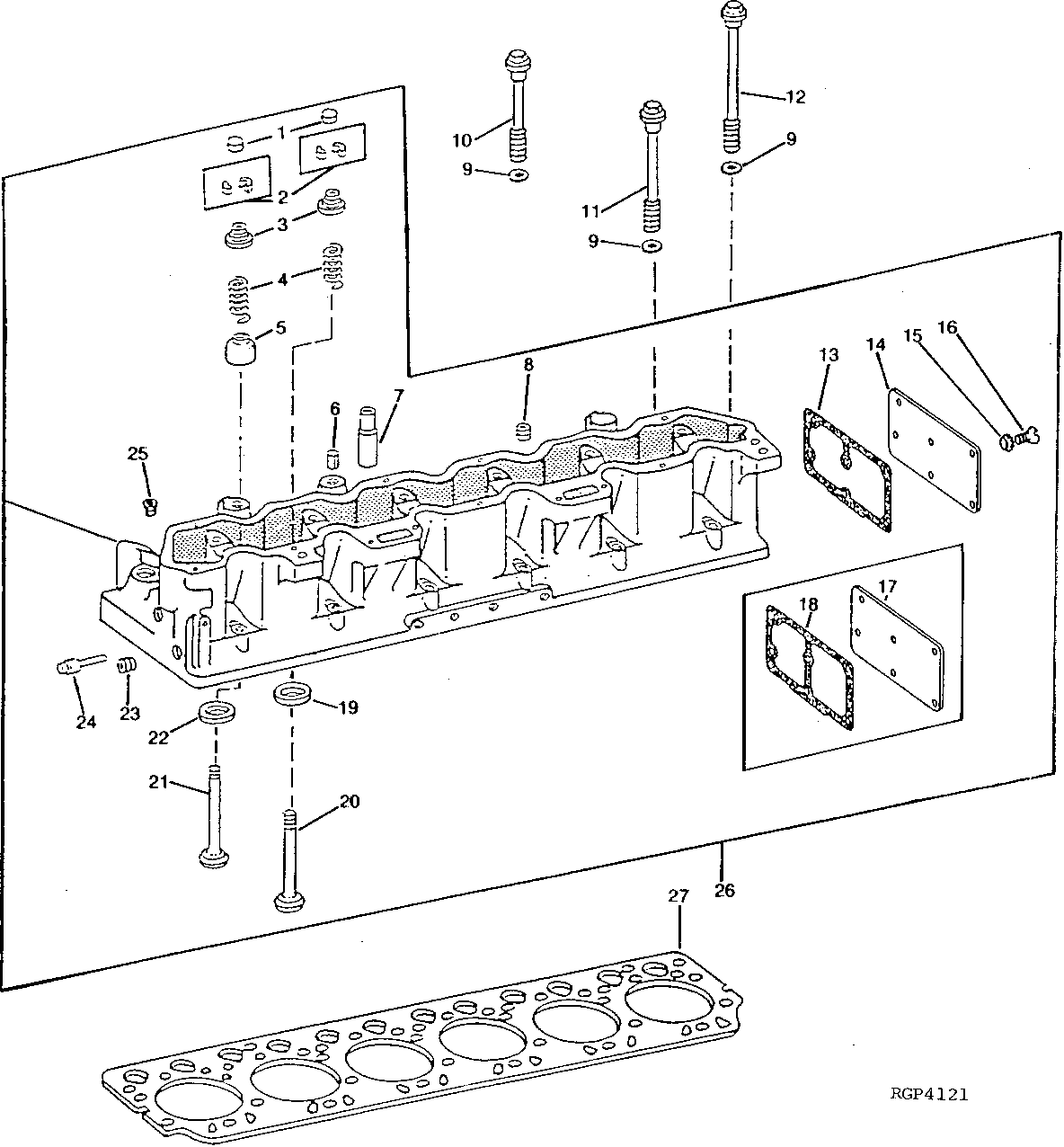

CYLINDER HEAD AND VALVES (ENGINE SERIAL NO. 500000-503793) [01G17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20129	12	Cap	-
2	T20077	24	Retainer	-
3	RE11410	12	Rotator	-
4	R91822	12	Spring	-
5	R102882	6	Shield	(EXHAUST ONLY)
6	34H387	1	Spring Pin	3/16" X 3/4"
7	R108988	12	Bushing	-
8	RE57836	5	Pipe Plug	1/2", (SUB FOR 15H624)
9	R70268	26	Washer	-
10	R80575	6	Cap Screw	-
11	R80576	17	Cap Screw	-
12	R80577	3	Cap Screw	-
13	R120293	1	Gasket	-
14	R120292	1	Cover	-
15	12H324	6	WASHER	3/8"
16	N61345	6	Screw	-
17	R105026	1	Cover	(SUB R120293, R120292 AND (6) 12H324)
18	R105027	1	Gasket	(SUB R120293, R120292 AND (6) 12H324)
19	R102860	6	Valve Seat Insert	STD (INTAKE)
19	R108989	1	Valve Seat Insert	0.25 MM (.010") OS (INTAKE)
20	R101304	6	Intake Valve	-
21	R101305	6	Exhaust Valve	-
22	R102859	6	Valve Seat Insert	STD (EXHAUST)
22	R108990	6	Valve Seat Insert	0.25 MM (.010") OS (EXHAUST)
23	15H690	1	Pipe Plug	3/4"
24	AT107509	2	Plug	6.3 MM
25	15H584	2	Pipe Plug	1/2"
26	RE46275	1	Cylinder Head	(MARKED R104737) (SUB RE60522)
26	RE56477	1	Cylinder Head	(MARKED R119814) (SUB FOR RE55009) (SUB RE60522)
26	SE501223	1	Cylinder Head	(REMANUFACTURED FOR RE60522)
27	RE34009	1	Engine Cylinder Head Gasket	-
