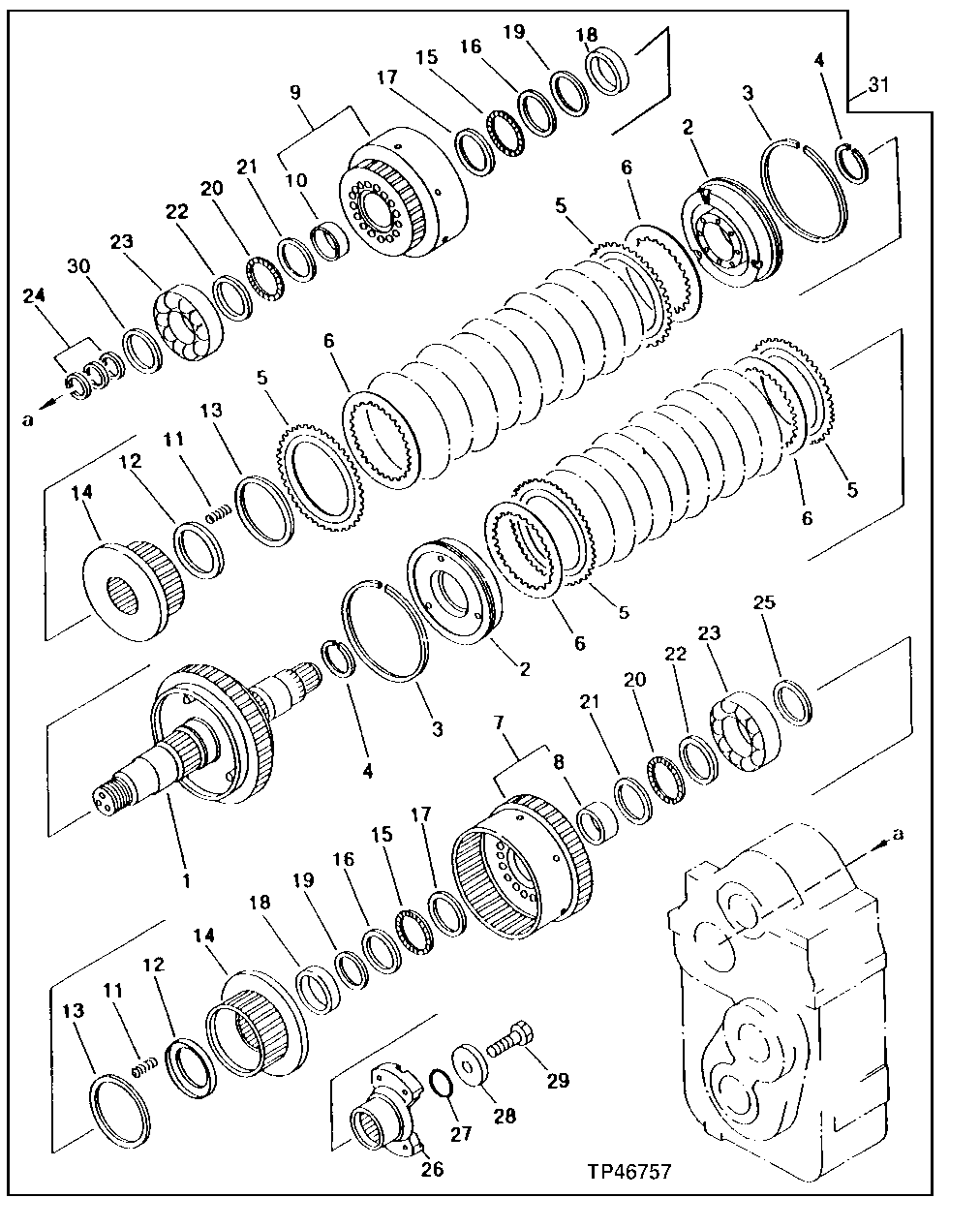

CLUTCH ASSEMBLY (1-3, 2-4 REVERSE CLUTCH PACKS) (SERIAL NO. -000499) [01C23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT164247	1	SHAFT	-
1	AT137021	1	SHAFT	-
2	AT164244	2	PISTON	-
2	AT137022	2	PISTON	-
3	AT136564	2	RING	-
4	AT136565	2	RING	-
5	3052906	14	PLATE	(SUB FOR AT136568)
5	3052906	16	PLATE	(SUB FOR AT136568)
6	AT138096	14	PLATE	-
6	AT138096	16	PLATE	-
7	AT137024	1	GEAR	-
8	AT137025	1	BUSHING	-
9	AT137026	1	GEAR	-
10	AT137025	1	BUSHING	-
11	AT136566	16	SPRING	-
11	AT136566	36	SPRING	-
12	AT136567	2	WASHER	-
13	AT136570	2	SNAP RING	-
14	AT136569	2	HUB	-
14	AT164245	2	HUB	-
15	JD9886	2	Thrust Bearing	(SUB FOR AT136572)
16	AT165831	2	THRUST WASHER	(SUB FOR AT137027)
16	AT137027	2	THRUST WASHER	( AT137027 NO LONGER AVAILABLE) (SUB AT165831 AND AT165832)
17	AT137028	2	BEARING RACE	-
18	AT137029	2	BUSHING	( AT137029 NO LONGER AVAILABLE) (SUB AT165832 AND AT165831)
18	AT165832	2	BUSHING	(SUB FOR AT137029)
19	AT136571	2	SNAP RING	(ALSO ORDER AT165831 AND AT165832 THRUST WASHERS IF BEFORE SERIAL NO. 000375)
20	JD9886	2	Thrust Bearing	(SUB FOR AT136572)
21	AT137028	2	BEARING RACE	-
22	AT137030	2	THRUST WASHER	-
23	AT137031	2	BALL BEARING	-
24	AT137032	3	RING	-
25	AT137033	1	WASHER	-
26	AT137034	1	FLANGE	-
27	B3685R	1	O-Ring	(SUB FOR AT136518)
28	AT136519	1	WASHER	-
29	T116284	1	BOLT	(SUB FOR AT136449)
30	AT167663	1	SHIM	-
31	AT137020	1	CLUTCH	(CONVENIENCE ASSEMBLY)
31	AT164527	1	CLUTCH	(CONVENIENCE ASSEMBLY)

CLUTCH ASSEMBLY (1-3, 2-4 REVERSE CLUTCH PACKS) (SERIAL NO. -000499) [01C23]
