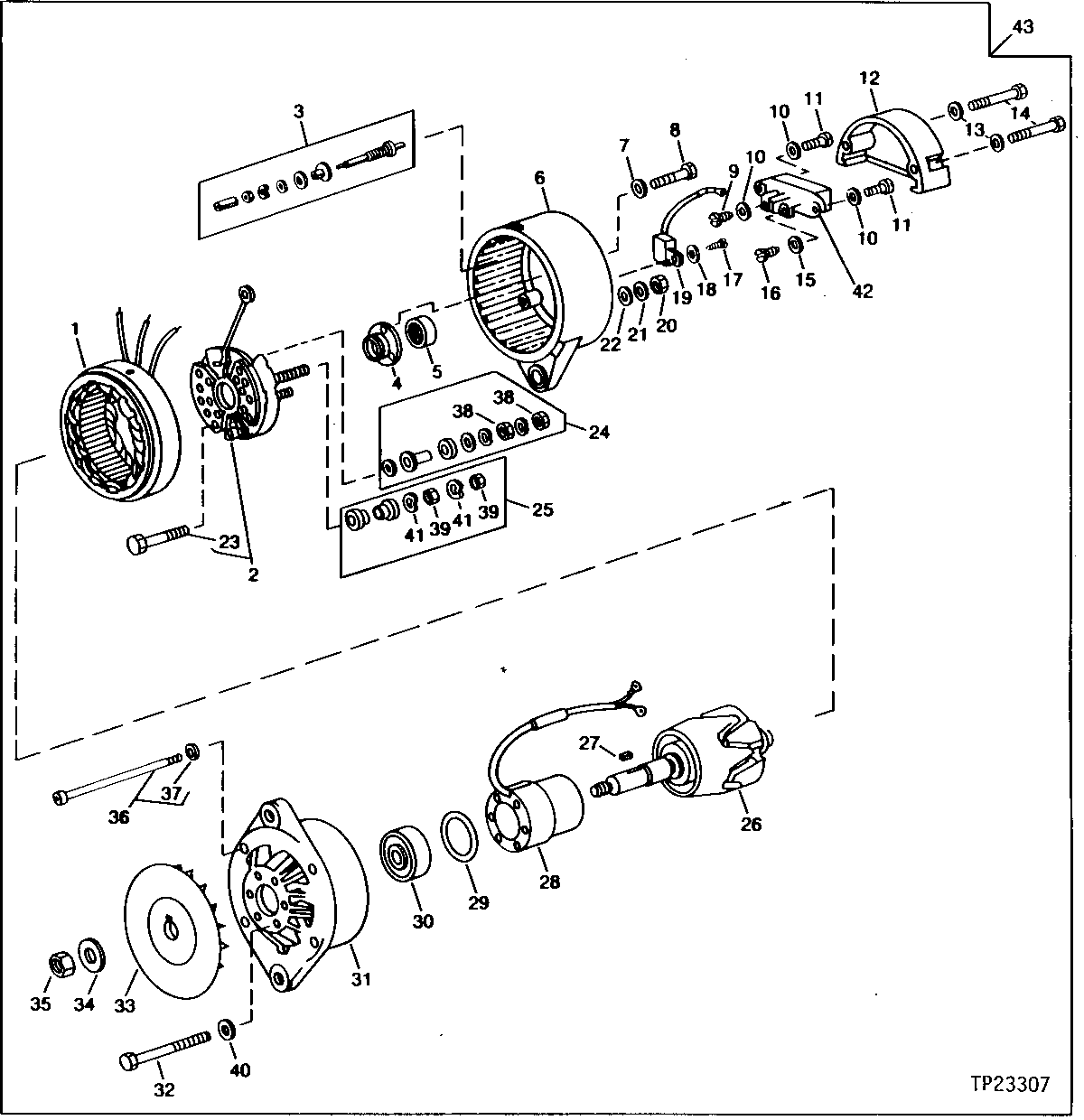

ALTERNATOR (50 AMP) (24-VOLT) (ROBERT BOSCH NO. 0122469004) (ENGINE SERIAL NO. 500000- ) [02F08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	( AT106917 NLA)
2	-	1	Part 2	( AT106918 NLA)
3	AT106925	1	Alternator Kit	"R" TERMINAL
4	AT106914	1	Cover	-
5	JD10378	1	Cylindrical Roller Bearing	-
6	-	1	Part 6	( AT106919 NLA)
7	12M7063	3	Lock Washer	4 MM
8	21M7135	3	SCREW	M4 X 25
9	21M1247	1	Screw	M4 X 8
10	12M7063	3	Lock Washer	4 MM
11	21M7171	2	Screw	M4 X 18
12	AT106922	1	Cover	-
13	12M7064	2	Lock Washer	5 MM
14	21M7143	2	Screw	M5 X 30
15	12M7064	1	Lock Washer	5 MM
16	21M7198	1	Screw	M5 X 8
17	21M7144	1	Screw	M6 X 10
18	12M7063	1	Lock Washer	4 MM
19	AT106920	1	Capacitor	-
20	14M7297	2	Nut	M5, B- GROUND TERMINAL
21	12M7075	2	Washer	5.300 X 11 X 0.500 MM, B- GROUND TERMINAL
22	24M7138	2	Washer	5.300 X 15 X 1.200 MM, B- GROUND TERMINAL
23	Z42049	1	SCREW	-
24	AT106924	1	Alternator Kit	D+ TERMINAL
25	AT106923	1	Alternator Kit	B+ TERMINAL
26	AT106913	1	Rotor	-
27	26M4224	1	Shaft Key	4 X 16 MM
28	-	1	Part 28	( AT106912 NLA)
29	T104211	1	Ring	-
30	JD10379	1	Ball Bearing	-
31	-	1	Part 31	( AT106915 NLA)
32	21M7333	6	SCREW	M4 X 45
33	T104212	1	Fan	-
34	24M7048	1	Washer	15.500 X 28 X 2.500 MM
35	K40015	1	Lock Nut	-
36	AT106916	4	Screw	-
37	24M7027	4	Washer	5.300 X 10 X 1 MM
38	14M7100	2	Nut	M4
39	14H1059	1	Nut	7/16"
40	12M7063	1	Lock Washer	4 MM
41	12M1646	2	Washer	13 X 24 X 1.200 MM
42	AT106921	1	Regulator	-
43	TY25949	1	ALTERNATOR	(SUB FOR AT85458 OR TY6681, THIS APPLICATION)
43	SE501345	1	Alternator Reman	(REMANUFACTURED FOR TY25949)
