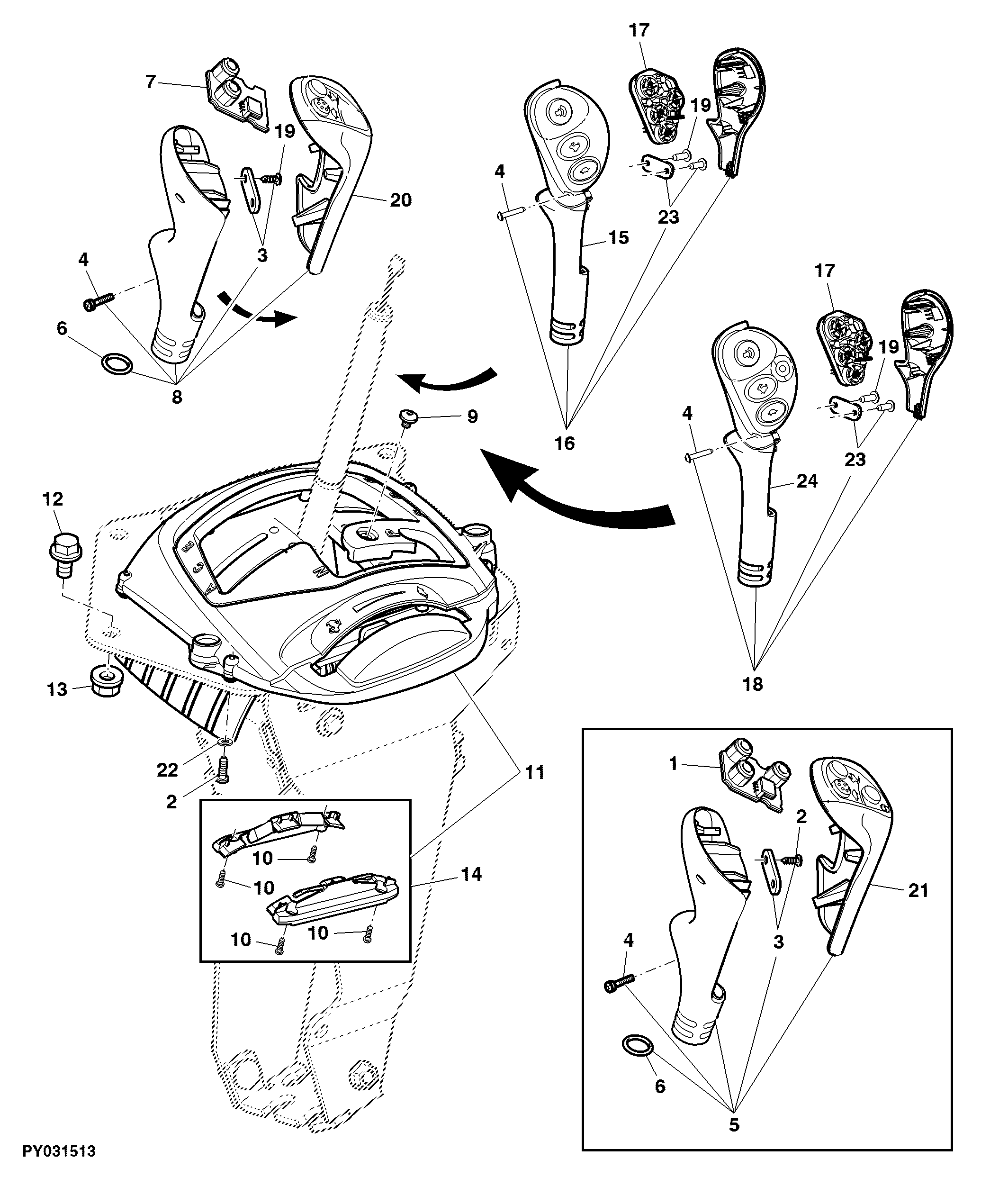

RANGE SHIFT COMPONENTS (POWRQUAD PLUS OR AUTOQUAD PLUS)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L158462	1	Switch	AUTOQUAD PLUS
2	37M7179	1	Screw	-
3	AL163484	1	Clamp	(ORD AL201259)
4	37M7389	3	Screw	-
5	AL162802	1	Grip	AUTOQUAD PLUS
6	L53890	1	O-Ring	-
7	L168076	1	Switch	POWRQUAD PLUS
8	AL167625	1	Grip	POWRQUAD PLUS
9	19M9260	1	Screw	M5 X 6
10	37M7179	4	Screw	-
11	AL177574	1	Guide	(WITH 4 RANGES)
11	AL177572	1	Guide	(WITH 6 RANGES)
12	19M7865	3	Screw	M8 X 16
13	14M7416	3	Flange Nut	M8
14	AL162791	1	Guide	-
15	AL182043	1	Knob	(WITH HAND CLUTCH) POWRQUAD PLUS (SUB FOR AL181000)
16	AL179241	1	Grip	(WITH HAND CLUTCH) POWRQUAD PLUS
17	AL181690	1	Switch	(WITH HAND CLUTCH) ORDER AL218978; SUB FOR AL178545
17	AL218978	1	Switch	-
18	AL179242	1	Grip	(WITH HAND CLUTCH) AUTOQUAD PLUS
19	37M7348	2	Screw	(WITH HAND CLUTCH)
20	AL162998	1	Grip	PowrQuad™ PLUS; NLA; ORDER AL208095
20	AL208095	1	Grip	PowrQuad™ PLUS
21	AL162999	1	Grip	AutoQuad™ PLUS; NLA; ORDER AL208096
21	AL208096	1	Grip	AutoQuad™ PLUS
22	24M7146	4	Washer	4.300 X 12 X 1 mm
23	AL201259	1	Clamp	(WITH HAND CLUTCH)
24	AL182044	1	Knob	(WITH HAND CLUTCH) AUTOQUAD PLUS (SUB FOR AL181001)
..	AL176040	1	Converter Kit	(CONVERSION KIT FROM POWRQUAD PLUS TO AUTOQUAD PLUS ( W/O DECLUTCH SWITCH )) FI
..	AL177668	1	Converter Kit	(CONVERSION KIT FROM POWRQUAD PLUS W/O DECLUTCH SWITCH TO AUTOQUAD PLUS W/ DECLUTCH SWITCH) FI
..	AL177667	1	Converter Kit	(CONVERSION KIT FROM POWRQUAD PLUS W/ DECLUTCH SWITCH TO AUTOQUAD PLUS W/ DECLUTCH SWITCH) FI

RANGE SHIFT COMPONENTS (POWRQUAD PLUS OR AUTOQUAD PLUS)

Нет текстового описания
