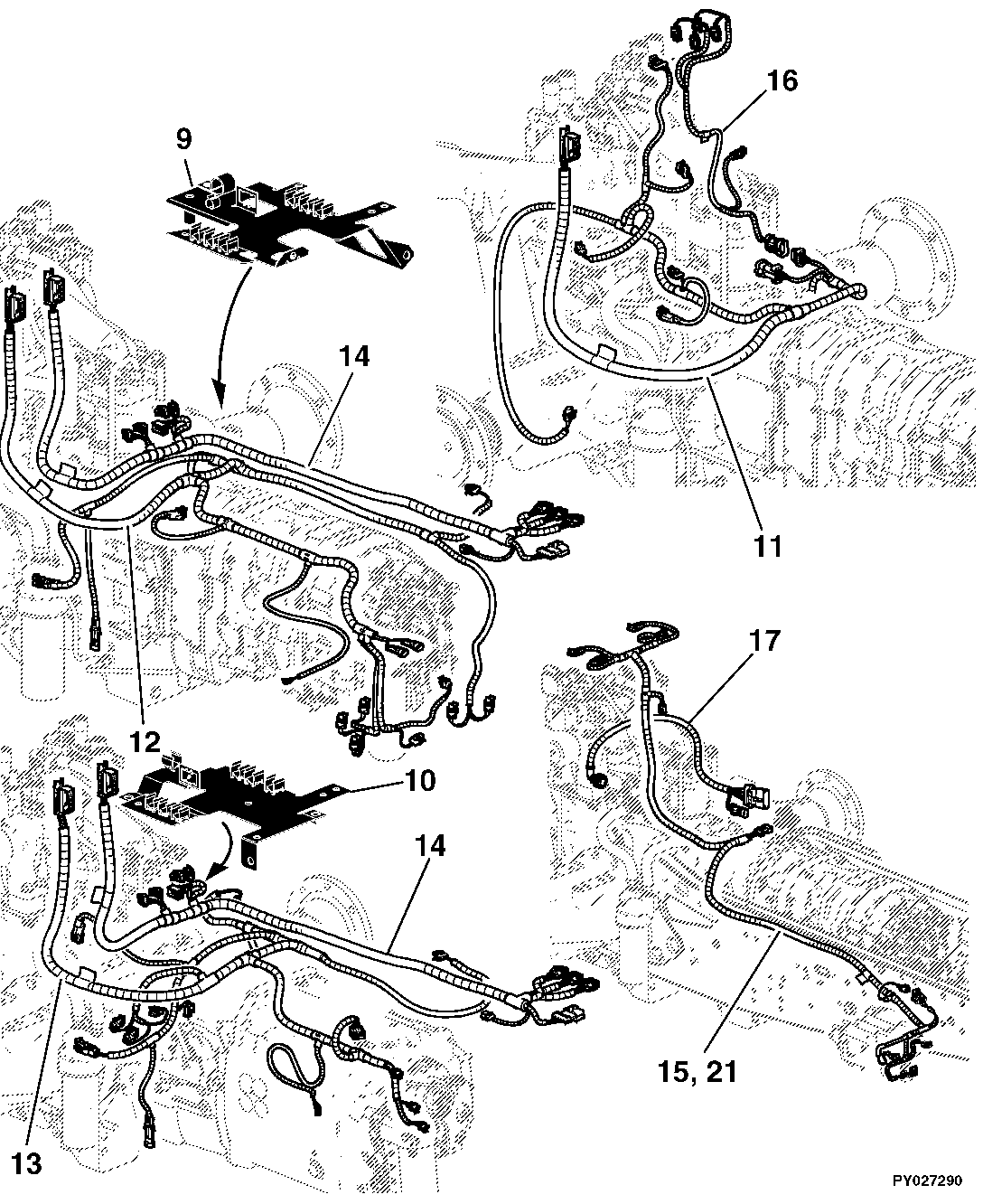

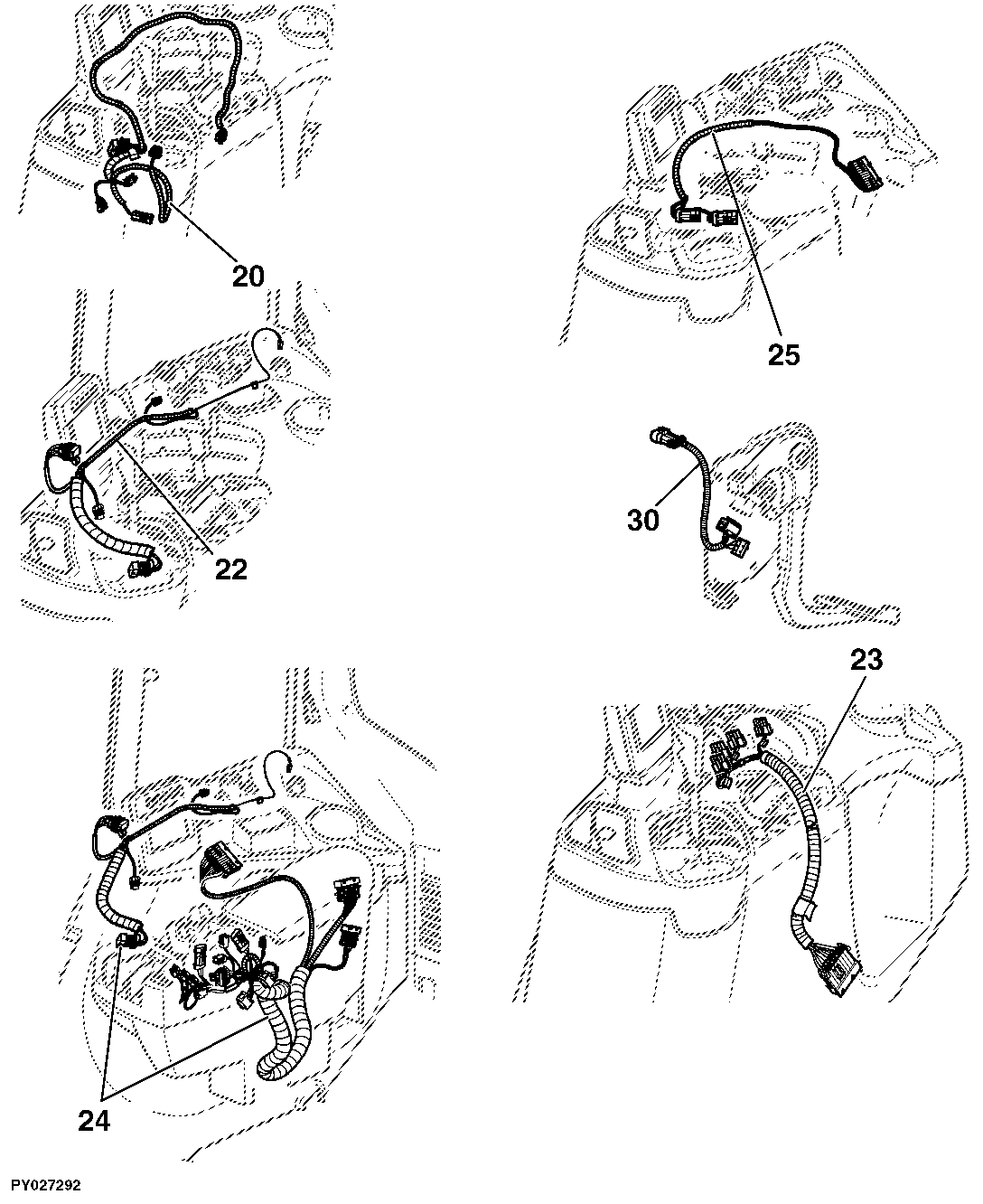

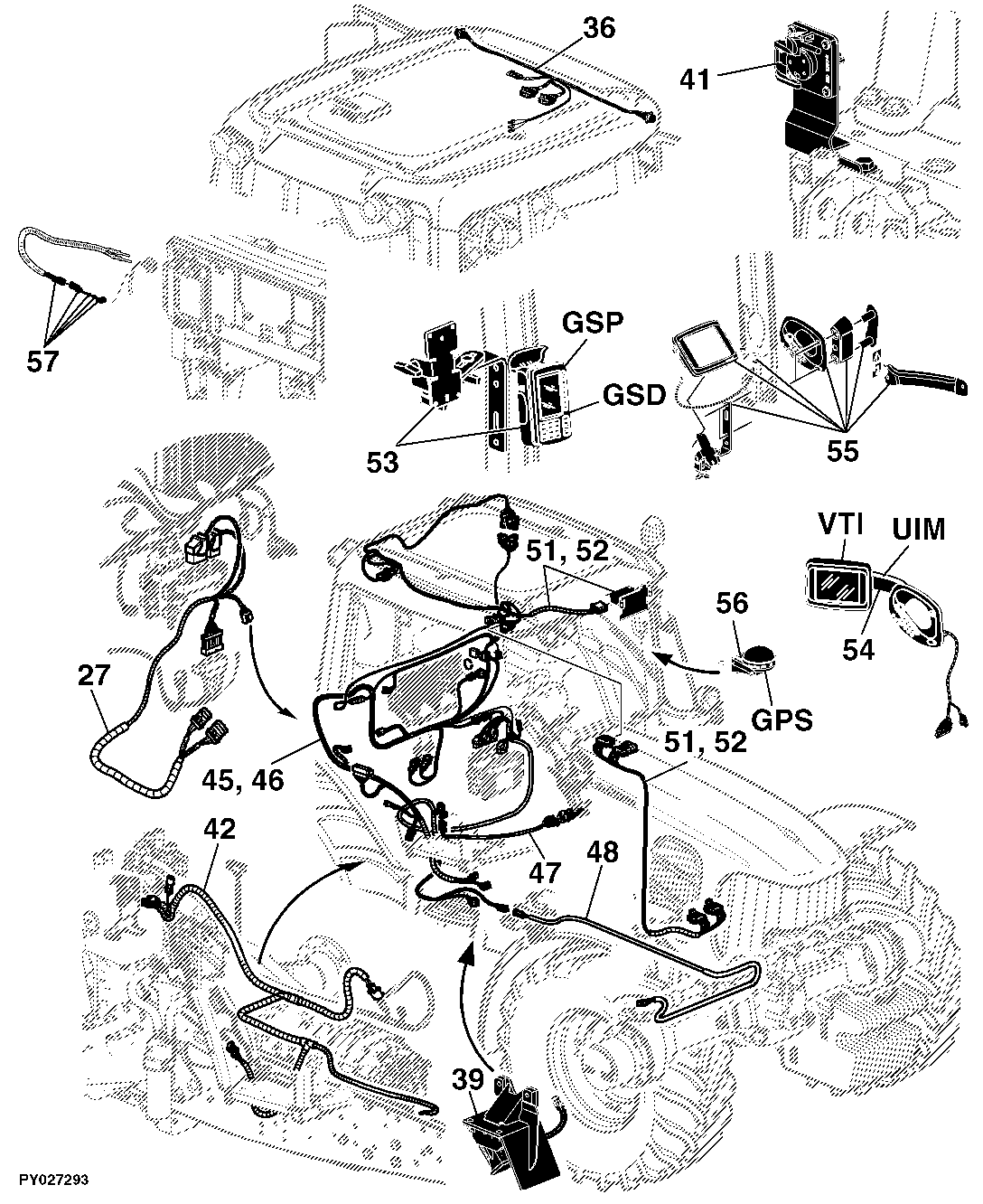

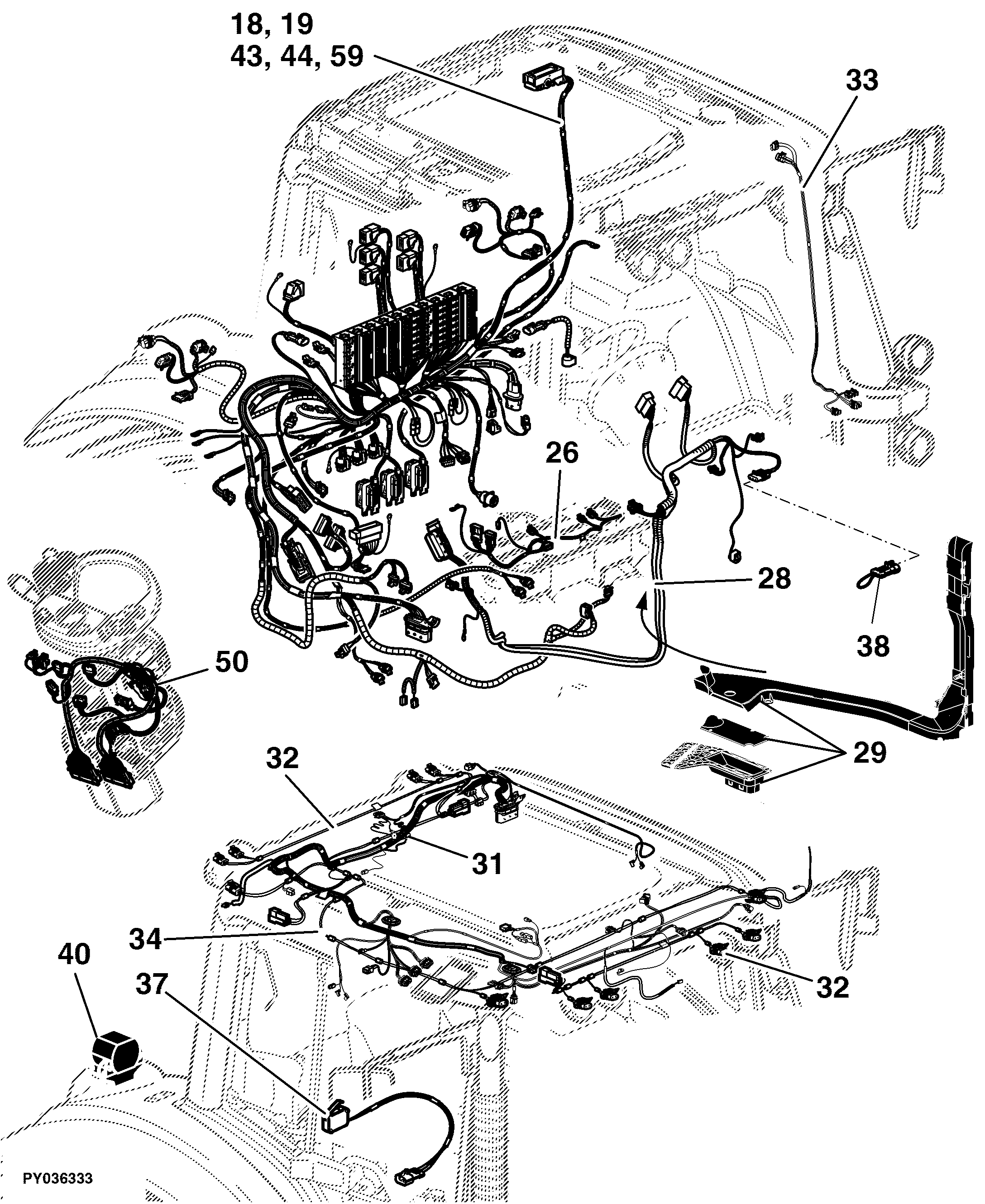

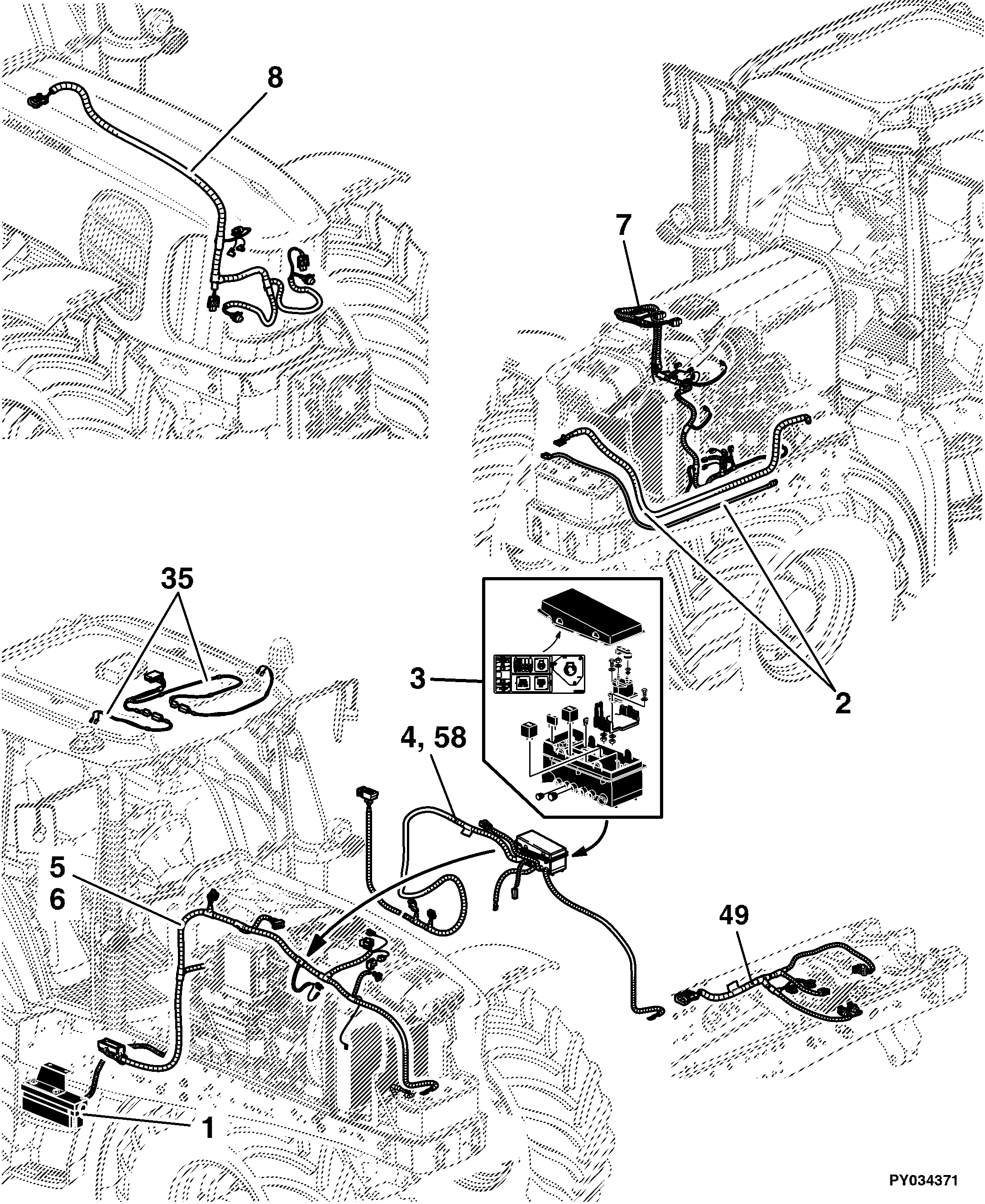

42 ELECTRICAL COMPONENTS / WIRING HARNESSES AND PRECISION FARMING EQUIPMENT

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	WIRING HARNESS, HEADLIGHTS OR WORKLIGHTS, IN FRONT	-
-	-	1	TRANSMISSION HARNESS (REAR)	-
-	-	1	TRANSMISSION HARNESS, FOR POWRQUAD PLUS AND AUTOQUAD PLUS	-
-	-	1	WIRING HARNESS / GPS CONSOLE AND GREENSTAR DISPLAY 2100	-
-	-	1	WIRING HARNESS / GPS CONSOLE AND GREENSTAR DISPLAY 4	-
-	-	1	WIRING HARNESS AND GUARD FOR STEERING ANGLE SENSOR, AUTOTRAC	-
-	-	1	WIRING HARNESS FIXTURE (JD IVT)	-
-	-	1	WIRING HARNESS FIXTURE (POWRQUAD PLUS OR AUTOQUAD PLUS)	-
-	-	1	WIRING HARNESS, AUTOTRAC	-
-	-	1	WIRING HARNESS, CAB ROOF	-
-	-	1	WIRING HARNESS, COMMANDCENTER DTI, SWITCHMODULE DSM (CONSOLE SHIFT)	-
-	-	1	WIRING HARNESS, ELECTRICALLY ADJUSTED MIRROR	-
-	-	1	WIRING HARNESS, ELECTRO-HYDRAULIC CONTROL BLOCKS	-
-	-	1	WIRING HARNESS, HAZARD WARNING LIGHTS AND TURN SIGNALS 0F CAB ROOF	-
-	-	1	WIRING HARNESS, HEADLIGHTS AND WORKLIGHTS (FRONT GRILLE)	-
-	-	1	TRANSM. WIRING HARNESS FOR JD IVT	-
-	-	1	WIRING HARNESS, HEATING AND AIRCONDITIONING	-
-	-	1	WIRING HARNESS, ISOBUS WITHOUT TEC CONTROL UNIT	-
-	-	1	WIRING HARNESS, JD-IVT, COMMANDCENTER DTI, SWITCHMODULE DSM (COMMAND ARM)	-
-	-	1	WIRING HARNESS, MFWD AXLE WITH TLS	-
-	-	1	WIRING HARNESS, POWER-ASSISTED PTO SHIFTING (PAPTOS)	-
-	-	1	WIRING HARNESS, POWERQUAD PLUS / AUTOQUAD PLUS SHIFTING (CONSOLE SHIFT)	-
-	-	1	WIRING HARNESS, PTO WITHOUT ROCKSHAFT (CONSOLE SHIFT)	-
-	-	1	WIRING HARNESS, SWITCH FOR REAR WINDOW	-
-	-	1	WIRING HARNESS, TEC CONTROL UNIT WITH AUTOTRAC	-
-	-	1	WIRING HARNESS, W/ AND W/O ELECTRONIC POWER MODULE (PC5)	-
-	-	1	WIRING HARNESS, WITH E-ICV / E-SCV	-
-	-	1	WIRING HARNESS, WITH E-ICV / E-SCV CONTROL UNIT	-
-	-	1	WIRING HARNESS, WITH E-SCV (CONSOLE SHIFT)	-
-	-	1	WIRING HARNESS, WORK LIGHTS OF CAB ROOF	-
-	-	1	FIELD INSTALLATION KIT - E-ICV	-
-	-	1	BACKUP ALARM	-
-	-	1	BATTERY CABLE	-
-	-	1	BRIDGE FOR WINDSHIELD WIPER FRONT	-
-	-	1	CAB WIRING HARNESS WITH JD IVT	-
-	-	1	CAB WIRING HARNESS WITH JD IVT	-
-	-	1	CAB WIRING HARNESS WITH POWRQUAD PLUS / AUTOQUAD PLUS	-
-	-	1	CAB WIRING HARNESS WITH POWRQUAD PLUS / AUTOQUAD PLUS	-
-	-	1	CHANNEL, WIRING HARNESS	-
-	-	1	Circuit Breaker, Attachment	-
-	-	1	COWL WIRING HARNESS	-
-	-	1	DISPLAY GSD 4 AND MOBILE PROCESSOR GSP (GREENSTAR)	-
-	-	1	ENGINE WIRING HARNESS	-
-	-	1	ENGINE WIRING HARNESS FOR SENSORS	-
-	-	1	ENGINE WIRING HARNESS, WITH TWO VALVE ENGINE	-
-	-	1	Attachment, Wiring Harness, Cab, Radio	-
-	-	1	FIELD INSTALLATION KIT FOR DRIVE BELT MONITOR SYSTEM	-
-	-	1	FUSES, RELAYS, LABEL FOR POWER SUPPLY HARNESS	-
-	-	1	GREENSTAR DISPLAY 2100	-
-	-	1	GREENSTAR DISPLAY 2100 (WITH PANORAMA DOOR)	-
-	-	1	HARNESS, CLUTCH ACTUATION	-
-	-	1	INSTRUMENT UNIT WIRING HARNESS	-
-	-	1	ISO Connector, 60A	-
-	-	1	JUMP-START CONNECTION	-
-	-	1	LOUDSPEAKER WIRING HARNESS	-
-	-	1	POSITION RECEIVER - GPS (GREENSTAR)	-
-	-	1	POWER HARNESS, 60A ISOBUS SOCKET	-
-	-	1	POWER SUPPLY WIRING HARNESS	-
-	-	1	RADAR SENSOR	-

42 ELECTRICAL COMPONENTS / WIRING HARNESSES AND PRECISION FARMING EQUIPMENT
