Открытый узел

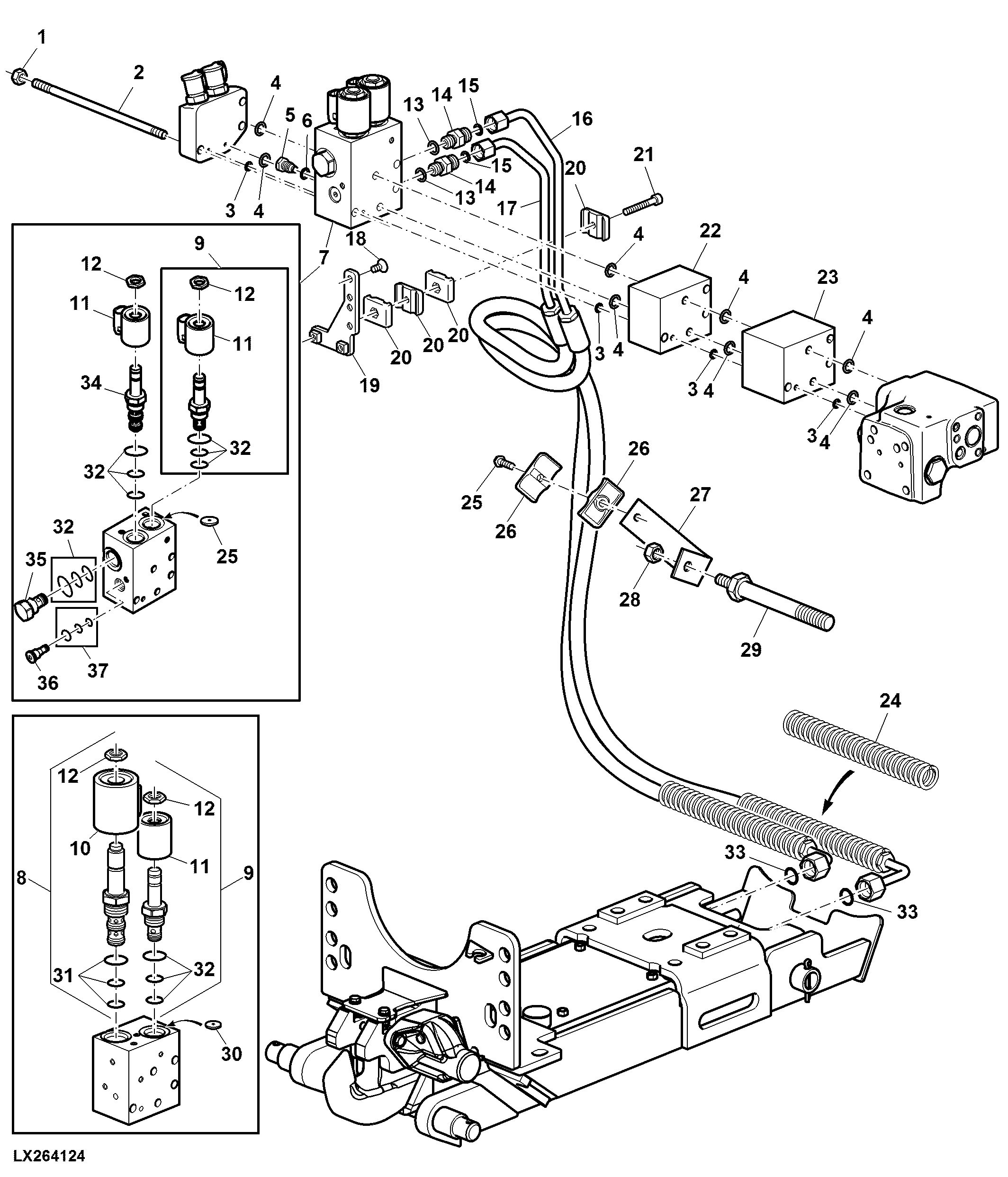

ELECTRO-HYDR. CONTROLLED PICK-UP HITCH WITH CONTROL BLOCK

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7273	2	Nut	M8
2	L172935	2	Stud	LGTH= 153MM, (SUB FOR L169331)
2	L172934	2	Stud	LGTH= 109MM, (SUB FOR L169330)
2	L172936	2	Rod	LGTH= 203MM, (SUB FOR L169332)
3	51M7052	2	O-Ring	6.071 X 1.626 mm
4	51M7040	8	O-Ring	9.300 X 2.200 mm
5	AL172486	1	Check Valve	-
6	51M7039	1	O-Ring	8.100 X 1.600 mm
7	AL172198	1	Hyd Actuated Control Valve	ORDER AL231796
7	AL180274	1	Hyd Actuated Control Valve	ORDER AL231796
7	AL225979	1	Hyd Actuated Control Valve	ORDER AL231796
7	AL231796	1	Hyd Actuated Control Valve	-
8	AL168965	1	Solenoid	-
9	AL170143	1	Solenoid	-
10	AL168969	1	Solenoid Valve	-
11	AL168968	1	Solenoid Valve	-
12	R109691	2	Nut	-
13	51M7040	2	O-Ring	9.300 X 2.200 mm
14	38H5001	2	Adapter Fitting	-
15	T77814	2	O-Ring	-
16	AL170647	1	Hydraulic Hose	(FOR AL172198)
16	AL200187	1	Hydraulic Hose	(FOR AL180274); ORDER AL209006
16	AL209006	1	Hydraulic Hose	(FOR AL180274)
17	AL209007	1	Hydraulic Hose	(FOR AL180274)
17	AL200188	1	Hydraulic Hose	(FOR AL180274); ORDER AL209007
17	AL170648	1	Hydraulic Hose	(FOR AL172198)
18	19M9198	2	Screw	M6 X 12
19	AL169698	1	Bracket	-
20	L101287	4	Clamp	-
21	19M7760	1	Screw	M6 X 45
22	L167831	1	Spacer	(FOR AL174445), NLA, ORDER L205121
22	L205121	1	Spacer	(FOR AL207055,AL207827)
23	L167830	1	Spacer	(FOR AL174445)
23	L205120	1	Spacer	(FOR AL207055,AL207827)
24	L100485	2	Spring	-
25	19M6755	1	Cap Screw	M6 X 35
26	L110815	2	Clamp	-
27	AL170765	1	Holder	-
28	14M7274	1	Nut	M10
29	L156614	1	Bar	-
30	L167092	1	Orifice	-
31	AT186614	1	Seal Kit	-
32	AL156815	1	Seal Kit	-
33	T77613	2	O-Ring	-
34	AL181460	1	Solenoid Valve	-
35	AL171827	1	Check Valve	INCLUDES AL156815
36	AL169449	1	Check Valve	INCLUDES AL169450
37	AL169450	1	Seal Kit	-
..	AL207055	1	Valve Kit	SUB FOR AL174445 FI (E-PUH) (ORD AL207053)

ELECTRO-HYDR. CONTROLLED PICK-UP HITCH WITH CONTROL BLOCK

Нет текстового описания
