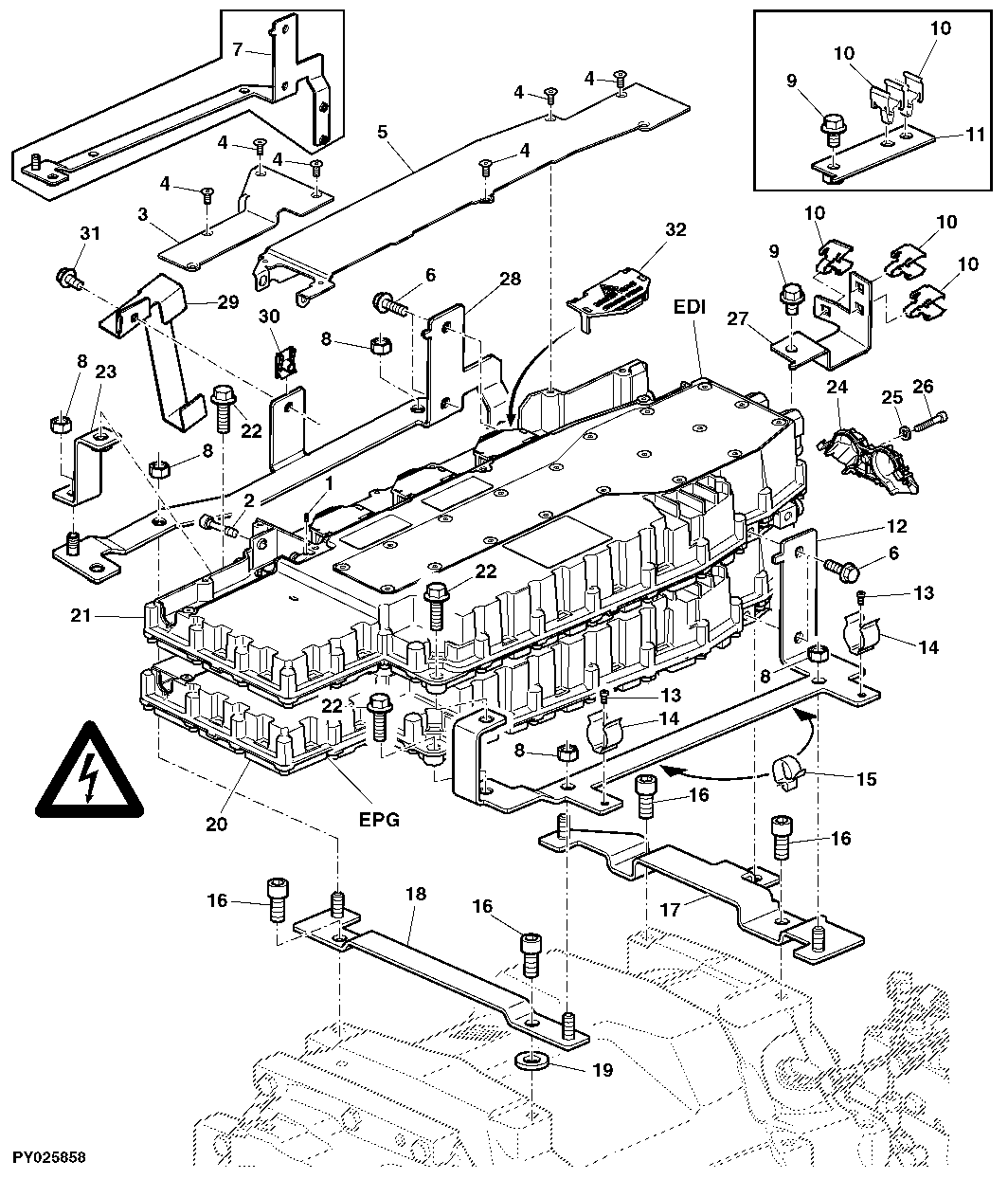

CONTROLLER EDI / EPG, ATTACHING PARTS

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	22M7115	1	Set Screw	M3 X 4
2	L173608	1	Bolt	-
3	L170199	1	Elec. Connector Housing	-
4	19M9264	10	Screw	M5 X 12
5	L173607	2	Cover	-
6	19M7867	4	Screw	M8 X 25
7	AL181640	1	Bracket	-
8	14M7274	5	Nut	M10
9	19M7783	1	Screw	M10 X 16
10	L153768	3	Clip	-
11	L173611	1	Bracket	-
12	AL202225	1	Bracket	SUB FOR AL181643
13	19M8869	2	Screw	M4 X 8
14	L173843	2	Clip	-
15	L202128	2	Clamp	SUB FOR L172064
16	19M8168	4	Screw	M12 X 25
17	AL202224	1	Bracket	SUB FOR AL181639
18	AL181641	1	Bracket	-
19	24M7044	1	Washer	13 X 20 X 2 mm
20	AL203038	1	Electronic Control Unit	(CAUTION! COMPLY WITH THE SAFETY INSTRUCTIONS IN THE TECHNICAL MANUAL) ASSY, INCL KEYS 1-5, 24-26, 32 (SUB FOR AL200015, AL201272)
21	AL203039	1	Electronic Control Unit	(CAUTION! COMPLY WITH THE SAFETY INSTRUCTIONS IN THE TECHNICAL MANUAL) ASSY, INCL KEYS 1-5, 32 (SUB FOR AL200022, AL201273)
21	AL204071	1	Electronic Control Unit	-
22	19M7786	4	Screw	M10 X 30
23	AL181644	1	Bracket	-
24	L173811	1	Elec. Connector Housing	-
25	24M7027	1	Washer	5.300 X 10 X 1 mm
26	19M8576	1	Screw	M5 X 30
27	L201206	1	Bracket	-
28	AL201889	1	Bracket	-
29	L203989	1	Retainer	-
30	L55969	1	Nut	-
31	19M7865	1	Screw	M8 X 16
32	L170205	3	Holder	-

CONTROLLER EDI / EPG, ATTACHING PARTS
