Range Shifting (PowrQuad™ with Reverser Control at Steering Column)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L113018	1	Insert	-
2	19M7560	1	Cap Screw	M6 X 16
3	24M7139	1	Washer	6.400 X 18 X 1.600 mm
4	L77805	1	Knob	-
5	AL110859	1	Shifter Rod	-
6	19M7865	4	Screw	M8 X 16
7	AL119584	1	Screw	-
8	AL110861	1	Support	-
9	L77963	5	Washer	TK=2.0MM (5/64")
10	L101929	1	Bushing	(WITH 16-SPEED TRANSMISSION)
11	L77978	1	Bushing	-
12	AL117583	1	Quadrant	-
13	14M7166	1	Lock Nut	M8
14	L79335	2	Washer	-
15	14M7416	3	Flange Nut	M8
16	19M8403	1	Cap Screw	M8 X 75, (HS=10.9)
17	AL117582	1	Quadrant	INCL KEY 11
18	AL110860	1	Support	INCL KEY 11
19	L113994	1	Pin Fastener	-
20	L77963	1	Washer	TK=2.0MM (5/64")
20	L111987	1	Washer	TK=1.5MM (1/16")
20	L111988	1	Washer	TK=1.0MM (3/64")
21	L116303	1	Bushing	-
22	AL117581	1	Quadrant	INCL KEY 11
23	L102451	1	Extension Spring	-
24	24M7055	1	Washer	8.400 X 16 X 1.600 mm
27	L111706	1	Adapter Fitting	(USE WITH AL161077)
28	AL153630	1	Quadrant	(WITH 20 OR 24-SPEED TRANSMISSION)
29	L113225	1	Washer	TK=6.0MM (15/64")
30	L152503	1	Rubber Mount	-
31	24M7298	1	Washer	8.400 X 25 X 2 mm
32	L32394	2	Cap	-
33	14M7273	1	Nut	M8
34	L116033	1	Support	-
35	19M7139	1	Cap Screw	M8 X 20
36	L112469	1	Shim	TK = 0.5 mm
25A	19M7378	1	Cap Screw	M8 X 45, (USE WITH AL112912)
25B	L157701	1	Cap Screw	(USE WITH AL161077)
26A	AL112912	1	Bracket	(SUB AL161077, L111706 AND L157701)
26B	AL161077	1	Stop	-

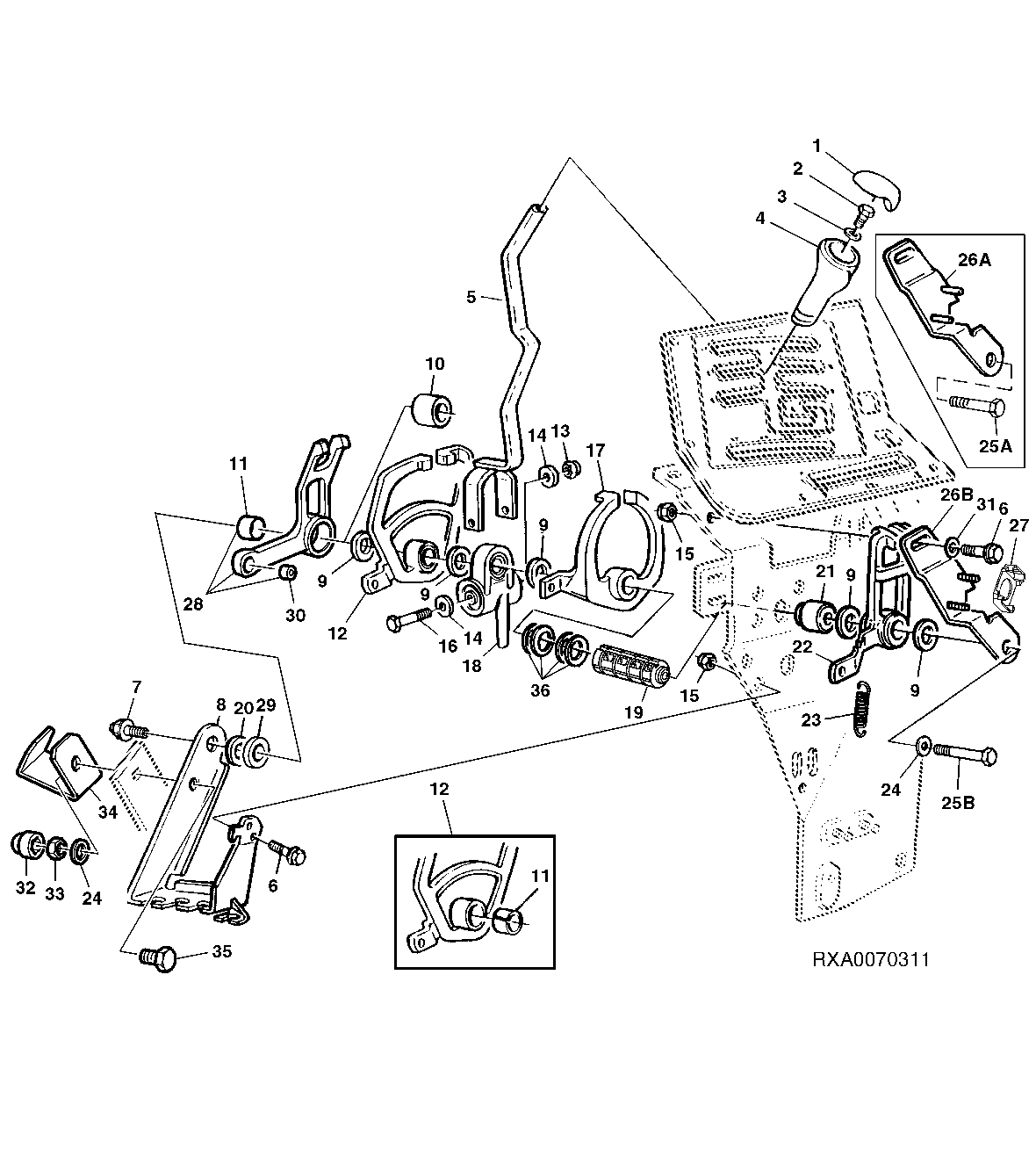

Range Shifting (PowrQuad™ with Reverser Control at Steering Column)
