Открытый узел

Outer Roof (With Hatch With Glass Panel)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	21M7258	1	Screw	(WITH HATCH WITH GLASS PANEL IN IT) M4 X 8
2	L100286	8	Bushing	6 X 8 X 10 mm (0.236" X 0.315" X 0.394")
3	L58442	2	Disk	-
4	AL156100	1	Roof	(WITH HATCH WITH GLASS PANEL IN IT)
5	AL157461	1	Visor	(WITH HATCH WITH GLASS PANEL IN IT)
6	AL156223	4	Guide	(WITH HATCH WITH GLASS PANEL IN IT)
7	L79493	2	Push Nut	-
8	55M7007	4	Ball Stud	-
9	AL160699	2	Gas Operated Cylinder	(SUB FOR AL82634)
10	AL78919	1	Fulcrum	-
11	34M7126	1	Spring Pin	5 X 12 mm
12	L151720	1	Guard	-
13	T27260	1	Washer	-
14	24M7252	1	Washer	13 X 20 X 2 mm
15	L150449	1	Handle	-
16	24M7055	1	Washer	8.400 X 16 X 1.600 mm
17	14M7165	1	Lock Nut	M6
18	L156522	1	Plug	-
19	21M7305	2	Screw	M6 X 12
20	21M7423	2	Screw	M6 X 30
21	37M7422	4	Screw	M6 X 70
22	24M7139	6	Washer	6.400 X 18 X 1.600 mm
23	L61335	4	Washer	6.250 X 16 X 1.500 mm (0.246" X 0.630" X 0.059")
24	19M7481	2	Cap Screw	M16 X 80
25	24M7315	2	Washer	17 X 50 X 3 mm
26	L200226	2	Washer	15 X 45 X 3 mm (0.591" X 1.772" X 0.118"), (SUB FOR L40376)
27	L75708	1	Pin	RH
27	L75704	1	Pin	LH
28	L75710	1	Weatherstrip	-
29	R54477	2	Rivet	-
30	L156274	1	Wear Plate	(SUB FOR L151455)
31	AL150427	1	Roof	-
32	L157372	14	Screw	M6 X 16, (SUB FOR L112815)
33	L113218	4	Nut	(WITH HATCH WITH GLASS PANEL IN IT)
34	L155331	2	Guide	(WITH HATCH WITH GLASS PANEL IN IT)
35	L79466	8	Push Nut	(WITH HATCH WITH GLASS PANEL IN IT)
36	21M7428	8	Screw	(WITH HATCH WITH GLASS PANEL IN IT) M5 X 20
37	37M7256	4	Screw	(WITH HATCH WITH GLASS PANEL IN IT)
38	21M7486	4	Screw	(WITH HATCH WITH GLASS PANEL IN IT) M4 X 5
39	AL157662	1	Panel	(WITH HATCH WITH GLASS PANEL IN IT)
40	L155250	1	Handle	(WITH HATCH WITH GLASS PANEL IN IT)
41	21M7258	1	Screw	(WITH HATCH WITH GLASS PANEL IN IT) M4 X 8
42	AL156223	4	Guide	(WITH HATCH WITH GLASS PANEL IN IT)

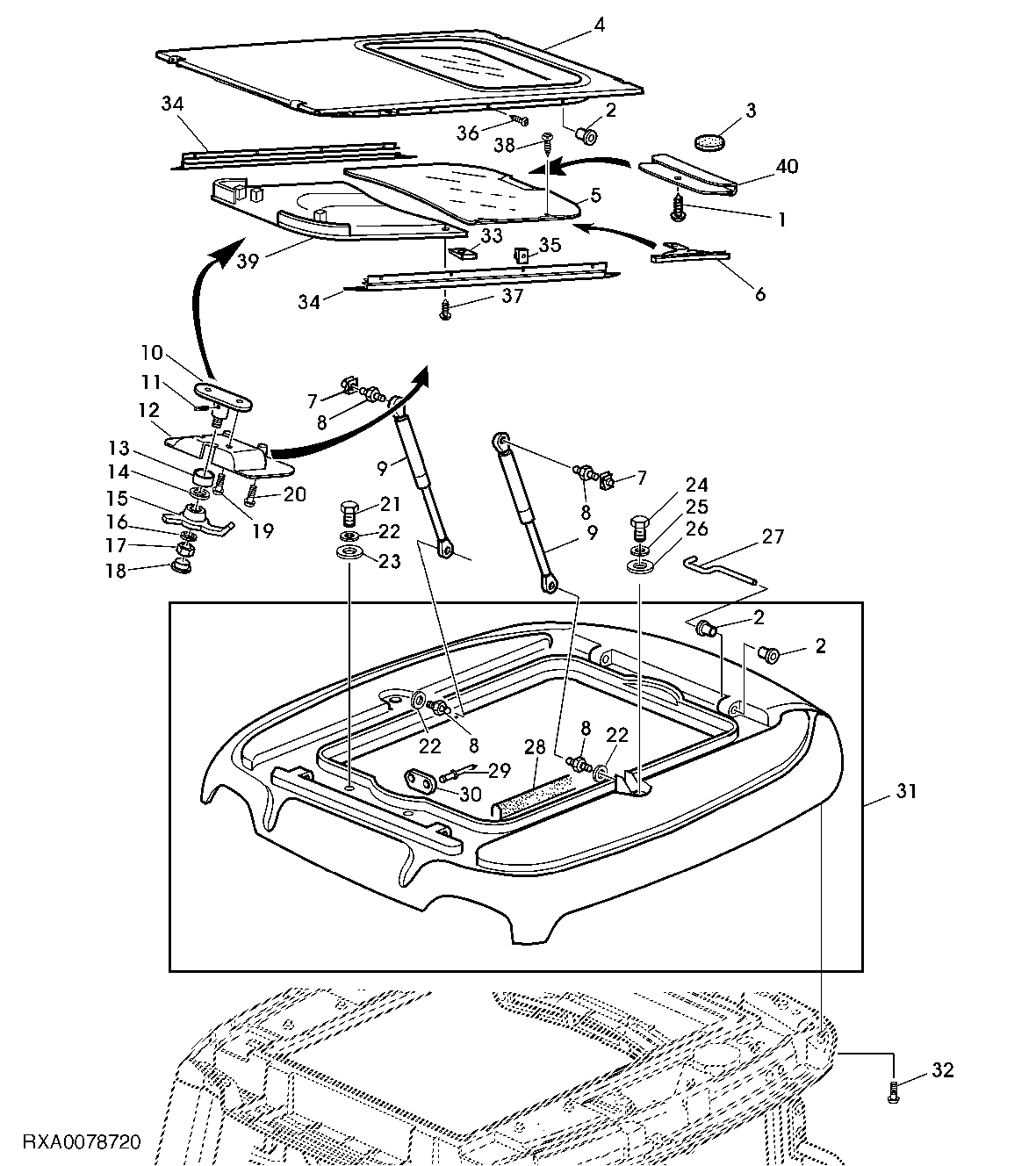

Outer Roof (With Hatch With Glass Panel)
