Открытый узел

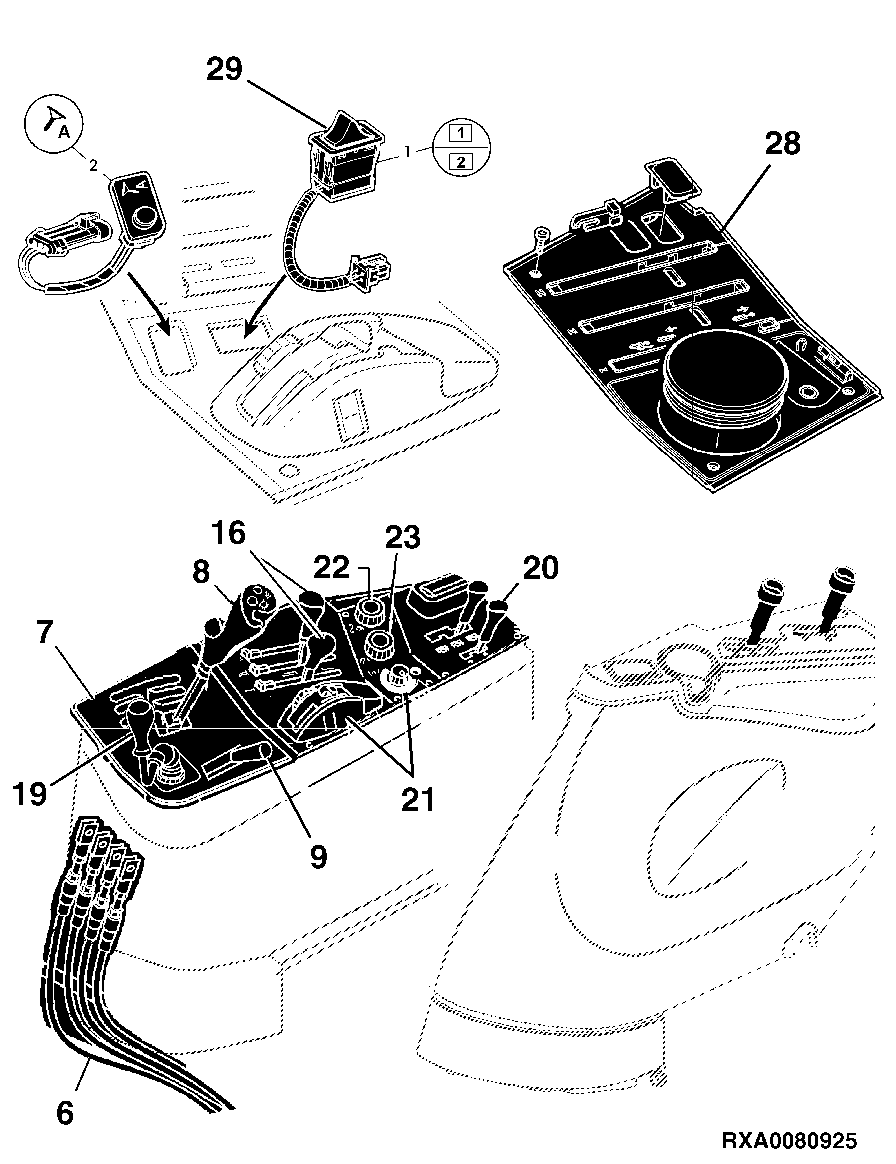

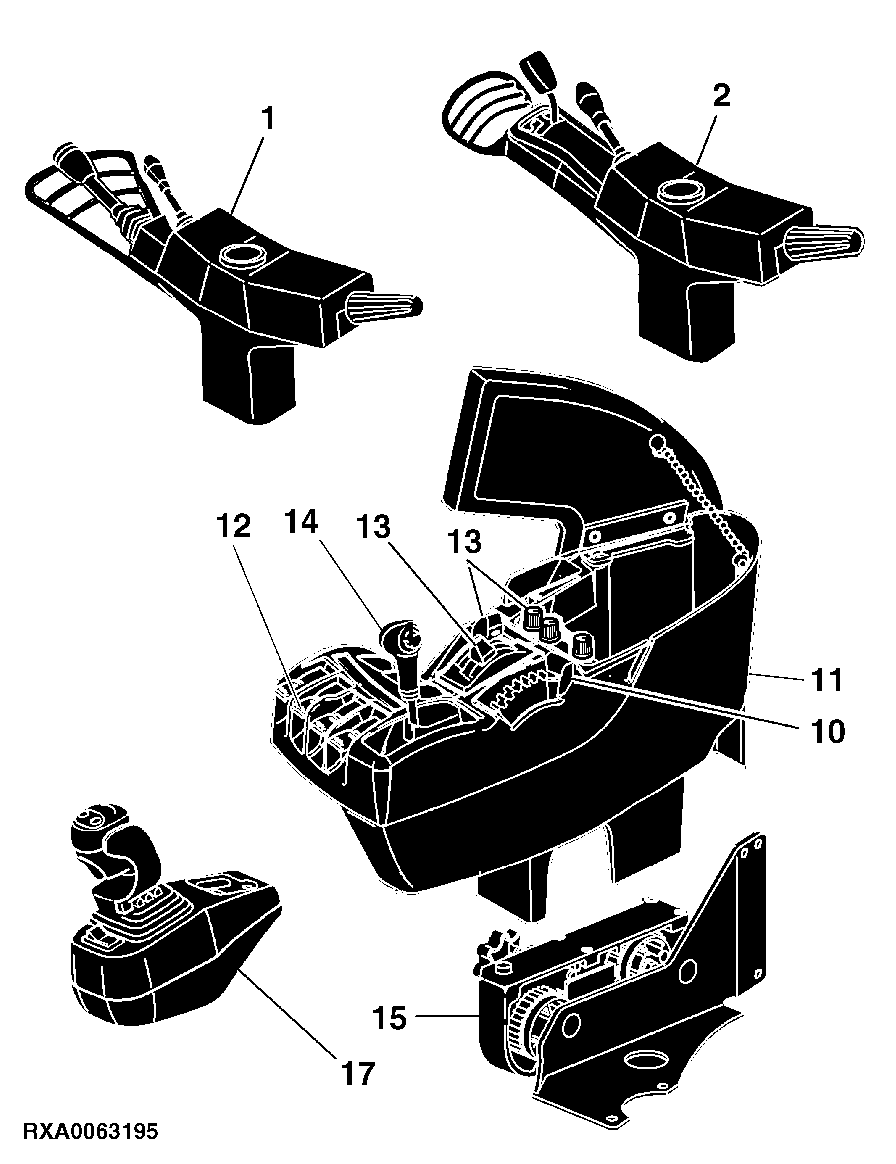

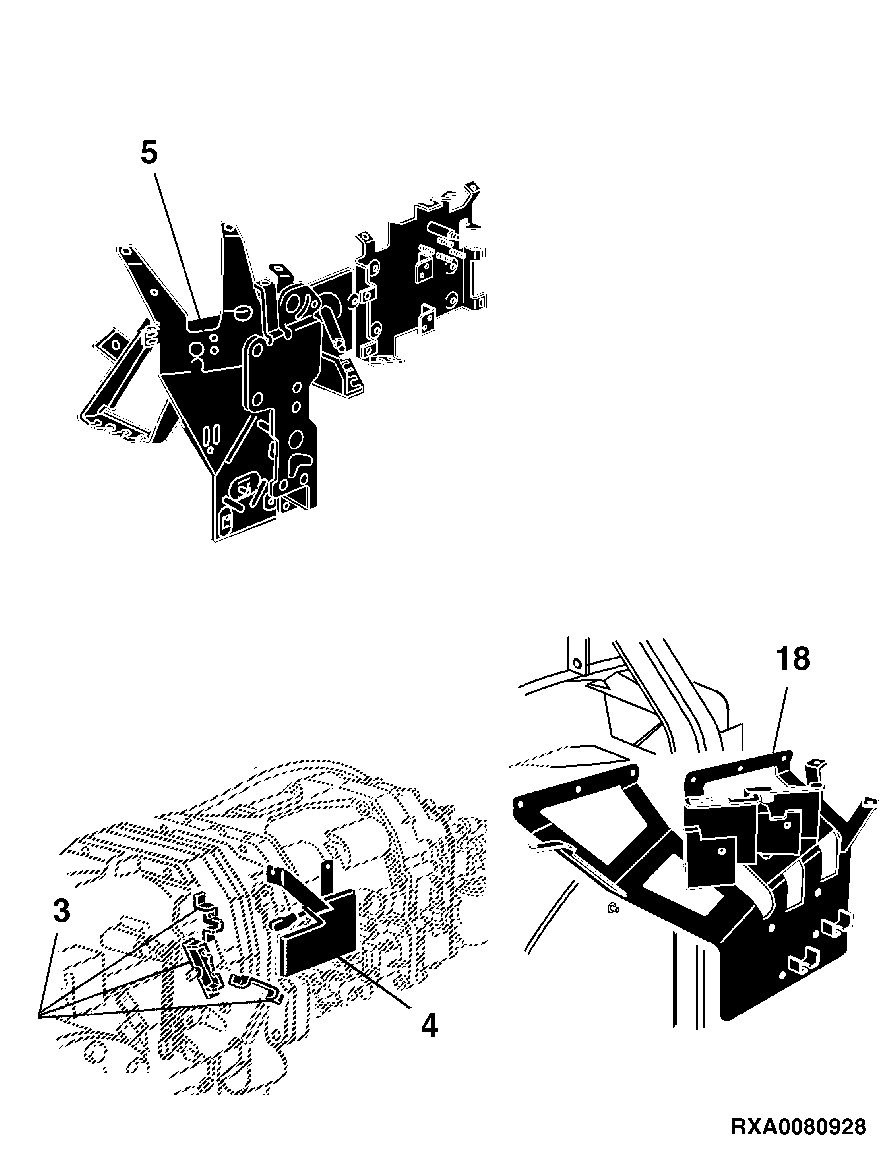

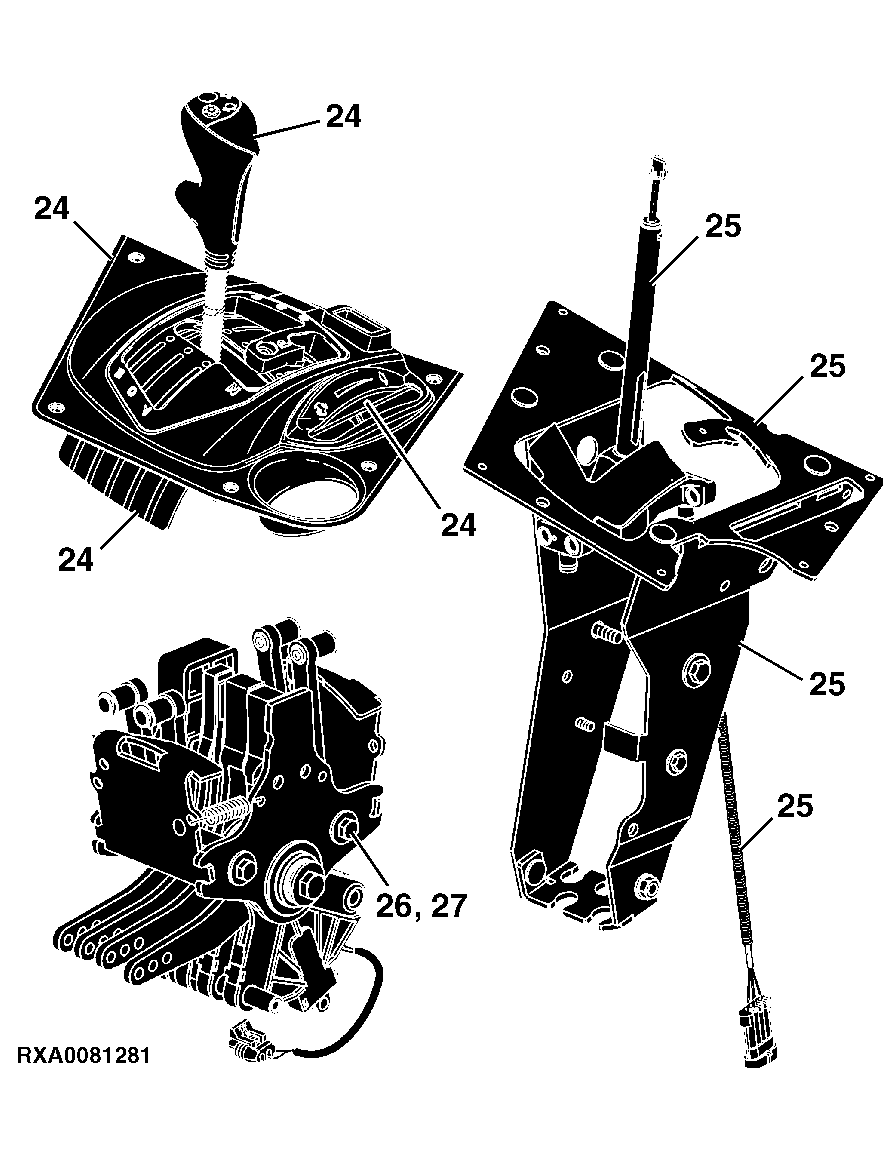

92 Operators Station, Shift Control Levers

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
-	-	1	Selective Control Valve, Control Linkage (Shift Console)	-
-	-	1	Range Shift Components (PowrQuad™ PLUS) (012454 - )	-
-	-	1	Range Shift Components, 16-Speed (PowrQuad™ Plus) (012454 - )	-
-	-	1	Range Shift Components, 20-Speed (PowrQuad™ Plus) (012454 - )	-
-	-	1	Rear Pto, Switch	-
-	-	1	Rock Shaft Control	-
-	-	1	Rock Shaft Control Kit (W/Command Arm)	-
-	-	1	Rock Shaft Control Kit (W/O Command Arm)	-
-	-	1	Rock Shaft Control, Locking Lever For SCV	-
-	-	1	Rock Shaft Control, Potentiometer (Command Arm)	-
-	-	1	Selective Control Valve, Control Linkage (Command Arm)	-
-	-	1	Range Shift Components (PowrQuad™ PLUS) (012454 - )	-
-	-	1	Sequence Switch Hms 2, AutoTrac™ Switch	-
-	-	1	Shift Lever Support	-
-	-	1	Shifter Attaching Parts (PowrQuad™ Plus Or AutoQuad™)	-
-	-	1	Speed Control (NOT IVT)	-
-	-	1	Swing Away Multi-Function Lever (Command Arm)	-
-	-	1	Swing-Away Multi-Function Lever	-
-	-	1	Swing-Away Multi-Function Lever For ECV (Armrest Integrated)	-
-	-	1	Switches (Command Arm)	-
-	-	1	Upholstery Parts Without Rock Shaft Control ( - XXXXXX)	-
-	-	1	Upholstery Parts Without Rock Shaft Control (XXXXXX - )	-
-	-	1	Electronic Speed Control On Shift Console (PowrQuad™ Plus Or AutoQuad™ Plus) (012454 - )	-
-	-	1	Bow Den Cables For Swing-Away Multifunction Lever	-
-	-	1	Bowden Cable Retainer Assembly	-
-	-	1	Bowden Cables For Range Shift And Parking Lock (PowrQuad™ Plus Or AutoQuad™)	-
-	-	1	Bracket Attachment for Bowden Cable, Creeper Transmission	-
-	-	1	Console For Shift able Rear PTO/Creeper	-
-	-	1	Control Console (Command Arm)	-
-	-	1	Creeper, Control Linkage (Premium Cab)	-
-	-	1	Creeper, Control Linkage (Premium Plus Cab)	-
-	-	1	ELECTR. Reverser Control (IVT)	-
-	-	1	Electronic Speed Control On Command Arm	-
-	-	1	Attaching Parts, Swing-Away Multi-Function Lever For Ecv (Armrest Integrated)	-
-	-	1	Front PTO Switch	-
-	-	1	IVT Shifting (Command Arm)	-
-	-	1	Joystick, 2 Function Mechanical, Attachment	-
-	-	1	Level Adjustment For Command Arm ( - 015770)	-
-	-	1	Level Adjustment For Command Arm (015771 - )	-
-	-	1	Multi-Function Lever for M-Icv (Mounted On Floor)	-
-	-	1	Multi-Function Unit With ELECTR. Reverser Control (IVT)	-
-	-	1	Multi-Function Unit With Electric Reverser Control (PowrQuad™ Plus/AutoQuad™ Plus)	-
-	-	1	Range Shift Components (PowrQuad™ Plus Or AutoQuad™) ( - 012453)	-

92 Operators Station, Shift Control Levers

Нет текстового описания
