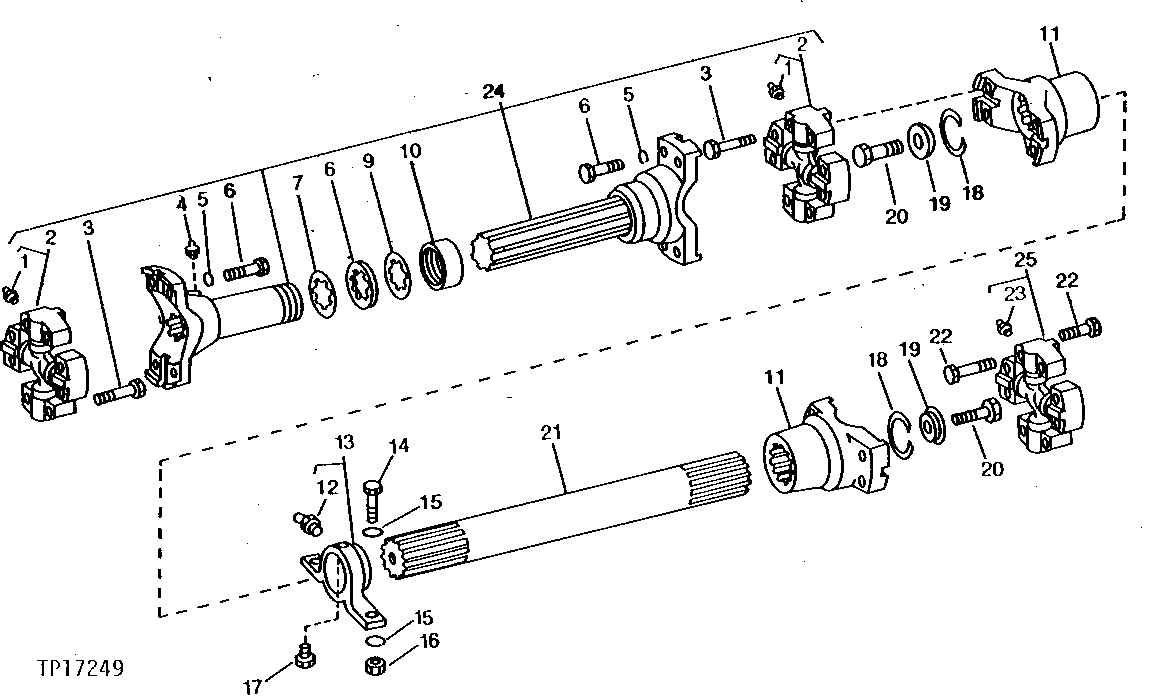

REAR DIFFERENTIAL DRIVE SHAFT (DOUBLE UNIVERSAL) [01C10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	JD7842	2	Lubrication Fitting	1/4"
2	AT57090	2	CROSS AND BEARING ASSEMBLY	-
3	19H3183	8	CAP SCREW	HS, SAE 8, 1/2" X 2-1/8"
4	JD7759	1	Lubrication Fitting	(ROCKWELL)
4	JD7797	1	Lubrication Fitting	(MECHANICS)
4	JD7782	2	Lubrication Fitting	1/8", (USE WITH AR90543)
5	12H293	8	Lock Washer	7/16"
6	P47707	8	CAP SCREW	-
7	-	1	Part 9	(K) (SUB AT62180)
8	-	1	Part 10	(K) (SUB AT62180)
9	-	1	Part 11	(K) (SUB AT62180)
10	T29334	1	Cap	(K)
11	T59890	2	UNIVERSAL JOINT YOKE	-
12	JD7788	1	Lubrication Fitting	45°, 1/4"
13	AT114341	1	BEARING WITH HOUSING	(SUB FOR AT36347)
14	19H1805	2	CAP SCREW	1/2" X 2-1/4", (SUB FOR 19H2735, THIS APPLICATION)
15	T21242	4	Washer	17/32" X 1" X 0.120", (SUB FOR 12H301, THIS APPLICATION)
16	14H1040	2	Nut	1/2"
17	T113716	1	PIN	(SUB FOR T27135)
18	T27132	2	SNAP RING	-
19	T27134	2	WASHER	-
20	19H2710	2	Cap Screw	HS, SAE 8, 5/8" X 1-3/4"
21	T37604	1	SHAFT	(SKIDDER)
21	T41558	1	DRIVE SHAFT	(GRAPPLE SKIDDER)
22	19H3011	8	Cap Screw	HS, SAE 8, 1/2" X 2-1/8"
23	JD7759	1	Lubrication Fitting	1/8" THREAD X 11/16" LONG, (USE WITH AT27353) (ROCKWELL)
23	R61943	1	FITTING	(USE IF AVAILABLE) 1/4" THREAD X 1-5/8" LONG, (SUB FOR T30074) (USE WITH AT27353) (MECHANICS)
23	JD7782	2	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG, (USE WITH AR90543)
23	JD7782	4	Lubrication Fitting	1/8" THREAD X 1-3/4" LONG, (USE WITH AR95974)
23	JD5814	1	Lubrication Fitting	(SUB FOR R61943)
24	AT36344	1	UNIVERSAL JOINT	-
25	RE40111	1	Cross And Bearing Assembly	(SUB FOR AR95974)
