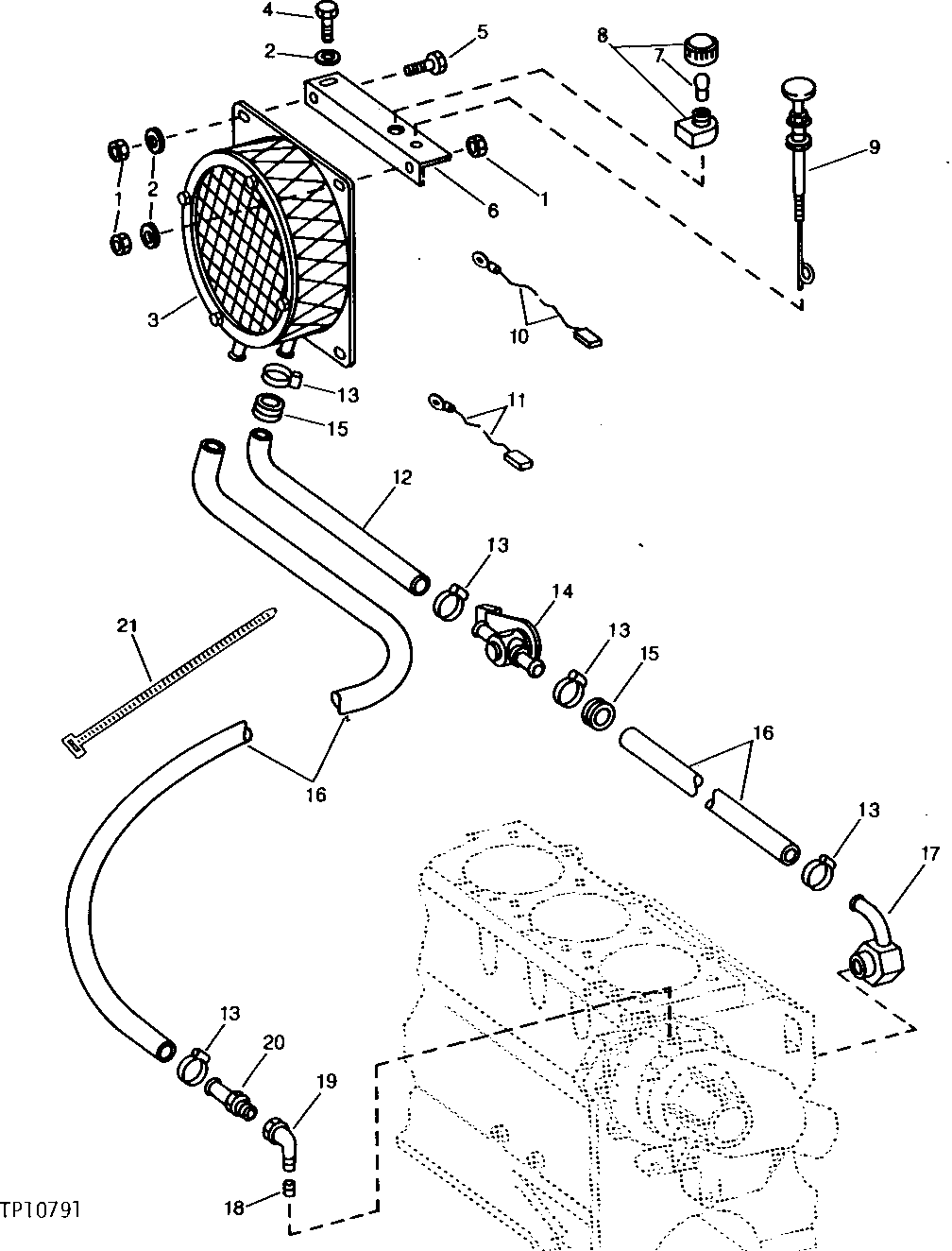

HEATER AND HEATER MOTOR SWITCH [02H19]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H785	7	Nut	5/16"
2	24M7207	3	Washer	8.400 X 24 X 2 MM
3	AT55523	1	HEATER	WITH FAN AND MOTOR
4	19H1648	1	Cap Screw	3/8" X 3/4"
5	19H2020	1	Cap Screw	5/16" X 1/2"
6	T53804	1	BRACKET	HEATER
7	-	1	Part 7	12-VOLT ( A4927R NO LONGER AVAILABLE)
8	AU42189	1	SWITCH	(SUB AT106154, THIS APPLICATION) HEATER WITH BULB
9	AN112742	1	PUSH PULL CABLE	HEATER CONTROL
10	AT71617	1	Wiring Lead	COIL TO HARNESS (SUB FOR AT25405)
11	AT71618	1	WIRING LEAD	GROUND (SUB FOR R36236)
12	T60811	1	Bulk Hose	16 MM X 203 MM (5/8" X 8") (SUB FOR R44921)
13	AR21839	6	Clamp	HOSE
14	AT69645	1	HAND OPERATED VALVE	-
15	U16949	4	Grommet	-
16	T60811	2	Bulk Hose	16 MM X 3 734 MM (5/8" X 147") (SUB FOR T68796)
17	R41985	1	Fitting	(SUB FOR AT48625)
18	29H593	1	Threaded Nipple	1/2" X 2-1/2"
19	15H577	1	Elbow Fitting	1/2", 90°
20	R41071	1	Fitting	(SUB FOR R41985, THIS APPLICATION)
21	R44302	1	Tie Band	-
22	T58240	1	LABEL	HEATER CONTROL (NOT ILLUSTRATED)

HEATER AND HEATER MOTOR SWITCH [02H19]
