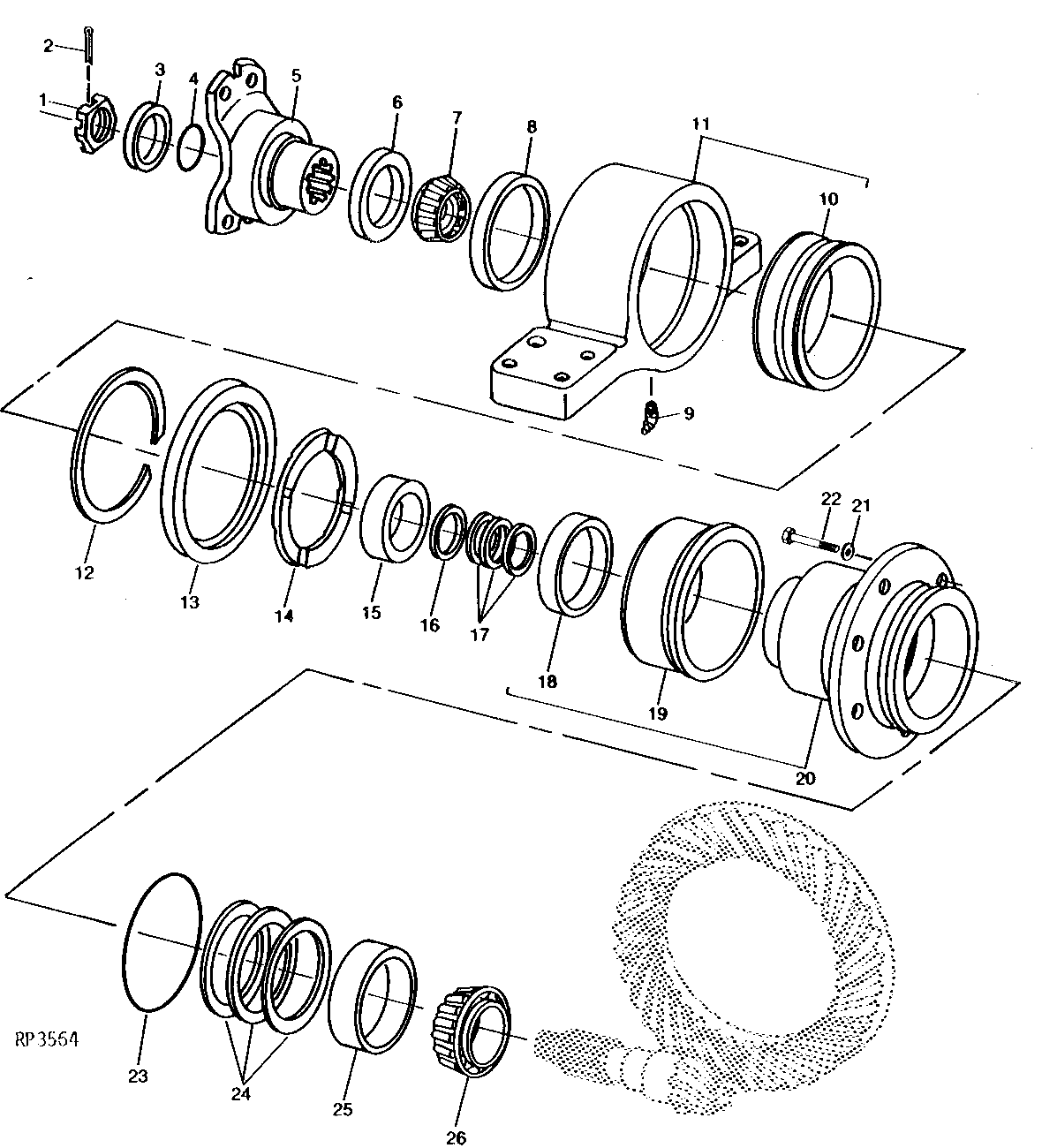

FRONT DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01B16]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R48776	1	Nut	-
2	11M7032	1	Cotter Pin	5 X 50 MM
3	R48734	1	Washer	-
3	R48735	1	Washer	-
3	R48733	1	Washer	-
4	A4540R	1	O-Ring	-
5	R56304	1	UNIVERSAL JOINT YOKE	(SUB RE45317) (ALSO ORDER AR66751)
5	R107600	1	Universal Joint Yoke	(SUB RE45317)
6	R100500	1	Seal	-
6	RE45315	1	Seal Kit	(USE WITH R93134 OR R107600)
6	AR66751	1	SEAL	(USE WITH R56304)
7	JD9078	1	Bearing Cone	-
8	AR92437	1	Seal	-
9	JD7778	1	Lubrication Fitting	-
10	R70454	1	Bushing	-
11	AR92436	1	SUPPORT	(MARKED R70451)
12	R42227	1	Snap Ring	-
13	AR94169	1	Seal	-
14	R56298	1	Thrust Washer	-
15	JD8255	1	Bearing Cup	-
16	R56308	1	Spacer	-
17	-	1	Part 22	(A) 0.18 MM (.007") ( R51196 NO LONGER AVAILABLE)
17	-	1	Part 23	(A) 0.25 MM (.010") ( R51197 NO LONGER AVAILABLE)
17	-	1	Part 24	(A) 0.30 MM (.012") ( R51198 NO LONGER AVAILABLE)
17	-	1	Part 25	(A) 0.38 MM (.015") ( R51199 NO LONGER AVAILABLE)
18	R70453	1	Sleeve	WEAR
19	R70452	1	Sleeve	-
20	RE35235	1	BEARING HOUSING W/O BEARING	(MARKED R70449 OR R94432) (SUB FOR AR92434)
21	R47172	11	Washer	-
22	R68206	11	Cap Screw	-
23	R27796	1	O-Ring	-
24	R35365	1	Shim	0.08 MM (.003")
24	R35366	1	Shim	0.18 MM (.005")
24	R35367	1	Shim	0.25MM (.010")
25	JD8280	1	Bearing Cup	-
26	JD10377	1	Bearing Cone	(SUB FOR JD9004)

FRONT DIFFERENTIAL OSCILLATING SUPPORT AND UNIVERSAL YOKE WITH QUILL [01B16]
