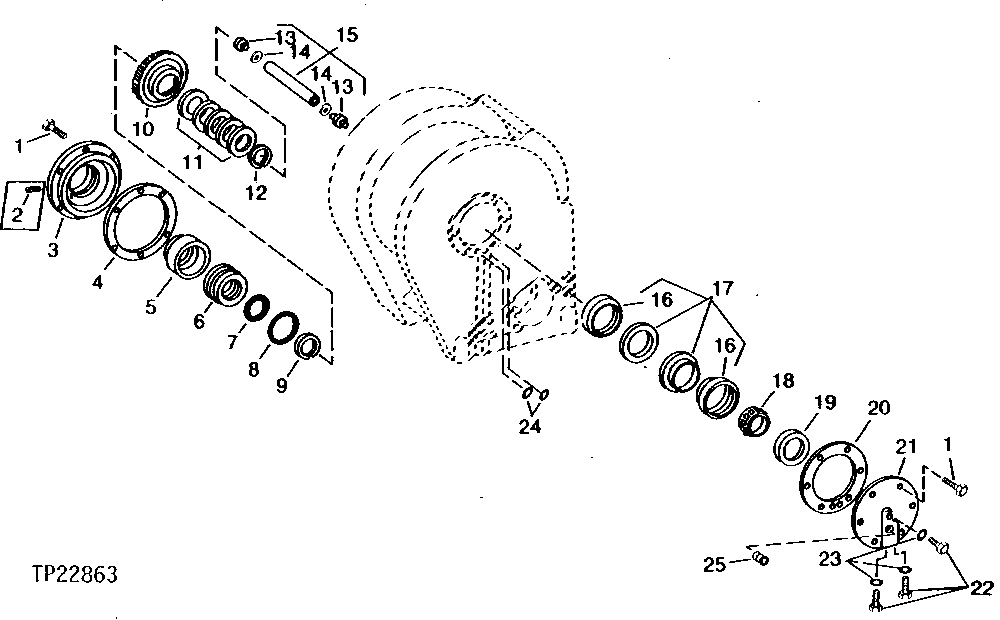

FREE SPOOL PISTON AND BEARINGS [03B13]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2898	12	Cap Screw	1/2" X 1-1/4"
2	22H821	2	SET SCREW	1/2" X 1/2", (740A SKIDDER) (NO LONGER USED)
3	T52433	1	COVER	(SUB T73943)
3	T73943	1	COVER	-
4	-	1	Part 5	(SUB FOR T43514) (SUB PM38655 PLASTIC GASKET)
5	T43627	1	Housing	-
6	T43630	1	Piston	-
7	T43628	1	Washer	-
8	T43629	1	Washer	-
9	R28213	1	Snap Ring	-
10	T43631	1	Hub	-
11	R67840	17	Disk Spring	-
12	R33247	1	Snap Ring	-
13	R39279	2	Retainer	-
14	R34140	2	Ring	-
15	AT42507	1	Pipe	-
16	AT18941	1	KIT	OIL SEAL
17	AT72157	1	Seal	(SUB FOR AT26096)
18	JD8177	1	Bearing Cone	-
19	JD8213	1	Bearing Cup	-
20	T43639	1	Shim	0.25 MM (.010")
20	T43641	1	Shim	0.18 MM (.007")
20	T43640	1	Shim	0.13 MM (.005")
21	-	1	Part 24	( T43638 NO LONGER AVAILABLE) (SUB T120225 AND 15H558)
21	T120225	1	BEARING HOUSING W/O BEARING	-
22	R27094	3	Drain Plug	-
23	R26286	3	O-Ring	-
24	R394R	2	O-Ring	(USE WHEN RIGHT BEARING QUILL SHIM PACK IS 1.31 MM (.050") IN TOTAL THICKNESS OR GREATER)
24	R28776	2	O-Ring	(USE WHEN SHIM IS LESS THAN 1.31 MM (.050")
25	T14432	1	Plug	-

FREE SPOOL PISTON AND BEARINGS [03B13]
