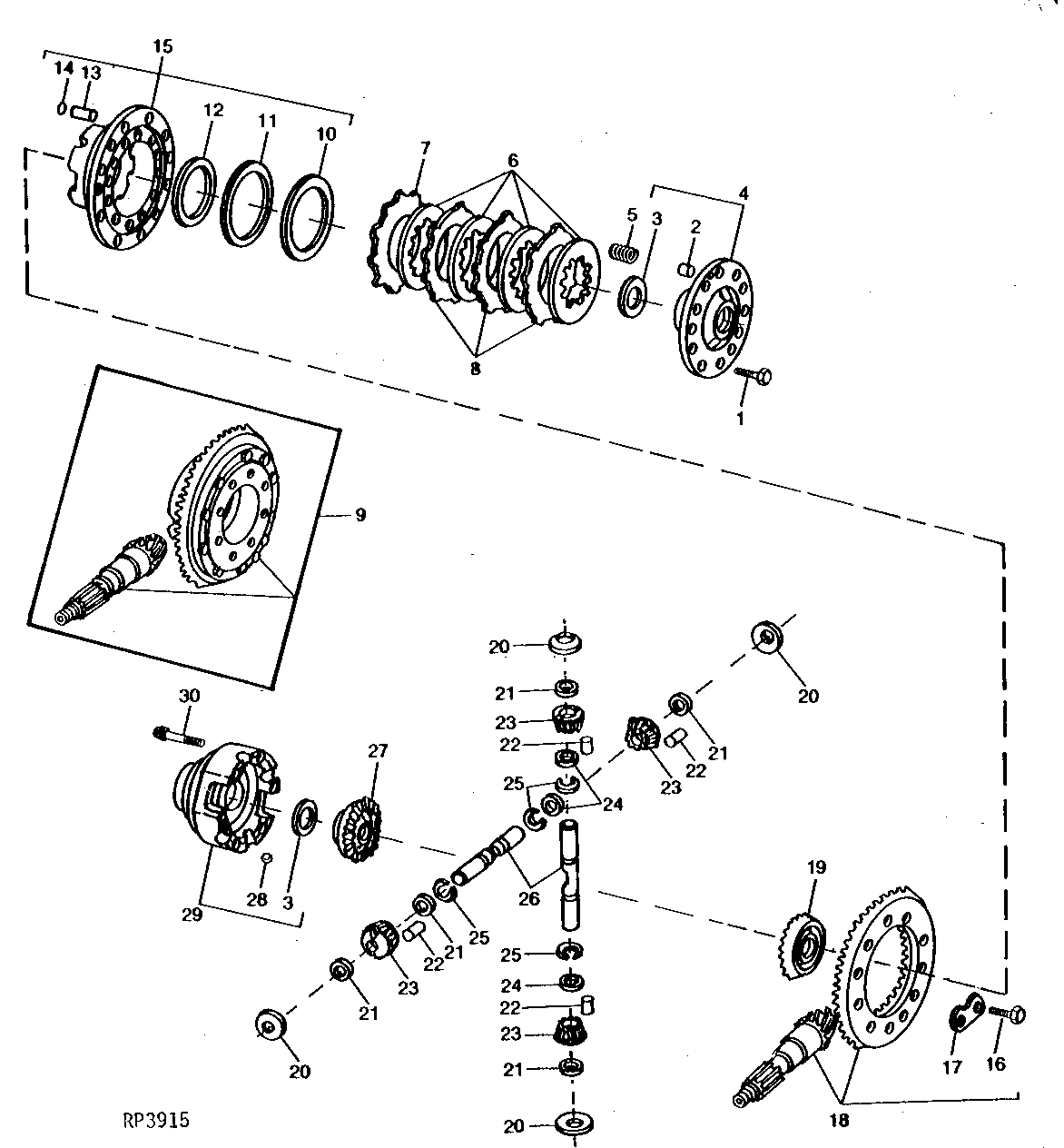

DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2964	12	Cap Screw	(SUB FOR R40236 OR R116064) (USE WITH R70529)
2	34H311	3	Spring Pin	1/4" X 7/8"
3	R93623	2	Thrust Washer	(SUB FOR R72587 OR R77145)
4	RE36864	1	COVER	(MARKED R68522, R84993 OR R98200) (SUB AR98730) (SUB FOR AR90626)
4	AR98730	1	Cover	(MARKED R98200) (SUB R98200, R93623 AND (3) 34H311)
5	R41770	3	Spring	-
6	AR86454	4	DISK WITH INNER SPLINE	(SUB RE53823)
7	R34857	1	Clutch Plate	-
8	R34858	3	Clutch Plate	-
9	AR92885	1	HOUSING	NO LONGER AVAILABLE
9	AR92887	1	HOUSING	NO LONGER AVAILABLE
10	R58775	1	Piston	-
11	R68615	1	O-Ring	-
12	R68616	1	Washer	-
13	R70532	1	BUSHING	(USE WITH R70529)
14	R60038	1	Packing	-
15	AR98726	1	HOUSING	(MARKED R70529) (SUB AR92889, R60038 AND R70532)
15	AR92889	1	HOUSING	(MARKED R70529) (SUB RE53705, RE53244, (12) T105740 AND (12) 19H2563)
16	R48787	12	Cap Screw	-
17	R56887	6	PLATE	-
18	AR92558	1	GEAR	(FRONT) (GEAR MARKED R63841 AND SHAFT MARKED R56289) (SUB FOR AR98728 OR RE18895)
18	RE16527	1	GEAR	(REAR) (GEAR MARKED R64069 AND SHAFT MARKED R80048) (SUB FOR AR98727 OR RE18896)
19	R59290	1	Bevel Gear	-
20	R59460	4	Thrust Washer	-
21	R70112	4	Thrust Washer	-
22	R70115	104	Needle Roller	-
23	R68170	4	PINION	-
24	R70113	4	Thrust Washer	-
25	R70114	4	Snap Ring	-
26	R70111	2	Pinion Shaft	-
27	R59289	1	Bevel Gear	-
28	H871R	1	Ball	-
28	400R	1	Ball	-
29	RE21029	1	Housing	(MARKED R82197 OR R70528) (SUB FOR AR92878) (SUB RE53244, RE53705, (12) T105740 AND (12) 19H2563)
29	RE53244	1	Housing	(MARKED R116209)
30	R116211	8	Screw	(SUB FOR R52718)

DIFFERENTIAL HOUSING (DIFFERENTIAL LOCK) [01B20]
