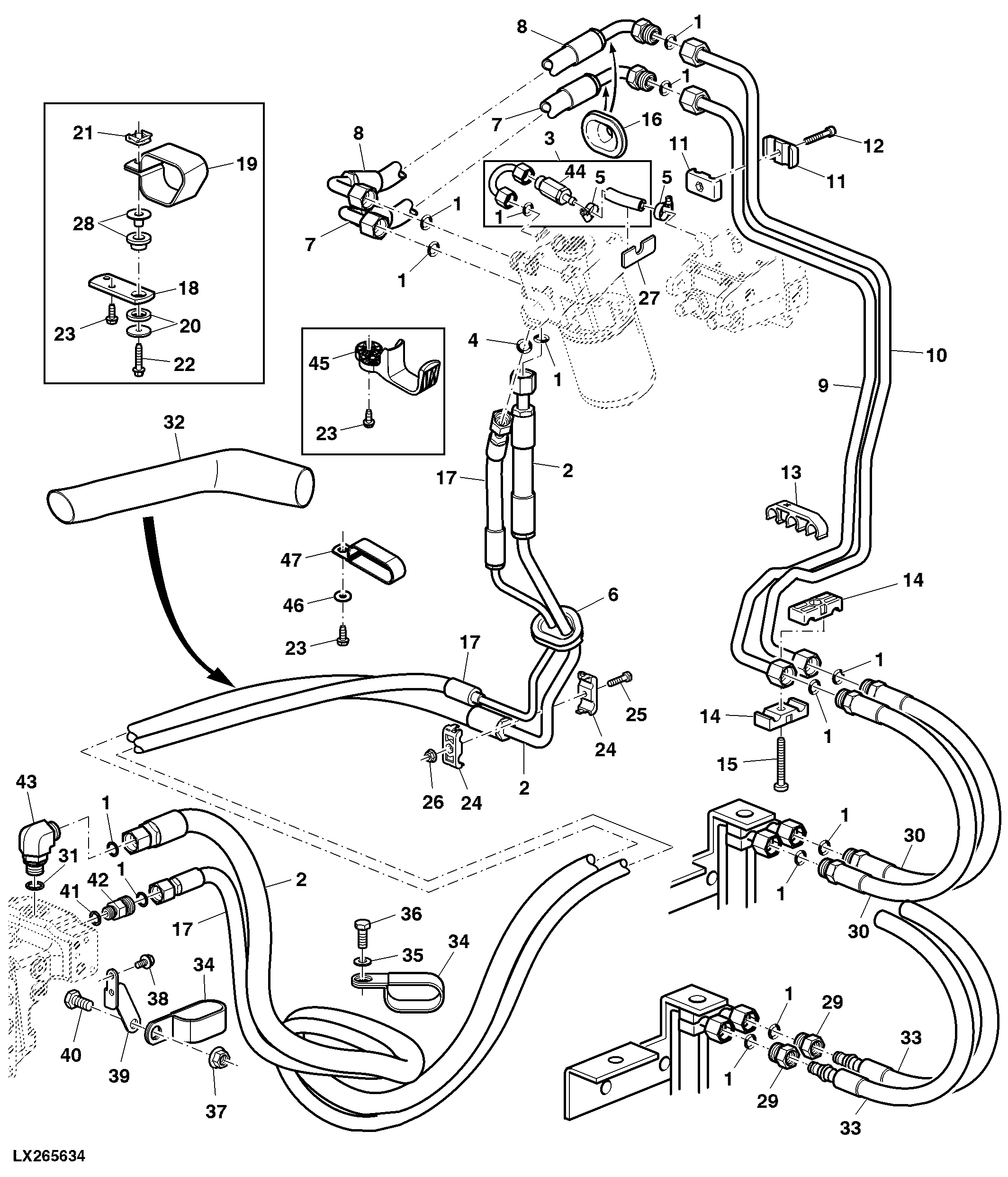

HYDROSTATIC STEERING OIL LINES, CAB, HYDRAULIC PUMP 28 CM3

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T77857	1	O-Ring	-
2	AL220569	1	Hydraulic Hose	SUB FOR AL177454
3	AL175819	1	Valve	-
4	T77613	1	O-Ring	-
5	AL212943	2	Clamp	SUB FOR AL37489 APPL
6	L100377	1	Grommet	SUB FOR L168646 APPL
7	AL81147	1	Hydraulic Hose	RH
8	AL81146	1	Hydraulic Hose	LH
9	AL171477	1	Oil Line	RH
10	AL171478	1	Oil Line	LH
11	L38284	2	Clamp	-
12	19M8532	1	Screw	M6 X 35
13	L169005	1	Clamp	-
14	L101560	2	Clamp	-
15	19M8274	1	Screw	M8 X 35, (10.9)
16	L102007	2	Grommet	-
17	AL177453	1	Hydraulic Hose	ORDER AL220567
17	AL180010	1	Hydraulic Hose	ORDER AL220567
17	AL220567	1	Hydraulic Hose	-
18	L168475	1	Strap	-
19	L168974	2	Clamp	-
20	AL172503	1	Bumper	-
21	L111480	1	Push Nut	-
22	37M7104	1	Screw	M6 X 30
23	37M7361	1	Screw	M6 X 16
24	L168973	2	Clamp	-
25	19M7286	1	Cap Screw	M6 X 25
26	14M7303	1	Flange Nut	M6
27	L113747	1	Pad	-
28	AL172502	1	Isolator	-
29	AL156431	2	Adapter Fitting	-
30	AL110275	2	Hydraulic Hose	-
31	51M7043	1	O-Ring	15.300 X 2.200 mm
32	L172248	1	Hose Guard	ORDER L201824
32	L201824	1	Hose Guard	-
33	AL161121	2	Hydraulic Hose	-
34	T149597	2	Clamp	-
35	24M7055	1	Washer	8.400 X 16 X 1.600 mm
36	19M7139	1	Cap Screw	M8 X 20
37	14M7296	1	Flange Nut	M10
38	19M7744	2	Cap Screw	M12 X 35
39	L172741	1	Retainer	-
40	19M7166	1	Cap Screw	M10 X 20
41	51M7041	1	O-Ring	11.300 X 2.200 mm
42	38H5009	1	Adapter Fitting	-
43	38H5017	1	Elbow Fitting	-
44	AL176574	1	Check Valve	-
45	L209821	1	Bracket	-
46	24M7298	1	Washer	8.400 X 25 X 2 mm, USE WITH L114178
47	L114178	1	Clamp	SUB FOR L209821 APPL

HYDROSTATIC STEERING OIL LINES, CAB, HYDRAULIC PUMP 28 CM3
