DIFF. DRIVE SHAFT, RANGE TRANSMISSION (30KM/H)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE205828	1	Ring Gear And Pinion	-
2	JD8280	2	Bearing Cup	-
3	R35365	3	Shim	TK = 0.076 mm (0.003")
3	R35366	3	Shim	TK = 0.127 mm (0.005")
3	R35367	4	Shim	TK = 0.254 mm (0.010")
4	R119626	1	Ring	(WITH CREEPER TRANSMISSION)
5	R113616	2	Ring	-
6	JD7430	1	Bearing Cup	-
7	JD10377	1	Bearing Cone	-
8	R108890	1	Gear	(WITH CREEPER TRANSMISSION) Z = 60, A RANGE
8	R162580	1	Helical Gear	(WITHOUT CREEPER TRANSMISSION) Z = 68; A RANGE; NLA; ORDER R322744;
8	R322744	1	Gear	(WITHOUT CREEPER TRANSMISSION) Z = 68; A RANGE
9	RE286934	1	Synchronizer	(SUB FOR RE247685)
10	R108891	1	Gear	(WITH CREEPER TRANSMISSION) Z=55, B RANGE (MARKED R108891)
10	R109508	1	Gear	(WITHOUT CREEPER TRANSMISSION) Z = 55, B RANGE (MARKED R109508)
11	R153137	1	Sleeve	-
12	R202389	1	Spacer	-
13	R108893	1	Gear	Z = 25
14	R122521	1	Gear	Z = 25, D RANGE
15	R119199	1	Gear	Z = 36, C RANGE
16	R202394	1	Spacer	-
17	R115998	3	Shim	TK = 0.08 mm (0.003")
17	R115999	4	Shim	TK = 0.13 mm (0.005")
17	R116000	6	Shim	TK = 0.254 mm (0.010")
18	R110485	3	Poppet	-
19	R110487	3	Compression Spring	-
20	R154778	1	Bearing Cone	-
21	R51200	1	Lock Nut	-
22	-	1	Part 29	NSEP (ORDER RE286934)
23	R110484	1	Hub	NSEP (ORDER RE286934)
24	R113617	3	Pin	-

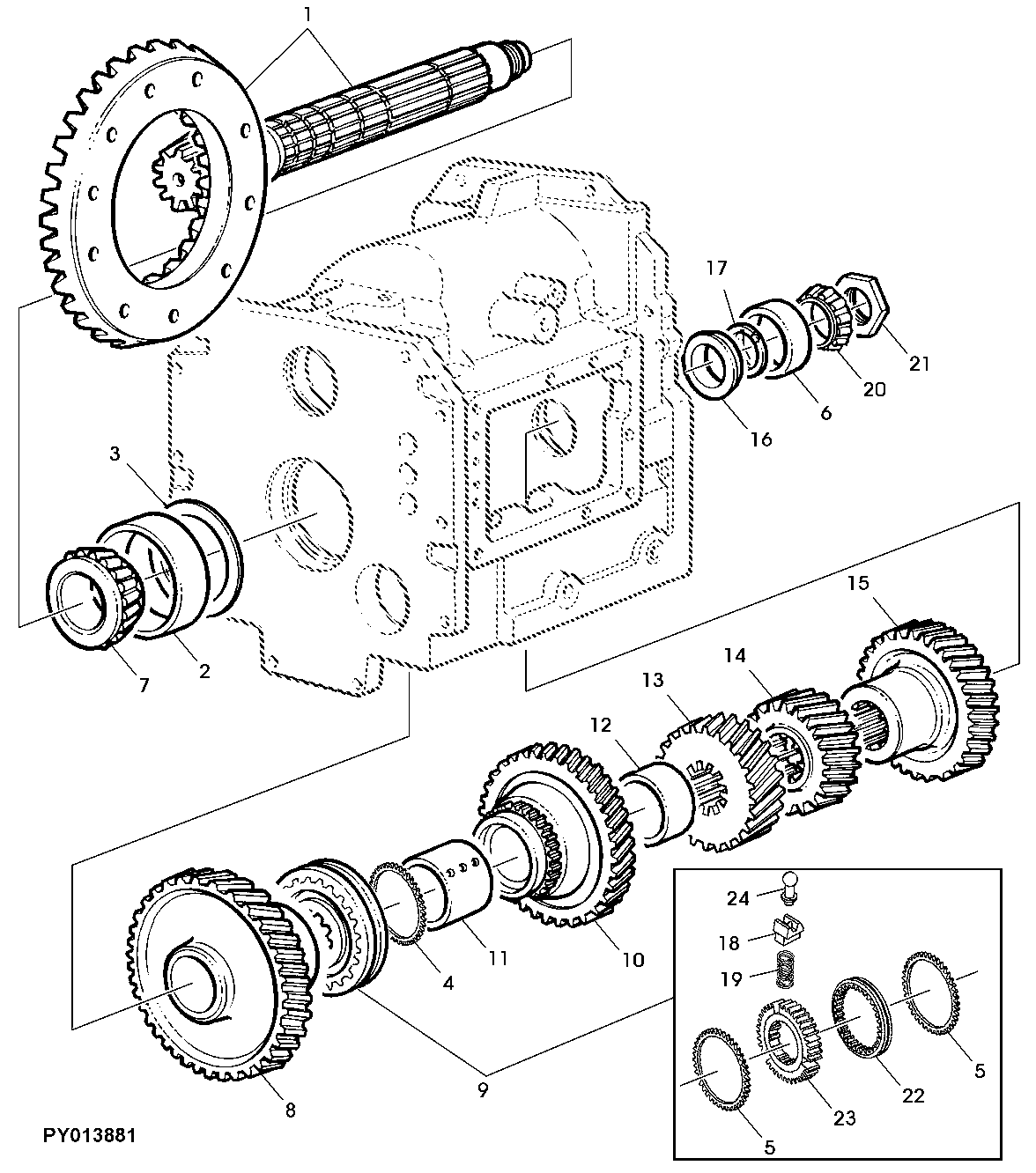

DIFF. DRIVE SHAFT, RANGE TRANSMISSION (30KM/H)

Нет текстового описания
