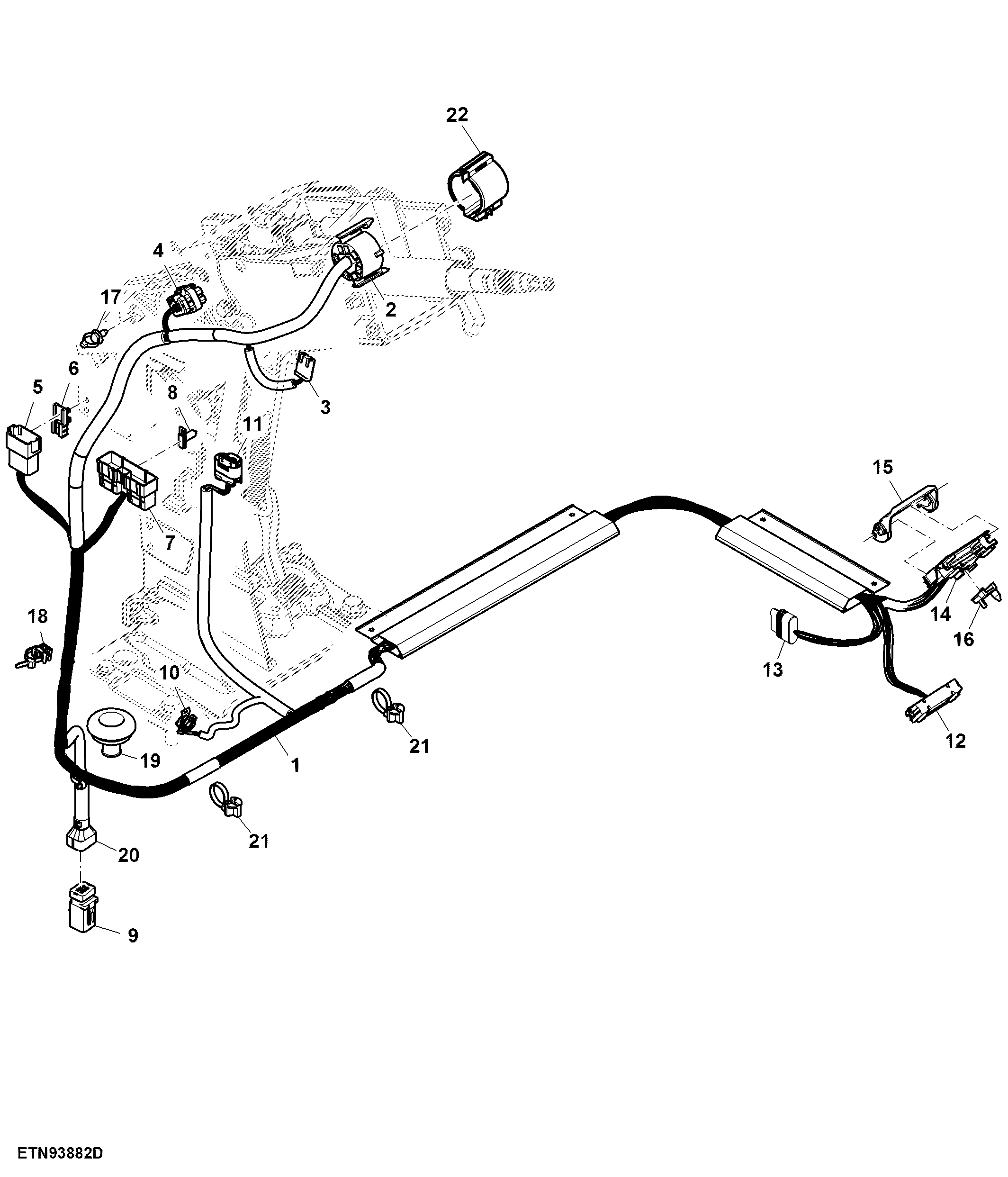

Wiring Harness, Front Control Support, W/O Backup Pump ( - 090957)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE574963	1	Wiring Harness	-
1	RE565546	1	Instrument PNL WRG Harness	ORDER RE574963
2	RWA10977	6	Repair Wire Assembly	Cavity 2, 5, 6, 1, 4, 3
2	R250370	1	Elec. Connector Housing	Key Switch S001
3	R77480	1	Electrical Connector Assy	Start Aid S301
3	RWA11076	2	Repair Wire Assembly	Cavity A, B
4	57M9786	1	Elec. Connector Housing	Steering Input Device B237
4	RWA11029	6	Repair Wire Assembly	Cavity 2, 5, 3, 6, 1, 4
5	-	1	Part 9	Left Hand Reverser A574
5	57M7682	1	Elec.Connect Locking Device	-
5	RWA11056	11	Repair Wire Assembly	Cavity 8, 1, 5, 3, 7, 9, 4, 2, 11, 12, 6
6	57M9717	1	Elec.Connect Locking Device	-
7	57M8857	1	Elec. Connector Housing	Column Inline
7	57M8859	2	Elec.Connect Locking Device	-
7	57M8860	1	Elec.Connect Locking Device	-
7	RWA11025	17	Repair Wire Assembly	Cavity B, C, F, A, K, M, T, L, R, S, N, D, J, H, G, E, P
8	57M8910	1	Clip	-
9	57M9789	1	Elec. Connector Housing	AutoTrac™
9	RWA11025	5	Repair Wire Assembly	Cavity 6, 1, 3, 4, 5
10	RWA11083	1	Repair Wire Assembly	Cavity A, B
10	57M9712	1	Elec. Connector Accessory	-
10	57M7328	1	Elec. Connector Housing	Differential Lock Switch S503
11	57M8919	1	Elec. Connector Housing	Clutch Pedal A578
11	RWA11097	6	Repair Wire Assembly	Cavity C, A, E, B, F, D
12	57M11346	1	Elec. Connector Housing	Cab Inline 2
12	RWA11096	8	Repair Wire Assembly	Cavity A2, A3, A5, A6, A10, A11, A4, A14
13	57M8851	1	Elec. Connector Housing	Foot Throttle A577
13	RWA11084	6	Repair Wire Assembly	Cavity A, B, C, D, E, F
14	RWA11100	5	Repair Wire Assembly	Cavity A7, A8, B7, B8, B9
14	RWA11100	1	Repair Wire Assembly	Cavity A9
14	RWA11095	23	Repair Wire Assembly	Cavity A1, A11, A12, A13, A14, A15, A3, A4, A5, A6, B1, B10, B11, B13, B14, B15, B2, B3, B4, B5, B6
14	57M11348	1	Elec. Connector Housing	Cab Inline 1
15	-	1	Part 33	-
16	57M11364	1	Elec. Connector Accessory	-
17	RE258807	5	Tie Band	-
18	57M9229	1	Clip	-
19	R343435	1	Grommet	-
20	57M9841	1	Elec. Connector Accessory	-
21	57M11797	2	Elec. Connector Accessory	-
22	RE576503	1	Snap Ring	-

Wiring Harness, Front Control Support, W/O Backup Pump ( - 090957)
