Steering Lines, e23™, ActiveCommand Steering™, 40K/50K, W/ Back Up Pump

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE339461	1	Oil Line	LH Steering
2	RE570432	1	Oil Line	RH Steering SUB FOR RE339462
3	T77857	16	O-Ring	-
4	R184060	2	Cover	-
5	R184066	2	Clamp	-
6	19M7798	2	Screw	M8 X 40
7	38H5002	5	Adapter Fitting	-
8	T77613	14	O-Ring	-
9	51M7041	10	O-Ring	11.300 X 2.200 mm
10	RE330046	1	Oil Line	Pilot Supply
11	38H5145	1	Elbow Fitting	-
12	38H5016	3	Elbow Fitting	-
13	RE556635	1	Oil Line	Pilot Tank
14	38H5123	1	Tee Fitting	-
15	19M7863	2	Screw	M6 X 25
16	R201229	2	Half Clamp	-
17	14M7303	2	Flange Nut	M6
18	RE556633	1	Oil Line	Pump Case Drain
19	38H5027	4	Elbow Fitting	-
20	51M7045	8	O-Ring	19.300 X 2.200 mm
21	RE320790	1	Oil Line	Back Pressure Check
22	RE325522	1	Oil Line	Back Pressure Check Return
23	38H5040	1	Tee Fitting	-
24	38H5076	2	Adapter Fitting	-
25	RE320786	1	Oil Line	Steering Supply
26	38H5017	1	Elbow Fitting	-
27	51M7043	5	O-Ring	15.300 X 2.200 mm
28	38H5010	1	Adapter Fitting	-
29	T77932	3	O-Ring	-
30	38H5175	1	Tee Fitting	-
31	RE566285	1	Oil Line	Break Load Sense to Charge Pump
32	38H5025	1	Elbow Fitting	-
33	T77814	1	O-Ring	-
34	RE320787	1	Oil Line	Steering Load Sense
35	38H5105	1	Tee Fitting	-
36	RE337611	1	Check Valve	-
37	RE566283	1	Oil Line	Park Release
38	AH76882	1	Clip	-
39	19M7783	1	Screw	M10 X 16
40	38H1415	1	Fitting	-
41	RE320791	1	Oil Line	-
42	38H5029	1	Tee Fitting	-
43	RE564195	1	Oil Line	Pump Motor Supply
44	19M7897	1	Screw	M8 X 35
45	H135156	2	Clamp	-
46	14M7298	1	Flange Nut	M8
47	RE341931	1	Adapter Fitting	-
48	38H5071	1	Elbow Fitting	-
49	38H5003	1	Adapter Fitting	-
50	38H5107	1	Elbow Fitting	-
51	RE566553	1	Oil Line	Pump Motor Outlet

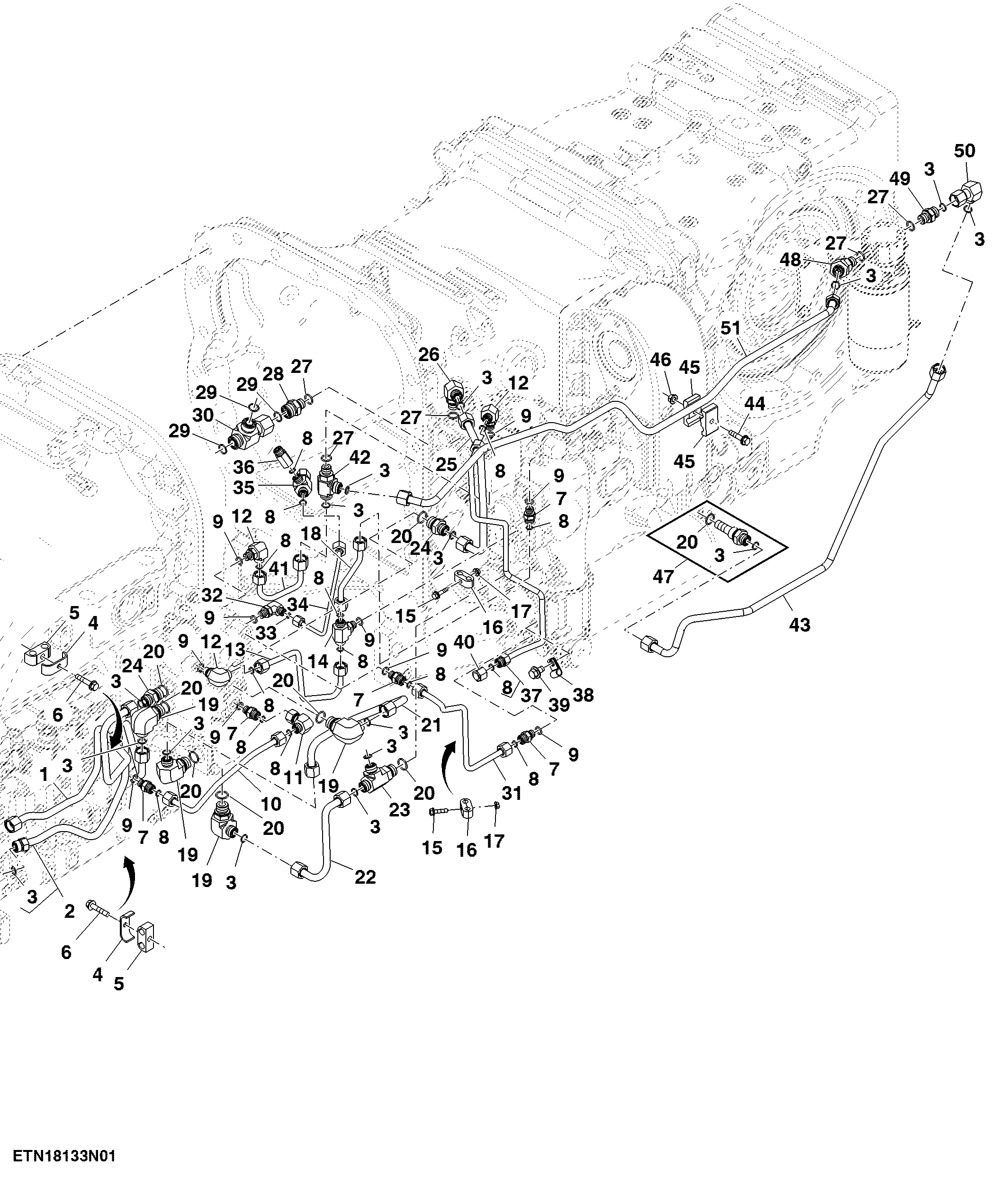

Steering Lines, e23™, ActiveCommand Steering™, 40K/50K, W/ Back Up Pump
