Открытый узел

Control Valve, AutoTrac™, W/O Secondary Pump, CommandQuad™ or IVT™

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE190805	1	Diagnostic Coupling	-
2	51M7041	6	O-Ring	11.300 X 2.200 mm
3	RE326795	1	Elec-Hyd Proportional Valve	-
4	RE244397	1	Solenoid Valve	-
5	RE276475	1	Repair Kit	-
6	RE276485	1	Repair Kit	-
7	AL229995	1	Valve Kit	-
8	AL203413	2	O-Ring Kit	-
9	RE332512	1	Manifold	Park Brake Pump-Off Manifold V100
10	RE320605	1	Check Valve	D101, Back up Pump Park Brake Check Valve
11	RE320606	1	Valve	V102, Park Brake Pressure Limiting Valve
12	RE593330	1	Hydraulic Pressure Valve	V1, Priority Valve SUB FOR RE587386, RE570179 OR RE332511
13	RE323240	1	Spool Kit	-
14	RE323241	1	Spool Kit	V104, Priority Valve Spool
15	RE570188	1	Pressure Relief Valve	SUB FOR RE274549
16	R28782	1	O-Ring	-
17	RE274550	1	Check Valve	D8, Priority Load Sense Shuttle Check Valve
18	R274578	1	O-Ring	-
19	T77613	2	O-Ring	-
20	51M7043	1	O-Ring	15.300 X 2.200 mm
21	R158521	1	O-Ring	-
22	R332525	3	Screw	-
23	24M7238	3	Washer	8.700 X 17 X 2 mm
24	RE60701	1	Diagnostic Coupling	-
25	R77175	2	Cover	-
26	T78313	1	O-Ring	-
27	14M7296	2	Flange Nut	M10
28	19M7809	7	Screw	M10 X 70
29	38H5016	1	Elbow Fitting	INCLUDES 51M7041
30	TCA18017	4	O-Ring Kit	-
31	R537157	1	Bracket	-
32	R21722	2	O-Ring	-
33	42M7089	2	Stud	-
34	RE256240	1	Elbow Fitting	-
35	RE581544	1	Pressure Sensor	B261, Main Hydraulic Pump Pressure Sensor 1 SUB FOR RE272647
36	RE317767	4	Check Valve	-
37	RE566664	3	Seal Kit	ORDER RE320606
38	RE320605	1	Check Valve	D102, Park Brake Check Valve
39	RE581544	1	Pressure Sensor	B262, Main Hydraulic Pump Pressure Sensor 2 SUB FOR RE272647
40	RE581544	1	Pressure Sensor	B263, Backup Hydraulic Pump Pressure Sensor SUB FOR RE272647

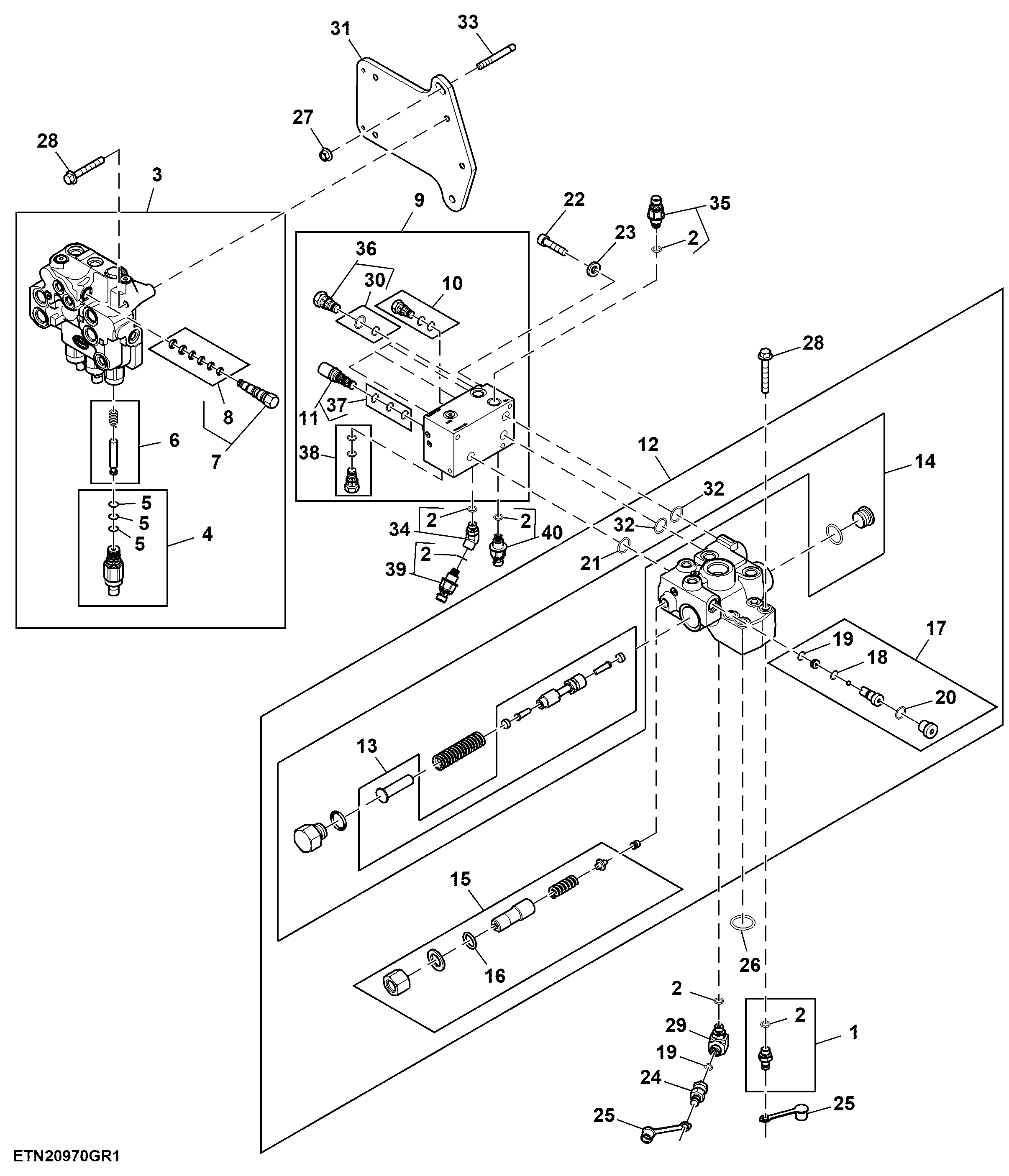

Control Valve, AutoTrac™, W/O Secondary Pump, CommandQuad™ or IVT™
