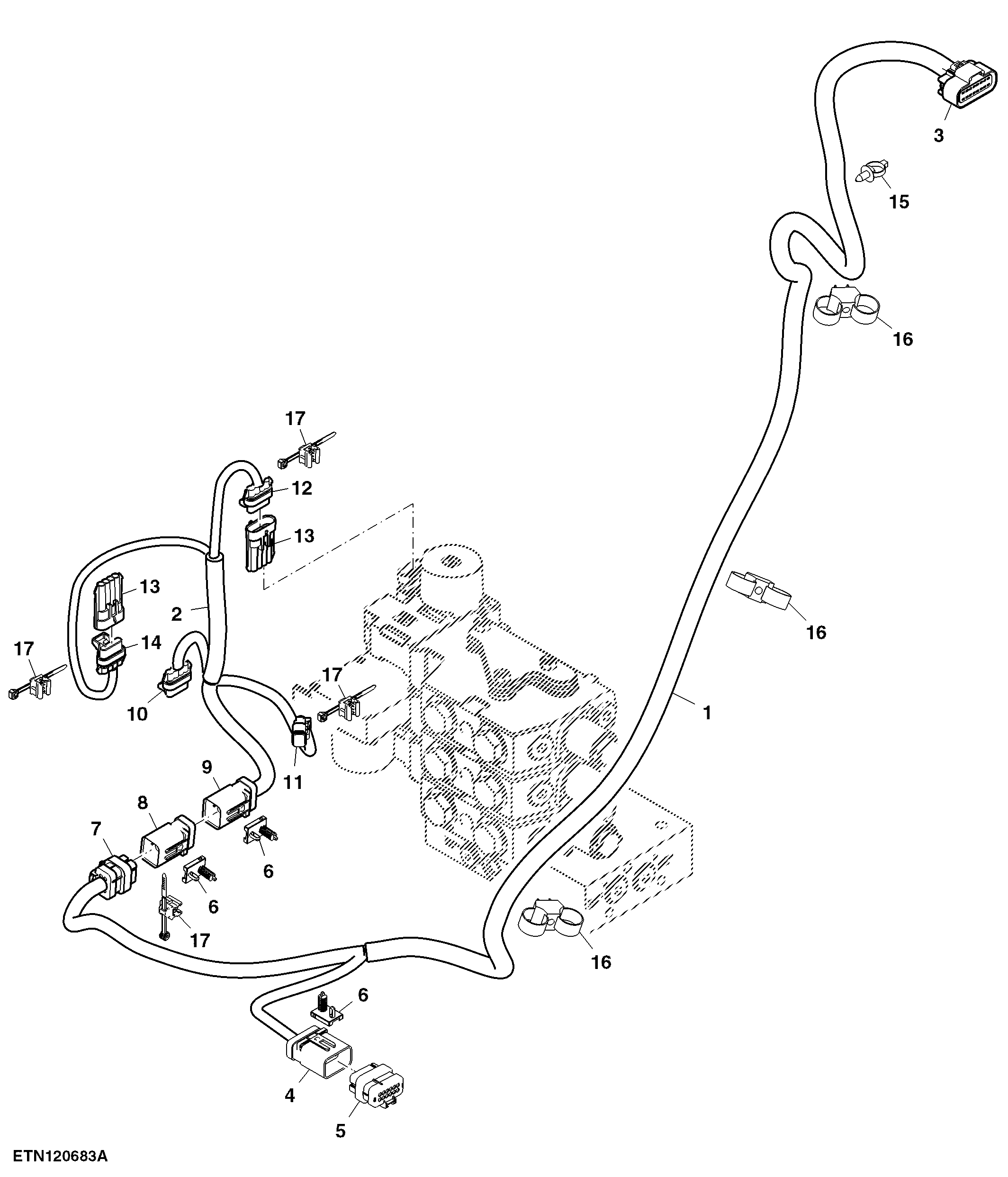

Wiring Harness, Mid Stack SCV, W/O TLS™, Group 47/48 Tires

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE586787	1	Wiring Harness	SUB FOR RE564202
2	RE564203	1	Wiring Harness	-
3	57M8484	1	Elec. Connector Housing	X830A, Chassis Interconnect
3	RWA10703	1	Repair Wire Assembly	Cavity A, B, C, D, E, F, G, H, J, K, L, M, N, P, R, S
4	57M9804	1	Elec. Connector Housing	X840B, TLS Interconnect
4	RWA11025	1	Repair Wire Assembly	Cavity 6, 1, 9, 3, 4, 5, 7, 8, 2
5	57M9800	1	Elec. Connector Housing	-
6	57M9940	3	Elec. Connector Accessory	-
7	57M9792	1	Elec. Connector Housing	X710B, Mid-Stack Interconnect
7	RWA11029	1	Repair Wire Assembly	Cavity 1, 2, 3, 4, 5, 6, 7
8	57M9796	1	Elec. Connector Housing	-
9	57M9796	1	Elec. Connector Housing	X710A, Interconnect
9	RWA11025	1	Repair Wire Assembly	Cavity 2, 3, 4, 5, 6, 7
10	57M7840	1	Elec. Connector Housing	A711, Front Hitch / SCV XI
10	RWA11083	1	Repair Wire Assembly	Cavity B, D, C, A
10	57M7469	1	Electrical Connector Assy	-
11	57M10517	1	Elec. Connector Housing	Y649, Front Hitch Sa/Da Switch Valve
11	57M8022	1	Elec.Connect Locking Device	-
11	RWA11058	1	Repair Wire Assembly	Cavity 2, 1
12	57M7840	1	Elec. Connector Housing	A712, SCV XI / SCV XII
12	RWA11083	1	Repair Wire Assembly	Cavity B, D, C, A
13	57M7839	2	Electrical Connector Assy	-
14	57M7840	1	Elec. Connector Housing	A713, SCV XII / SCV XIII
14	RWA11083	1	Repair Wire Assembly	Cavity B, D, C, A
15	RE258807	1	Tie Band	-
16	R213663	4	Clamp	-
17	AH225364	5	Clip	-

Wiring Harness, Mid Stack SCV, W/O TLS™, Group 47/48 Tires
