Открытый узел

Attachment, Add 2nd SCV, Front Hitch Ready

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

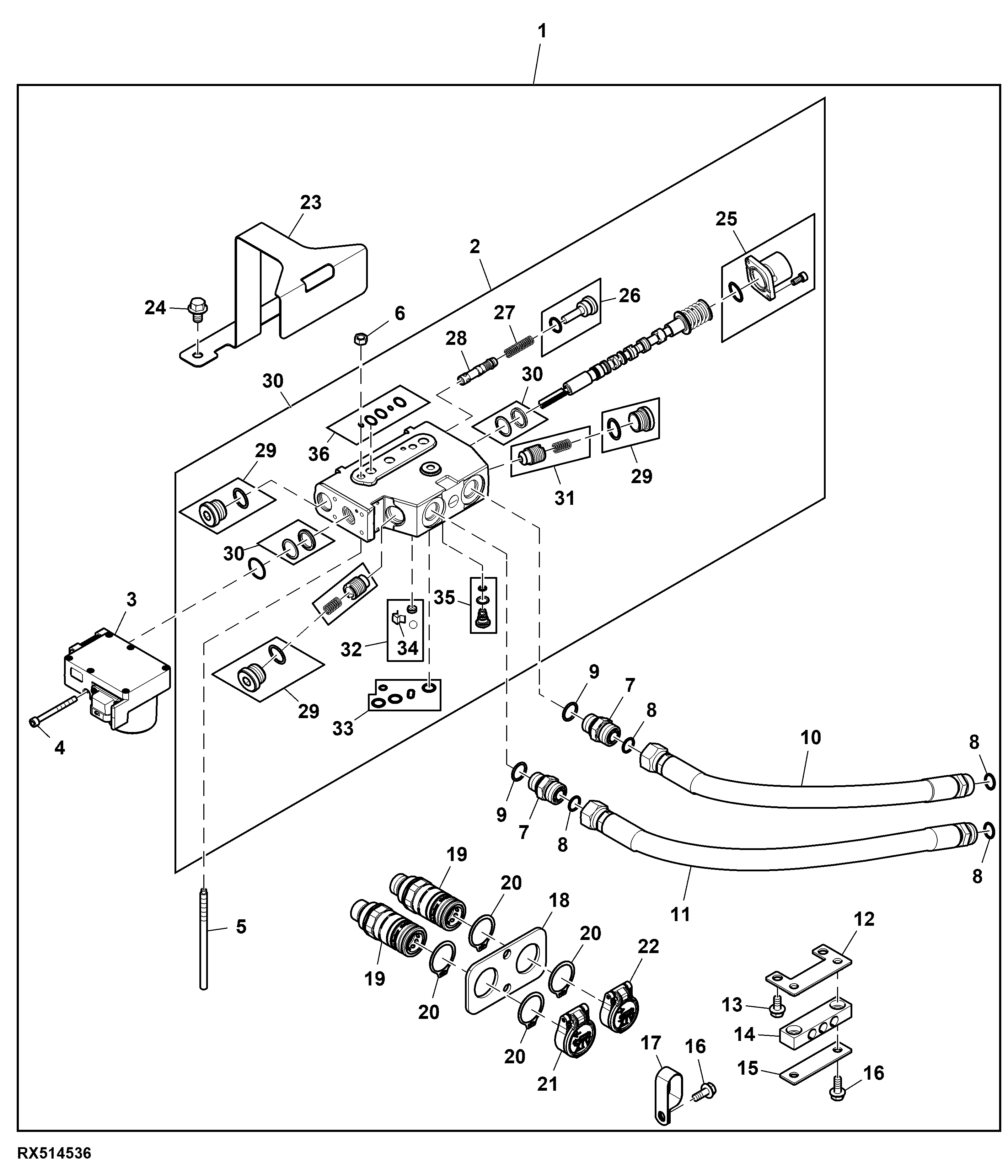

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE340780	1	Valve Kit	-
2	AL229870	1	Selective Control Valve	SUB FOR AL213976
3	AL218230	1	Motor	-
4	19M8705	3	Screw	M6 X 65
5	L173497	3	Stud	-
6	14M7273	3	Nut	M8
7	38H5004	2	Adapter Fitting	INCLUDES 51M7045
8	T77932	4	O-Ring	-
9	51M7045	2	O-Ring	19.300 X 2.200 mm
10	RE301463	1	Hose	Front Hitch Cylinder Retract INCLUDES 51M7045
11	RE301464	1	Hose	Front Hitch Cylinder Extend INCLUDES 51M7045
12	RE314861	1	Bracket	-
13	19M7865	2	Screw	M8 X 16
14	R314876	1	Block Clamp	-
15	R309233	1	Plate	-
16	19M7866	3	Screw	M8 X 20
17	F122159	1	Clamp	-
18	R309230	1	Bracket	-
19	RE307714	2	Hyd. Quick-Connect Coupler	-
20	R120797	4	Snap Ring	-
21	RE567295	1	Cover	Extend Coupler
22	RE567296	1	Cover	Retract Coupler
23	R537705	1	Bracket	-
24	19M7783	2	Screw	M10 X 16
25	AL172968	1	Cap	-
26	AL209466	1	Fitting Plug	-
27	L209245	1	Compression Spring	-
28	AL209465	1	Valve Spool	Pressure Compensator
29	AL172974	3	Fitting Plug	-
30	AL203292	2	Seal Kit	-
31	AL214530	2	Spool Kit	-
32	AL205619	1	Valve Kit	USE WITH AL213976
32	AL231130	1	Valve Kit	USE WITH AL229870
33	AL207509	1	Seal Kit	USE WITH AL213976
33	AL231108	1	Seal Kit	USE WITH AL229870
34	L205093	1	Clip	-
35	AL180447	2	Check Valve	-
36	AL209467	1	Seal Kit	USE WITH AL213976
36	AL231435	1	Seal Kit	USE WITH AL229870

Attachment, Add 2nd SCV, Front Hitch Ready

Нет текстового описания
