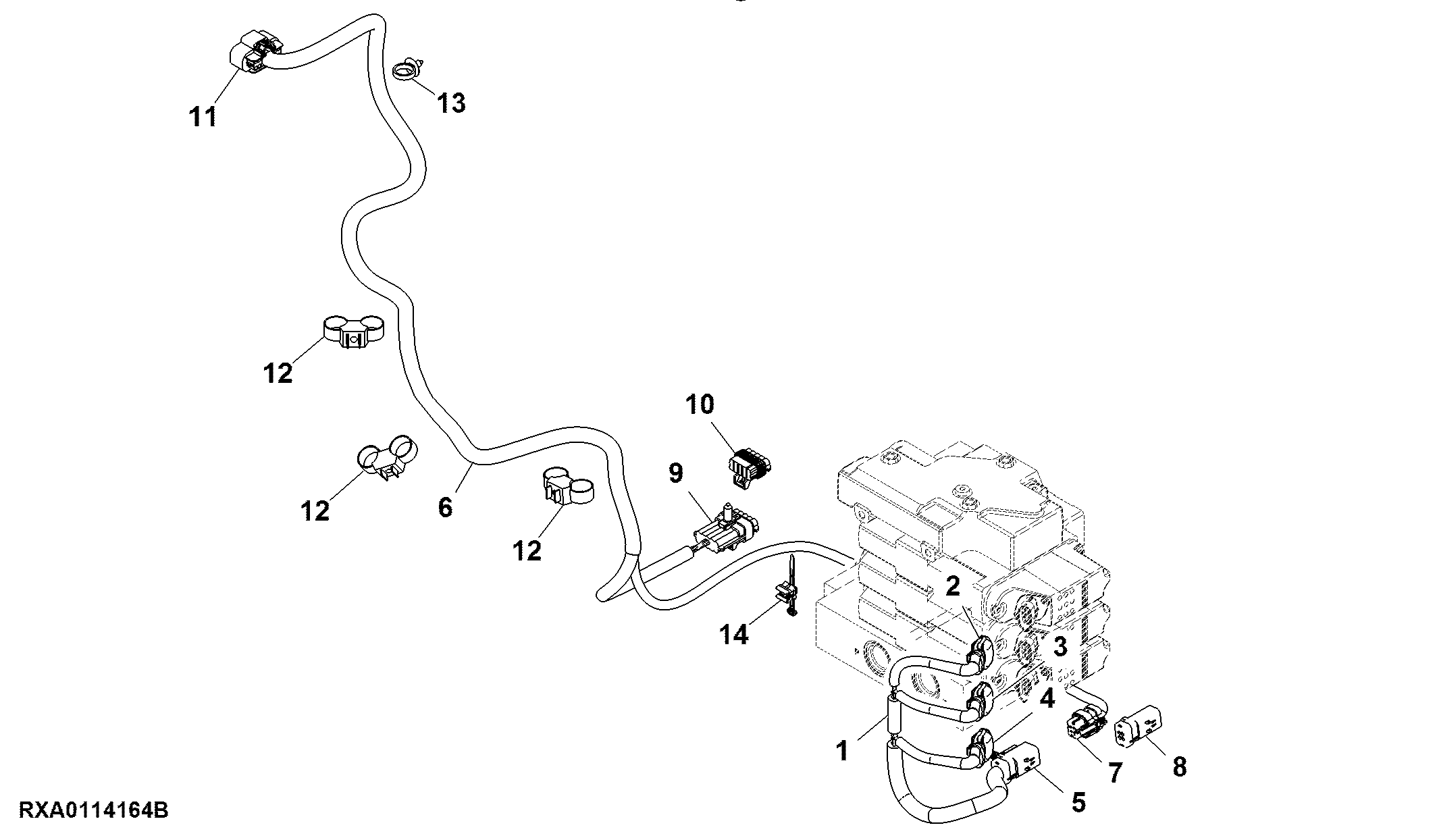

Wiring Harness (Mid Stack SCV)(MFWD)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE316707	1	Wiring Harness	-
2	57M9498	1	Elec. Connector Housing	SCV 3 or Front Hitch (USE WITH (4) 57M8621_Pins, (4) 57M7400_Seals)
2	57M9500	1	Elec. Connector Accessory	-
3	57M9498	1	Elec. Connector Housing	SCV 2 (USE WITH (4) 57M8621_Pins, (4) 57M7400_Seals)
3	57M9500	1	Elec. Connector Accessory	-
4	57M9498	1	Elec. Connector Housing	SCV 1 (USE WITH (4) 57M8621_Pins, (4) 57M7400_Seals)
4	57M9500	1	Elec. Connector Accessory	-
5	57M9821	1	Elec. Connector Housing	Mid Stack SCV Extension (USE WITH (2) 57M9813_Pins, (2) 57M9811_Pins)
6	RE316705	1	Wiring Harness	-
7	57M9817	1	Elec. Connector Housing	Mid Stack SCV Extension (USE WITH (2) 57M9807_Pins, (2) 57M9809_Pins)
8	57M9821	1	Elec. Connector Housing	Dust Cap
9	57M9213	1	Elec. Connector Housing	TLS Extension Harness (USE WITH (9) 57M7495_Pins, (9) 57M9215_Seals)
9	57M8907	1	Elec.Connect Locking Device	-
10	57M7262	1	Elec. Connector Housing	Dust Cap
10	57M8907	1	Elec.Connect Locking Device	-
11	57M8484	1	Elec. Connector Housing	Chassis Harness (USE WITH (2) 57M8300_Pins, (10) 57M8299_Pins, (2) 57M8321_Seals, (10) 57M9223_Seals)
11	57M9919	1	Elec. Connector Accessory	-
12	R213663	3	Clamp	-
13	RE258807	1	Tie Band	-
14	AH225364	1	Clip	-

Wiring Harness (Mid Stack SCV)(MFWD)

Нет текстового описания
