Wiring Harness, CommandARM™, W/ 5 and 6 SCV

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE300743	1	Cab Wiring Harness	(MECA (Machine Electronics Common Architecture) Armrest, Main)
2	57M8802	1	Elec. Connector Housing	Cab Switch Module USE WITH (15) MLX16; A900X1
2	57M8783	1	Elec. Connector Housing	-
3	57M7792	1	Electrical Connector Assy	Secondary Brake Switch USE WITH 57M9189; B883
3	57M7731	1	Electrical Connector Assy	-
4	57M7713	1	Electrical Connector Assy	Inverter USE WITH (2) MLXM19; A186
4	57M7718	1	Electrical Connector Assy	-
5	57M7716	1	Electrical Connector Assy	Armrest Control Unit USE WITH (9) MLXGF19; A923X1
6	57M7256	1	Elec. Connector Housing	Neutral Start Switch USE WITH (2) 57M7252 AND (2) 57M7258; S301
6	57M7289	1	Elec.Connect Locking Device	-
7	57M7470	1	Elec. Connector Housing	Secondary Display USE WITH (15) MLX16; A901X1
7	57M7474	1	Elec. Connector Terminal	-
8	57M11241	1	Elec. Connector Housing	Cab Connection X570
9	RE300744	1	Cab Wiring Harness	(MECA (Machine Electronics Common Architecture), Armrest, Standard)
10	57M7708	1	Electrical Connector Assy	SCV III USE WITH (5) MLX16; R702
11	57M7712	1	Electrical Connector Assy	IMS Sequence Switch - 2 USE WITH (27) MLX16; S510
11	57M7718	1	Electrical Connector Assy	-
12	57M7713	1	Electrical Connector Assy	IMS Sequence Switch - 1 USE WITH (4) MLXM19; S509
12	57M7718	1	Electrical Connector Assy	-
13	57M7717	1	Electrical Connector Assy	Armrest Control Unit USE WITH (23) MLXGF19; A923X2
13	57M7722	1	Electrical Connector Assy	-
14	57M7470	1	Elec. Connector Housing	Armrest Control Unit USE WITH (23) MLXGF19; A923X3
14	57M7474	1	Elec. Connector Terminal	-
15	57M7712	1	Electrical Connector Assy	Rear PTO Switch USE WITH (27) MLX16; S501
15	57M7718	1	Electrical Connector Assy	-
16	57M8906	1	Elec. Connector Housing	Hand Throttle USE WITH (6) 57M7830; A575
17	RE283569	1	Monitor Wiring Harness	-
18	RE306874	1	Cab Wiring Harness	(Armrest, 5 and 6 SCV (Front Hitch and PTO))
19	57M7470	1	Elec. Connector Housing	Armrest Control Unit A923X7
19	57M7474	1	Elec. Connector Terminal	-
20	57M7712	1	Electrical Connector Assy	Front PTO Switch
20	57M7718	1	Electrical Connector Assy	-
21	57M7708	1	Electrical Connector Assy	SCV VI R705
22	RE258807	2	Tie Band	-
23	57M9212	2	Clip	-
24	57M11061	1	Clip Kit	-
25	57M11166	1	Elec. Connector Accessory	-
26	57M7708	1	Electrical Connector Assy	SCV II USE WITH (6) MLX16; R701
27	57M7708	1	Electrical Connector Assy	SCV I USE WITH (6) MLX16; R700
28	57M7708	1	Electrical Connector Assy	Rear Hitch USE WITH (5) MLX16; R700
29	57M7708	1	Electrical Connector Assy	SCV IV USE WITH (5) MLX16; R703
30	57M7708	1	Electrical Connector Assy	SCV V R704

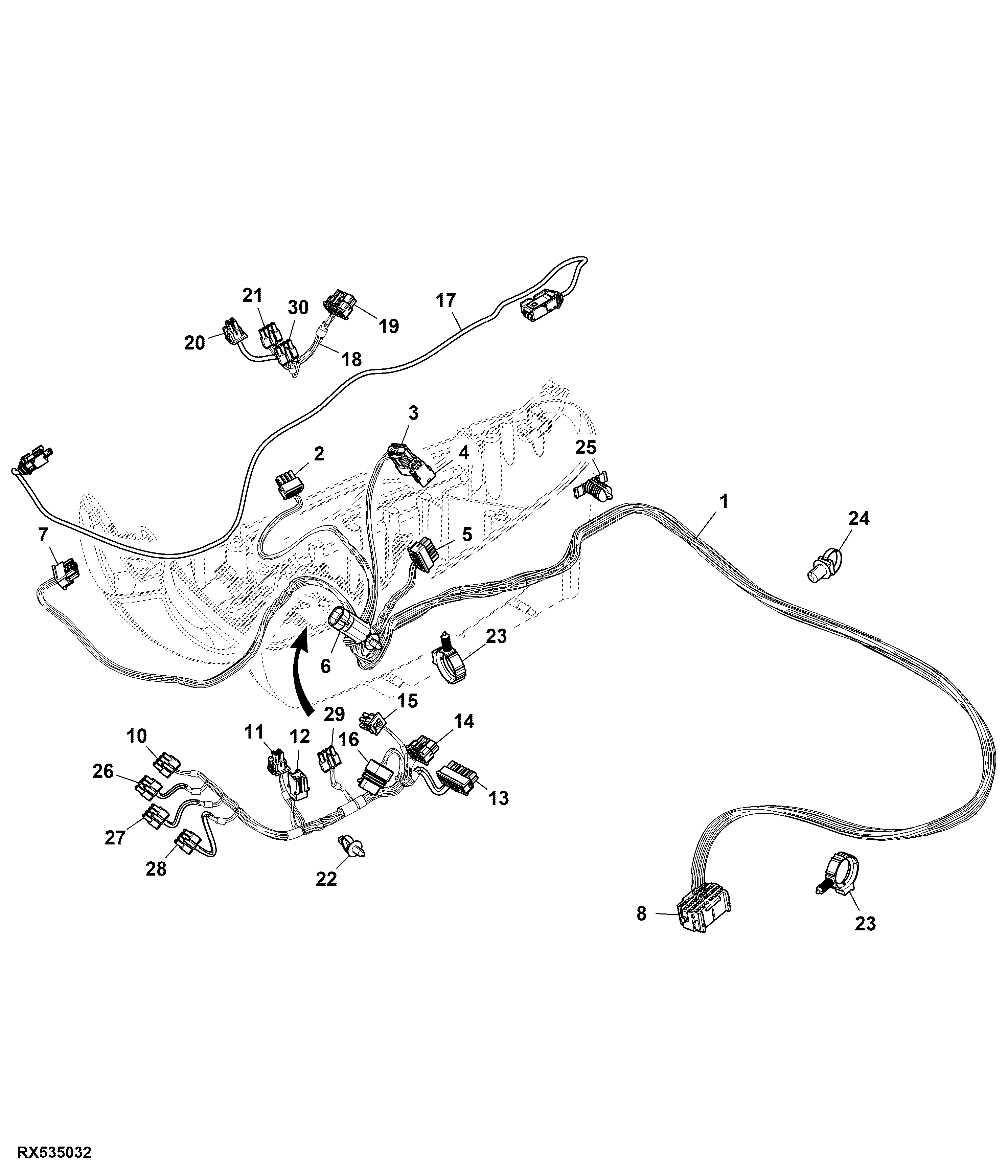

Wiring Harness, CommandARM™, W/ 5 and 6 SCV
