Lines, Hydraulic Pump, W / TLS™, W / Mid Stack, IVT™, 472 mm Axle

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	RE325469	1	Oil Line	Pump Inlet
2	RE317457	1	Oil Line	SCV Return
3	RE317460	1	Oil Line	SCV Supply
4	RE321293	1	Oil Line	SCV LS (SLS)
5	RE331535	1	Oil Line	Lube Supply
6	38H5016	1	Elbow Fitting	-
7	51M7041	2	O-Ring	11.300 X 2.200 mm
8	T77613	4	O-Ring	-
9	38H5002	1	Adapter Fitting	-
10	RE264764	1	Check Valve	-
11	H108291	2	Clamp	-
12	19M7785	2	Screw	M10 X 25
13	F3450R	2	O-Ring	-
14	38H1093	1	Elbow Fitting	-
15	51M7048	1	O-Ring	29.600 X 2.900 mm
16	T76938	6	O-Ring	-
17	A4730R	2	O-Ring	-
18	38H1209	1	Tee Fitting	-
19	38H5014	1	Adapter Fitting	-
20	51M7047	2	O-Ring	23.600 X 2.900 mm
21	RE321393	1	Oil Line	ORDER RE334486
21	RE334486	1	Hydraulic Hose	-
22	R323657	1	Housing	-
23	RE208005	1	Intake Valve	Shuttle Check Valve
24	51M7040	1	O-Ring	9.300 X 2.200 mm
25	T77814	5	O-Ring	-
26	RE60700	1	Diagnostic Coupling	-
27	R325460	1	Spacer	ORDER R345287
28	U12331	1	O-Ring	-
29	R375R	1	O-Ring	USE WITH R325460
30	19M9128	2	Screw	M10 X 75
31	RE332937	1	Oil Line	Oil Line, Case Drain USE WITH R325460
32	RE325138	1	Oil Line	-
33	19M7866	3	Screw	M8 X 20
34	H114897	2	Clamp	-
35	19M7799	2	Screw	M8 X 45
36	14M7298	3	Flange Nut	M8
37	R129325	2	Clamp	-
38	T102934	1	Clamp	-
39	T77858	1	O-Ring	-
40	19M7897	1	Screw	M8 X 35
41	R345287	1	Spacer	-
42	R77175	1	Cover	-
43	38H5019	1	Elbow Fitting	-
44	38H5215	1	Union Fitting	-
45	38H5110	1	Tee Fitting	-
46	38H5362	1	Adapter Fitting	-

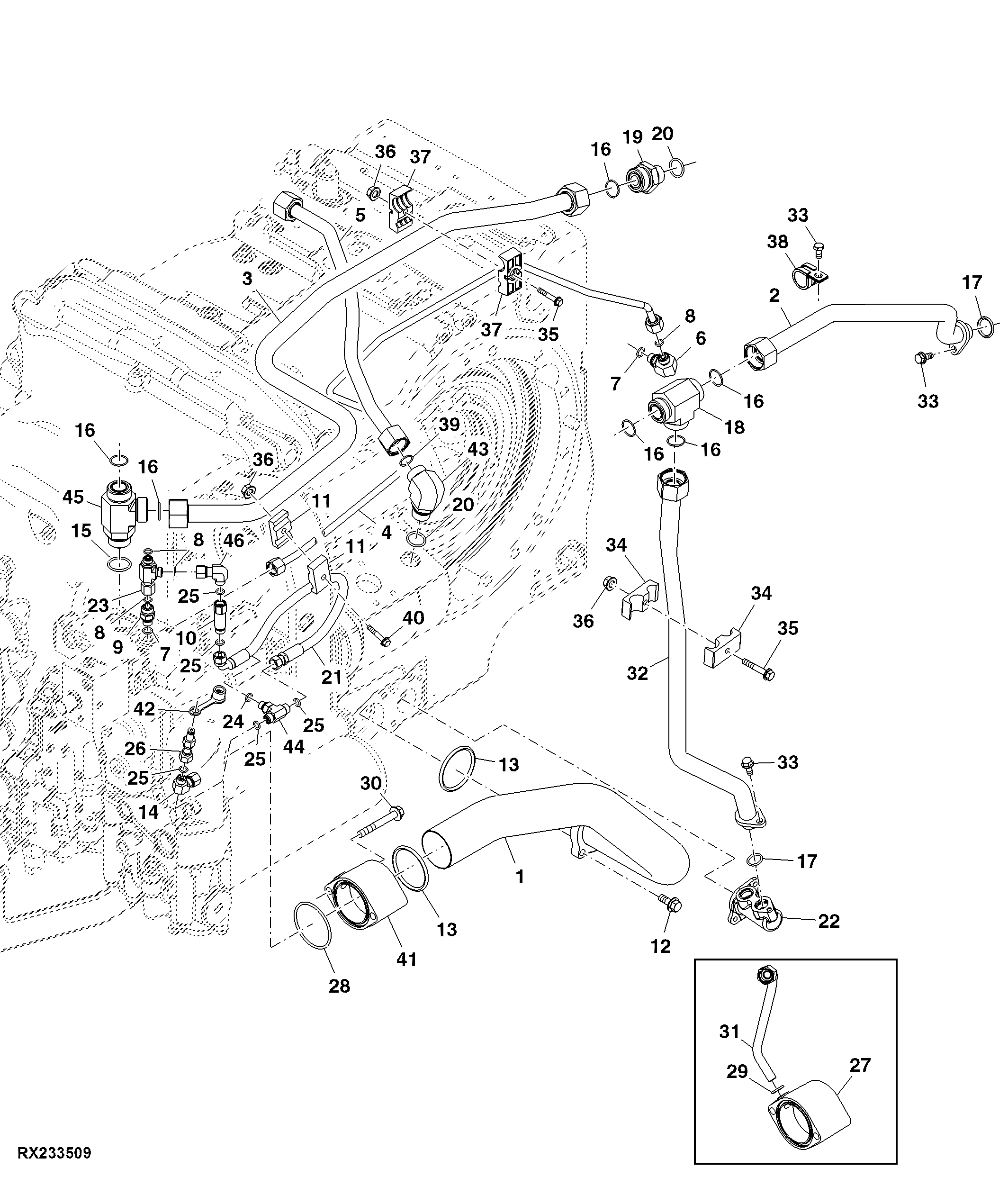

Lines, Hydraulic Pump, W / TLS™, W / Mid Stack, IVT™, 472 mm Axle
