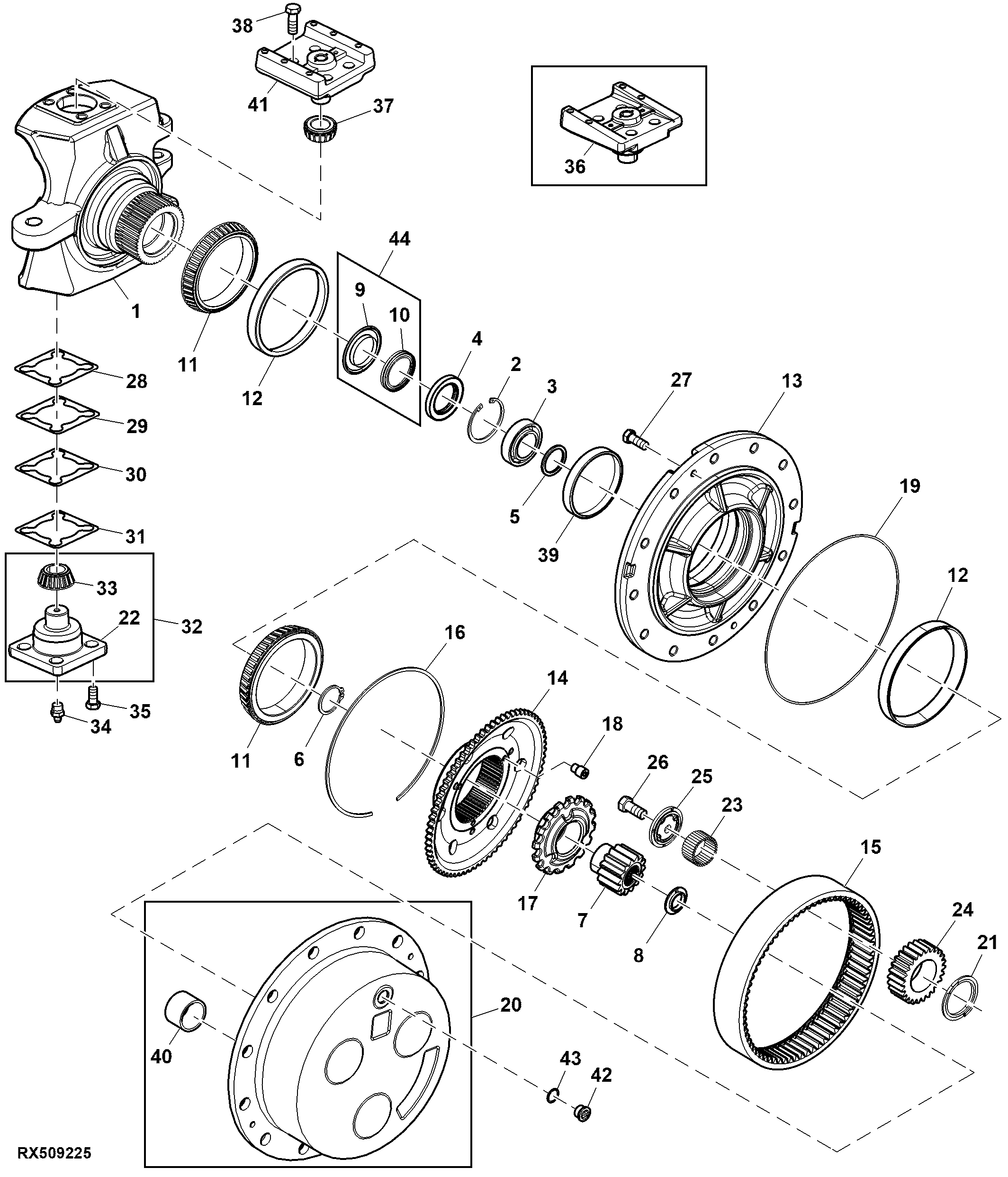

Final Drive, Front Axle, TLS™, Standard, LH Illustrated

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R290911	1	Knuckle	RH
1	R290910	1	Knuckle	LH
2	40M1873	1	Snap Ring	-
3	JD9346	1	Ball Bearing	-
4	RE65591	1	Seal	-
5	R250848	1	Washer	-
6	40M7302	1	Snap Ring	-
7	R130078	1	Pinion	Z = 14
8	R238225	1	Thrust Washer	USE WITH RE556204 OR R296945
8	R539188	1	Thrust Washer	USE WITH RE564018
9	R157679	1	Oil Slinger	ORDER RE193099
10	RE65592	1	Seal	ORDER RE193099
11	JD9050	2	Bearing Cone	-
12	JD9115	2	Bearing Cup	-
13	R135866	1	Hub	-
14	R159931	1	Splined Coupling	-
15	R554715	1	Ring Gear	Z=70, SUB FOR R237706
16	R99673	1	Snap Ring	-
17	R543207	1	Nut	ORDER R560689; SUB FOR R171858
17	R560689	1	Nut	-
18	R91842	1	Screw	-
19	R87047	1	Ring	-
20	RE564018	1	Planet Pinion Carrier	SUB FOR RE556204 OR R296945; ALSO ORDER R539188
21	R168091	3	Thrust Washer	USE WITH R296945
21	R332855	3	Thrust Washer	USE WITH RE564018 OR RE556204
22	R135861	1	Kingpin	-
23	R121283	99	Needle Roller	-
24	R121282	3	Planet Pinion	Z=26
25	R92871	3	Retainer	-
26	R112888	3	Cap Screw	-
27	19M8011	2	Cap Screw	M12 X 30
28	R131676	1	Shim	TK = 1.0 mm
29	R131675	1	Shim	TK = 0.25 mm
30	R131673	1	Shim	TK = 0.13 mm
31	R131985	1	Shim	TK = 0.08 mm
32	RE71437	1	Kingpin	ORDER R135861 AND JD8930
33	JD8930	1	Bearing Cone	-
34	JD7759	1	Lubrication Fitting	-
35	19M7946	4	Cap Screw	M20 X 40
36	R331176	1	Kingpin	ORDER R555202
37	JD8968	1	Bearing Cone	-
38	19M8002	4	Cap Screw	M20 X 55
39	RE154869	1	Seal	-
40	R121362	3	Bearing Race	-
41	R555202	1	Kingpin	ORDER R558837
41	R558837	1	Kingpin	-
42	R98012	1	Fitting Plug	-
43	P47889	1	O-Ring	-
44	RE193099	1	Seal	-
