Открытый узел

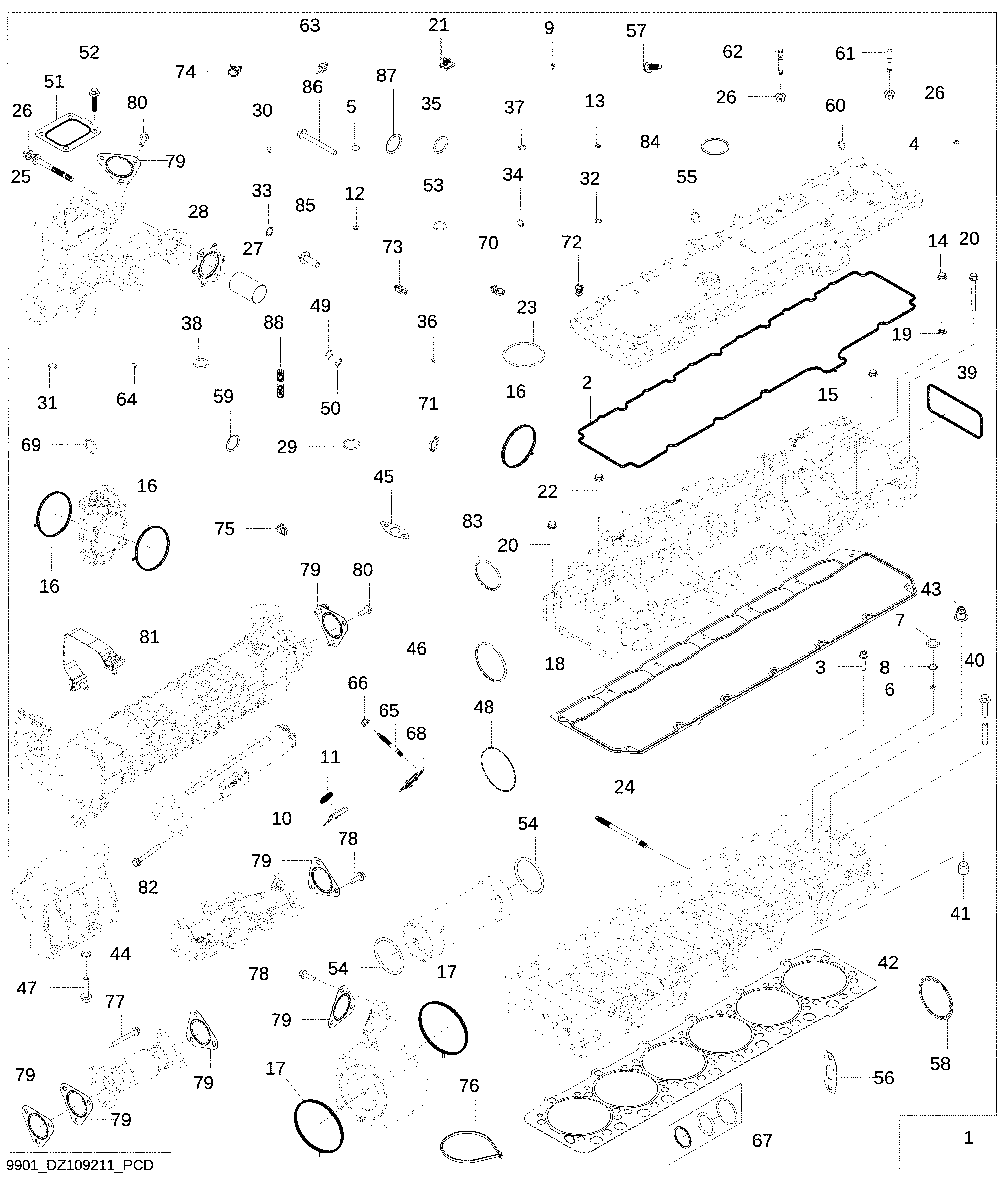

9901 Gasket Kit, Cylinder Head Removal

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	DZ109211	1	Gasket Kit	Also Order (2) Clips, Injector High Pressure Fuel Lines, Side Feed Tubes And Cylinder Head Bolt Kit SUB FOR RE542627
2	R526607	1	Seal	-
3	RE528096	6	Screw With Washer	-
4	51M7094	6	O-Ring	8.100 X 1.600 mm
5	51M7095	13	O-Ring	11.300 X 2.200 mm
6	R131051	6	Washer	-
7	R505452	6	O-Ring	-
8	R74354	6	O-Ring	-
9	R63548	22	O-Ring	-
10	DZ111677	1	Clip	SUB FOR R528718
11	R529072	1	Sealing Ring	Fuel Injector Connect
12	R534806	5	O-Ring	-
13	R528735	7	O-Ring	-
14	19M10075	7	Screw	M8 X 110
15	19M10270	1	Screw	M8 X 55
16	R528163	3	Gasket	-
17	R528304	2	Seal	Exhaust Gas Recirculation Mixer
18	R532724	1	Gasket	-
19	R548750	7	Sealing Washer	-
20	19M10219	7	Screw	M8 X 80
21	57M9940	13	Elec. Connector Accessory	-
22	R530543	1	Screw	-
23	M4236T	1	O-Ring	-
24	DZ104991	1	Stud	-
25	-	12	Part 25	ORDER R521323
25	R521323	12	Screw	-
26	R539762	18	Flange Nut	-
27	R522574	6	Sleeve	Exhaust Liner
28	R534605	6	Gasket	Exhaust Manifold
29	T122075	1	O-Ring	-
30	T77613	15	O-Ring	-
31	51M7096	3	O-Ring	13.300 X 2.200 mm
32	R528719	4	O-Ring	-
33	R79915	5	O-Ring	-
34	T15712	5	O-Ring	-
35	R71732	4	O-Ring	-
36	51M7040	1	O-Ring	9.300 X 2.200 mm
37	51M7041	8	O-Ring	11.300 X 2.200 mm
38	R47153	2	O-Ring	-
39	DZ115055	1	Gasket	Thermostat Housing SUB FOR R515407 OR R527592
40	R521261	6	Cap Screw	-
41	R42340	2	Bushing	-
42	DZ111356	1	Engine Cylinder Head Gasket	SUB FOR R525541
43	RE529187	24	Seal	Valve Stem Seal Assembly
44	24M7028	4	Washer	10.500 X 20 X 2 mm
45	R521158	1	Gasket	Turbo Oil Return
46	R528112	3	Seal	Direct Ship
47	R528196	4	Cap Screw	-
48	R528247	1	O-Ring Kit	-
49	R534283	1	O-Ring	-
50	R534793	1	O-Ring	-
51	R535094	1	Gasket	-
52	R537096	4	Cap Screw	-
53	R56466	5	O-Ring	-
54	R86588	2	O-Ring	-
55	51M7045	3	O-Ring	19.300 X 2.200 mm
56	R529141	1	Gasket	Turbo Oil Return
57	R534121	4	Cap Screw	-
58	R538777	2	Gasket	Interstage Duct
59	R63185	1	O-Ring	-
60	T77932	6	O-Ring	-
61	R530855	4	Stud	-
62	R543352	2	Stud	-
63	RE258807	23	Tie Band	-
64	51M7039	2	O-Ring	8.100 X 1.600 mm
65	R534281	2	Stud	-
66	R534282	2	Flange Nut	-
67	RE539467	1	O-Ring	-
68	RE554856	1	Gasket	-
69	U17409	1	O-Ring	-
70	57M11231	3	Clip Kit	-
71	R44302	8	Tie Band	-
72	RE564777	4	Tie Band	High Temperature
73	RE553338	2	Tie Band	-
74	RE566207	3	Tie Band	-
75	57M9229	2	Clip	-
76	R76477	1	Tie Band	-
77	19M7802	3	Screw	M8 X 65
78	19M7867	6	Screw	M8 X 25
79	R526831	7	Gasket	Exhaust Gas Recirculation System
80	R542509	6	Cap Screw	SUB FOR R530675
81	RE540804	3	Clamp	-
82	19M7803	3	Screw	M8 X 70
83	R528237	1	Sealing Ring	Exhaust Gas Recycling Valve
84	R56905	7	O-Ring	-
85	19M7866	2	Screw	M8 X 20
86	19M8318	1	Screw	M8 X 45
87	R566072	4	O-Ring	-
88	R61303	2	Stud	-
89	R56905	1	O-Ring	-
90	19M7803	1	Screw	M8 X 70
91	R528237	1	Sealing Ring	-

9901 Gasket Kit, Cylinder Head Removal

Нет текстового описания
