Открытый узел

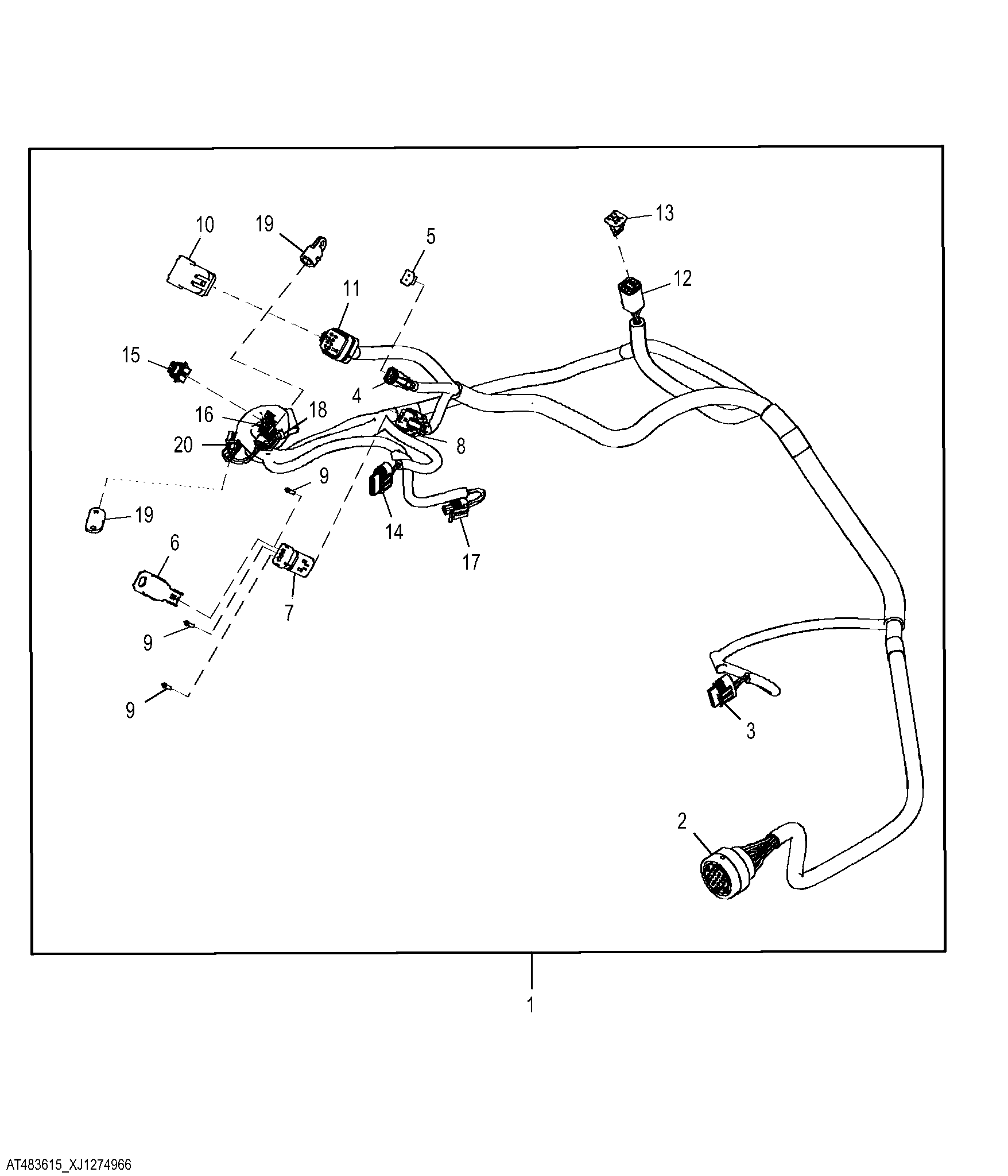

Steering Column Front Console Wiring Harness

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT483615	1	Cab Wiring Harness	Steering Column Front Console Wiring
2	57M7751	1	Elec. Connector Housing	Front Console To Load Center Inline, X14
2	R78069	4	Elec. Connector Cavity Plug	-
2	R78065	27	Elec. Connector Terminal	-
3	57M9207	1	Elec. Connector Housing	Accelerator Pedal Position Sensor, B14
3	57M9572	3	Elec. Connector Terminal	-
3	57M7741	3	Elec. Connector Terminal	-
4	57M8021	1	Electrical Connector Assy	Horn Switch, Steering Column, S23
4	R78065	2	Elec. Connector Terminal	-
4	57M8022	1	Elec.Connect Locking Device	-
5	57M8022	1	Elec.Connect Locking Device	-
6	57M8736	1	Elec. Connector Accessory	-
7	57M9738	1	Elec. Connector Housing	-
8	57M9734	1	Elec. Connector Housing	Turn Signal Switch, S25
8	R78065	3	Elec. Connector Terminal	-
8	57M8736	1	Elec. Connector Accessory	-
8	57M9738	1	Elec. Connector Housing	-
8	57M9814	3	Elec. Connector Cavity Plug	-
9	57M9814	3	Elec. Connector Cavity Plug	-
10	57M11337	1	Elec. Connector Accessory	-
11	57M11337	1	Elec. Connector Accessory	-
11	57M9756	1	Elec. Connector Housing	Steering Column Fnr/Gear Range Select Switch, S10
11	R78065	8	Elec. Connector Terminal	-
12	57M8012	1	Electrical Connector Assy	Front Wiper Motor, M3
12	R78065	5	Elec. Connector Terminal	-
12	R78069	1	Elec. Connector Cavity Plug	-
12	57M8013	1	Elec.Connect Locking Device	-
13	57M8013	1	Elec.Connect Locking Device	-
14	57M9207	1	Elec. Connector Housing	Brake Pedal Position Sensor, B33
14	57M9572	3	Elec. Connector Terminal	-
14	57M7741	3	Elec. Connector Terminal	-
15	57M9883	2	Elec. Connector Cable Seal	-
15	57M9712	1	Elec. Connector Accessory	-
15	57M10770	2	Elec. Connector Terminal	-
15	57M7328	1	Elec. Connector Housing	Differential Lock Foot Switch, S13
16	57M9712	1	Elec. Connector Accessory	-
17	57M7796	1	Elec. Connector Housing	Service Brake Valve Pressure Sensor, B1
17	57M10925	3	Elec. Connector Terminal	-
18	57M7796	1	Elec. Connector Housing	Service Brake Accumulator Pressure Sensor, Front Axel, B27
18	57M10925	3	Elec. Connector Terminal	-
18	57M11529	1	Elec. Connector Accessory	-
19	57M11529	2	Elec. Connector Accessory	-
20	57M7796	1	Elec. Connector Housing	Service Brake Accumulator Pressure Sensor, Rear Axle, B26
20	57M10925	3	Elec. Connector Terminal	-
20	57M11529	1	Elec. Connector Accessory	-

Steering Column Front Console Wiring Harness

Нет текстового описания
