Right Hand Stackable Boom/Bucket Controls Wiring Harness and Connectors

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R44302	1	Tie Band	-
2	AT484552	1	Cab Wiring Harness	-
3	57M7751	1	Elec. Connector Housing	Joystick/Stackable Control to Load Centre Inline, X12B
3	R78065	28	Elec. Connector Terminal	-
3	57M7542	2	Elec. Connector Terminal	-
3	R78069	1	Elec. Connector Cavity Plug	-
4	R78065	1	Elec. Connector Terminal	-
4	57M7542	2	Elec. Connector Terminal	-
4	57M9734	1	Elec. Connector Housing	Seat, A39
5	57M9838	1	Elec. Connector Accessory	-
6	57M11333	1	Elec. Connector Accessory	-
7	57M9772	1	Elec. Connector Housing	Seat Belt Switch, S31
7	R78065	2	Elec. Connector Terminal	-
8	T380249	1	Elec. Connector Accessory	-
9	R44302	1	Tie Band	-
10	57M10265	1	Elec.Connect Locking Device	Turn Signal Switch, S26
10	57M7771	6	Elec. Connector Terminal	-
10	57M11214	5	Elec. Connector Terminal	-
11	57M10346	2	Elec. Connector Housing	-
12	57M9130	2	Electrical Connector Assy	-
13	57M10265	1	Elec.Connect Locking Device	Counter Switch, S18
13	57M11214	6	Elec. Connector Terminal	-
13	57M7771	6	Elec. Connector Terminal	-
14	57M11335	1	Elec. Connector Accessory	-
15	57M9817	1	Elec. Connector Housing	Four Function EH Joystick Assembly 1, A34-1
15	57M8263	4	Elec. Connector Terminal	-
16	57M9786	1	Elec. Connector Housing	EH Joystick Base Assembly (Single Lever), A32
16	57M8263	6	Elec. Connector Terminal	-
17	57M9800	1	Elec. Connector Housing	Three Function EH Joystick Assembly, A33
17	57M8263	12	Elec. Connector Terminal	-
18	R44302	3	Tie Band	-

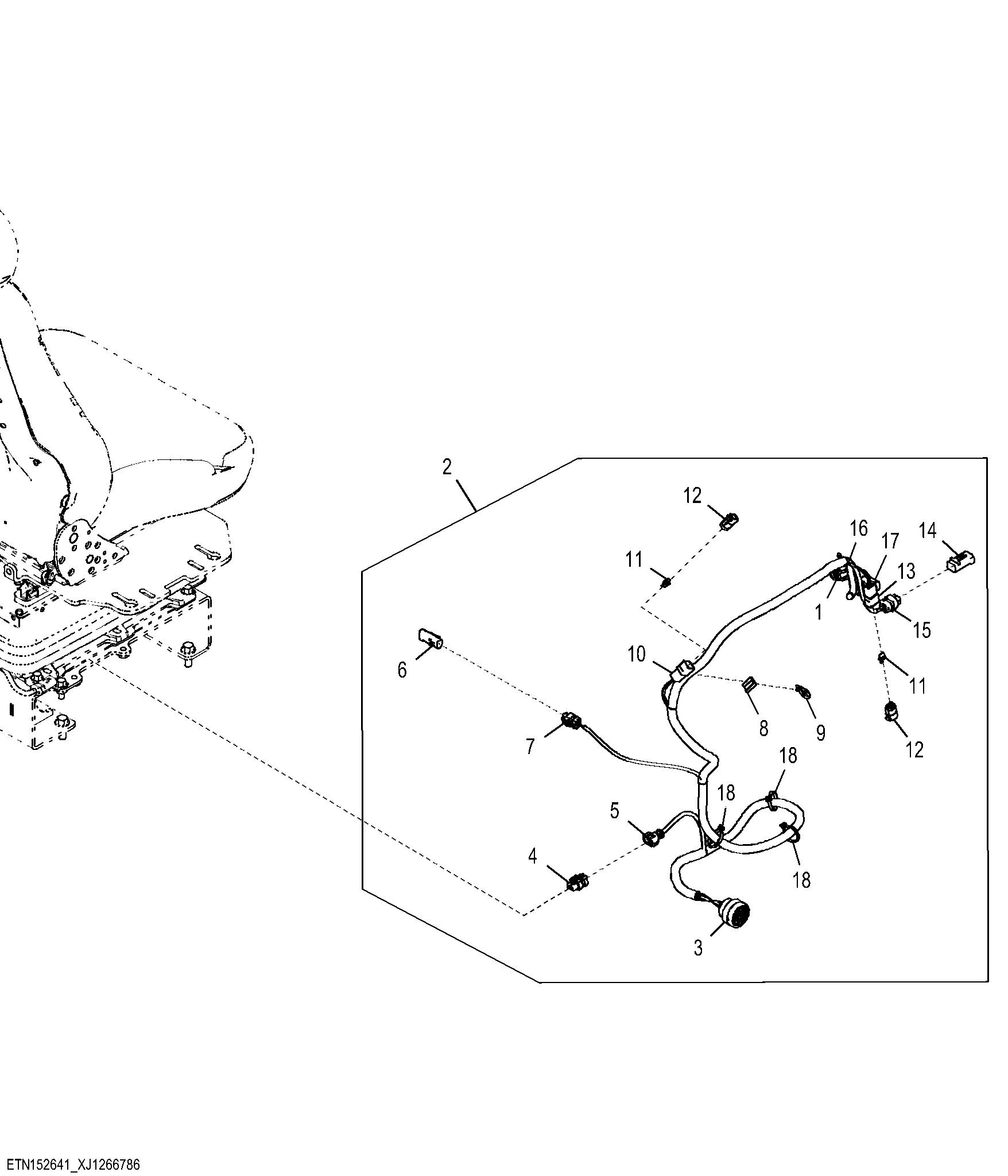

Right Hand Stackable Boom/Bucket Controls Wiring Harness and Connectors

Нет текстового описания
