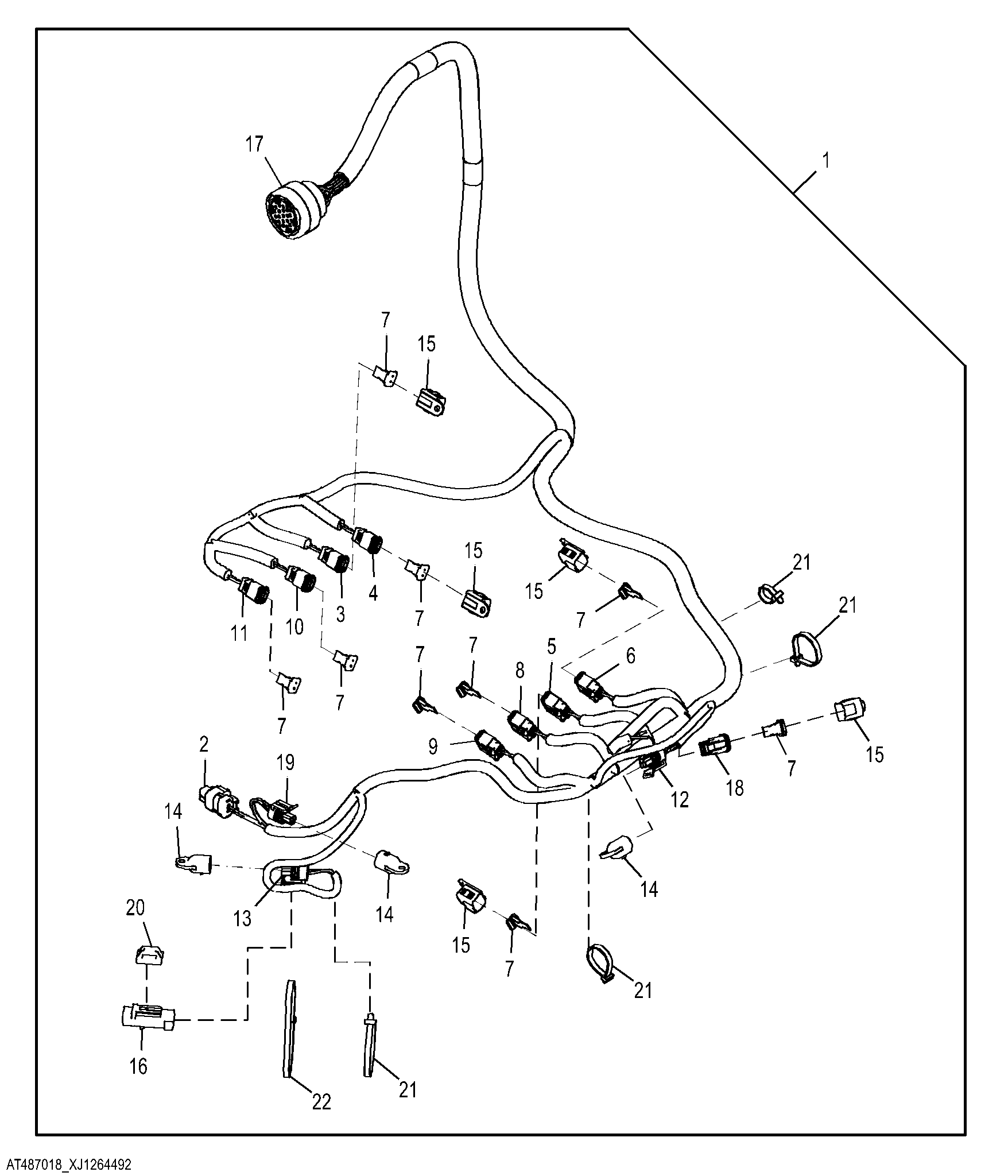

Loader Frame Jumper Wiring Harness ( - 12629)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT530110	1	Wiring Harness	Loader Frame Jumper Wiring Harness
1	AT487018	1	Wiring Harness	Loader Frame Jumper Wiring Harness, ORDER AT530110
2	57M9808	2	Elec. Connector Terminal	-
2	57M9727	1	Elec. Connector Housing	Front Axle Oil Temperature Sensor, B73
3	57M8021	1	Electrical Connector Assy	Third Function Auxiliary Solenoid A, Y81
3	R78065	2	Elec. Connector Terminal	-
4	57M8021	1	Electrical Connector Assy	Fourth Function Auxiliary Solenoid A, Y83
4	R78065	2	Elec. Connector Terminal	-
5	57M8021	1	Electrical Connector Assy	Third Function Auxiliary Solenoid B, Y82
5	R78065	2	Elec. Connector Terminal	-
6	R78065	2	Elec. Connector Terminal	-
6	57M8021	1	Electrical Connector Assy	Fourth Function Auxiliary Solenoid B, Y84
7	57M8022	9	Elec.Connect Locking Device	-
8	57M8021	1	Electrical Connector Assy	Bucket Curl Solenoid 1, Y53
8	R78065	2	Elec. Connector Terminal	-
9	57M8021	1	Electrical Connector Assy	Boom Raise Solenoid 1, Y57
9	R78065	2	Elec. Connector Terminal	-
10	57M8021	1	Electrical Connector Assy	Bucket Dump Solenoid 1, Y51
10	R78065	2	Elec. Connector Terminal	-
11	57M8021	1	Electrical Connector Assy	Boom Lower Solenoid 1, Y55
11	R78065	2	Elec. Connector Terminal	-
12	57M7796	1	Elec. Connector Housing	Head End Boom Cylinder Pressure Sensor, B64
12	57M10925	3	Elec. Connector Terminal	-
13	57M7796	1	Elec. Connector Housing	Rod End Boom Cylinder Pressure Sensor, B63
13	57M10925	3	Elec. Connector Terminal	-
14	57M11529	3	Elec. Connector Accessory	-
15	57M11230	5	Elec. Connector Accessory	-
16	57M11333	1	Elec. Connector Accessory	-
17	R78066	27	Elec. Connector Terminal	-
17	R78069	4	Elec. Connector Cavity Plug	-
17	57M8468	1	Elec. Connector Housing	Loader Frame To Jumper Harness, X94B
18	57M8021	1	Electrical Connector Assy	Pilot Enable Solenoid, Y14B
18	R78065	2	Elec. Connector Terminal	-
19	57M7796	1	Elec. Connector Housing	Load Sense Pressure Sensor, B65B
19	57M10925	3	Elec. Connector Terminal	-
20	T380249	1	Elec. Connector Accessory	-
21	R44302	4	Tie Band	-
22	R44302	6	Tie Band	-

Loader Frame Jumper Wiring Harness ( - 12629)
