Diesel Exhaust Filter (DEF) Tank and Lines

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT458162	1	DEF Tank	-
2	AT409249	1	Drain Plug	-
3	R47151	1	O-Ring	-
4	T373935	1	Gasket	-
5	AT491603	1	DEF Tank Header Assembly	-
6	AT483376	1	DEF Baffle	Baffle Kit
7	AT502964	1	Filter Kit	-
8	24M7333	2	Washer	5.300 X 10 X 1 mm
9	19M10320	2	Cap Screw	M4 X 16
10	AT473561	1	Bracket	-
11	19M10562	6	Screw	M6 X 25
12	21M7647	4	Socket Head Screw	M5 X 20
13	T74412	2	Clamp	-
14	19M7865	2	Screw	M8 X 16
15	T404112	1	Bracket	DEF Fill Bracket
16	T402676	1	Hose	-
17	AT471500	1	Filler Neck	DEF Fill, Non-locking, ORDER DZ122990
17	DZ122990	1	Filler Neck	DEF Fill, Non-locking
18	DZ122989	1	Filler Neck	ORDER DZ122990
19	AT472915	1	Filler Cap	-
20	AT472918	1	Insert	Magnetic Insert
21	T386561	1	Guard	Wiper Guard
22	T386562	1	Retainer	Lanyard Retainer
23	RE67208	2	Clamp	-
24	AT415056	1	Strap	-
25	19M7806	1	Screw	M10 X 50
26	19M10878	6	Screw	M6 X 10
27	19M10562	2	Screw	M6 X 25
28	24M7298	2	Washer	8.400 X 25 X 2 mm
29	14M7636	2	Flange Nut	M6
30	T76252	1	Clamp	-
31	T74412	1	Clamp	-
32	19M7865	3	Screw	M8 X 16
33	57M8736	4	Elec. Connector Accessory	-
34	DZ119109	1	DEF Line	LGTH = 1250 mm, Suction, ORDER DZ121225; INCLUDES 57M9776
34	DZ121225	1	DEF Line	LGTH = 1250 mm, Suction, INCLUDES 57M9776
35	57M9776	1	Elec. Connector Housing	-
36	DZ121226	1	DEF Line	LGTH = 875 mm, Suction Jumper, INCLUDES 57M9776 AND 57M9772
36	DZ119110	1	DEF Line	LGTH = 875 mm, Suction Jumper, ORDER DZ121226; INCLUDES 57M9776 AND 57M9772
37	57M9772	1	Elec. Connector Housing	-
38	57M9776	1	Elec. Connector Housing	-
39	RE561939	1	DEF Line	LGTH = 2500 mm, Pressure Line, INCLUDES R536735 AND 57M9777
40	R536735	2	Clip	-
41	57M9777	1	Elec. Connector Housing	-
42	DZ107814	1	DEF Line	LGTH = 1100 mm, Backflow Line, INCLUDES R536735, R536734 AND 57M9778
42	R536734	1	Clip	-
43	R536735	1	Clip	-
44	57M9778	1	Elec. Connector Housing	-
45	14M7273	3	Nut	M8
46	T315071	1	Hose	-
47	T370527	1	Tube	-
48	-	1	Part 52	MAKE FROM T319228, CTL 50 mm (0.20 ft)
49	H216170	1	Fitting	-
50	H216169	1	Breather	-
51	N380408	1	Clamp	-
52	19M7867	1	Screw	M8 X 25
53	H224073	1	Tie Band	-
54	H224073	2	Tie Band	-
55	AN209168	1	Swivel	-
56	R133839	4	Clamp	-
57	T295912	2	Clamp	-
58	T269640	9	Clamp	-
59	T269643	2	Clamp	-
60	19M7866	17	Screw	M8 X 20
61	T47338	1	Grommet	-
62	R180306	1	Grommet	-
63	DZ118548	1	Filter	DEF Inline Filter Assembly, INCLUDES DZ110513
64	DZ110513	1	Filter Kit	DEF Inline Service Kit with Compensation Element, Bowl Seal and Drain Plug
65	AT414182	1	Bracket	Supply Module Mounting Bracket
66	DZ111284	1	DEF Dosing Unit Pump	ORDER DZ121771
66	DZ121771	1	DEF Dosing Unit Pump	SUB FOR DZ119472
67	RE549603	1	Adapter Fitting	Supply Module Inlet
68	RE549604	1	Adapter Fitting	Supply Module Outlet
69	RE555351	1	Cap	-
70	DZ114640	1	Filter Kit	DEF Injection Pump
71	RE549605	1	Adapter Fitting	Supply Module Backflow
72	19M9843	3	Screw	M8 X 90

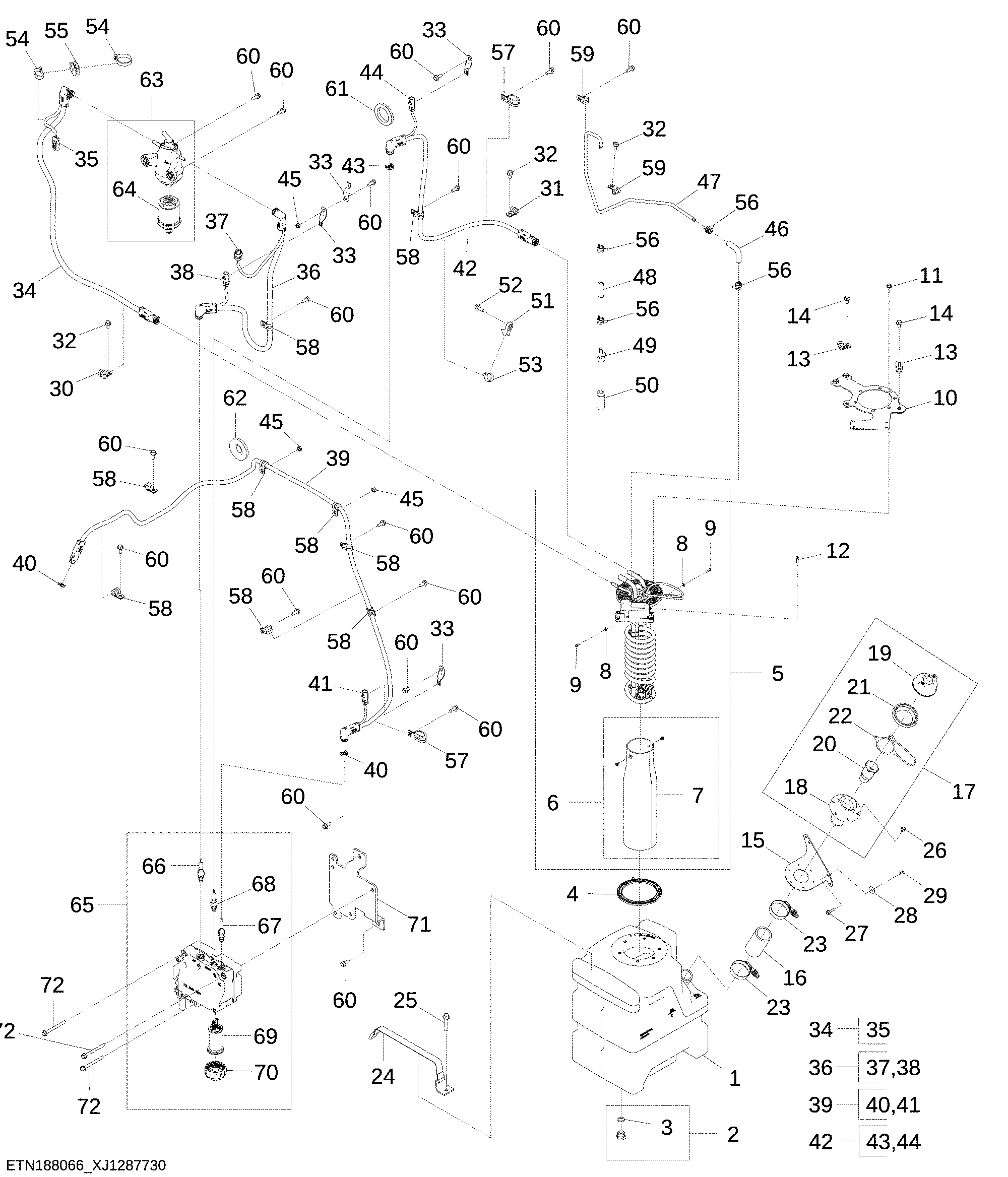

Diesel Exhaust Filter (DEF) Tank and Lines
