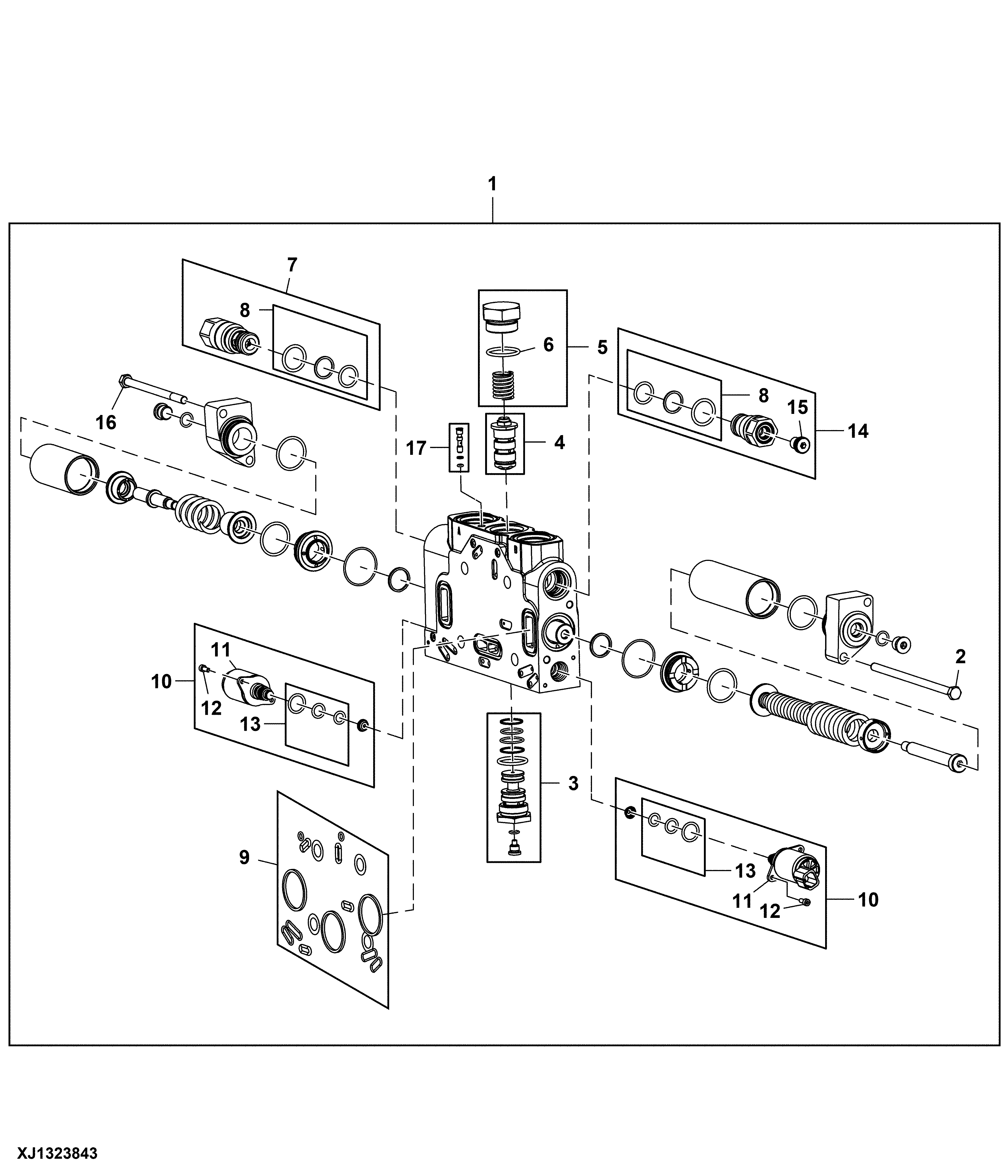

Boom Valve Section Components ( - 15417)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT525119	1	Valve Kit	Boom Section
1	AT508804	1	Valve Kit	Boom Section, ORDER AT525119
2	19H3782	2	Cap Screw	5/16" X 6-1/4"
3	AT210686	1	Check Valve	-
4	AT210687	1	Compensator	-
5	AT220831	1	Plug Kit	INCLUDES R29936
6	R29936	1	O-Ring	-
7	AT221506	1	Hyd Actuated Control Valve	Anticavitation Valve, INCLUDES U12547 AND AT170991
8	AT124574	1	O-Ring	-
8	T154187	1	Back-Up Ring	-
8	U12547	1	O-Ring	-
8	AT170991	2	O-Ring Kit	Relief Valve External Seal Kit, INCLUDES T154187 AND AT124574
9	AT488561	1	Seal Kit	Work Section Seal Kit
10	AT488571	2	Valve Kit	Pilot End Cap Kit, INCLUDES AT488589
11	AT488589	2	Solenoid Hydraulic Valve	INCLUDES (2) F308978 AND AT319043
12	F308978	2	Cap Screw	-
13	AT319043	1	Seal Kit	Actuator Seal Kit
14	AT509786	1	Adapter Fitting	-
15	64M1016	1	Drain Plug	ALSO ORDER 51M7040
15	51M7040	1	O-Ring	9.300 X 2.200 mm
16	T174025	2	Cap Screw	-
17	T172562	1	Check Valve	-
17	A4742R	1	Ball	USE WITH T172562

Boom Valve Section Components ( - 15417)
