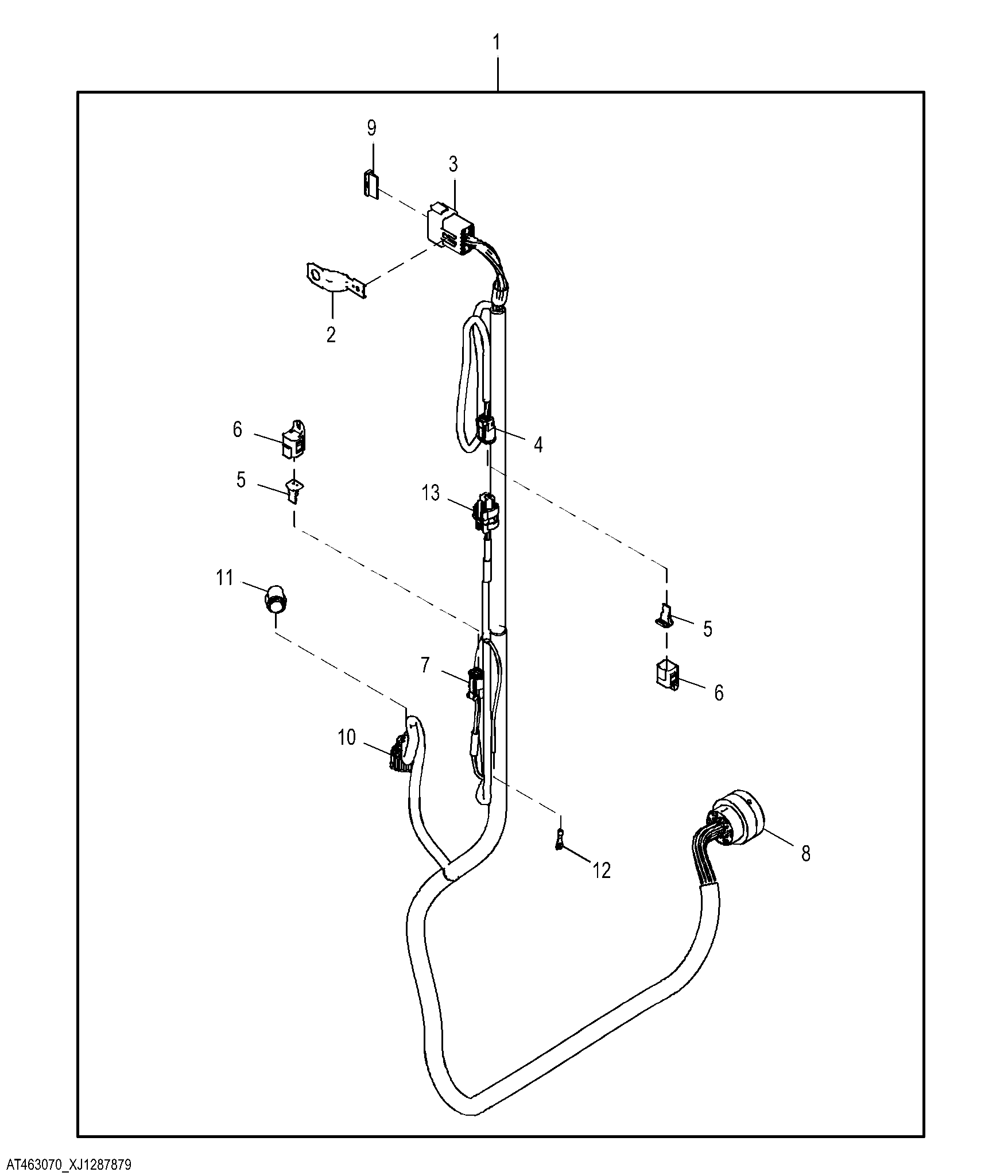

Baffle Wiring Harness, RH ( - 12629)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT463070	1	Wiring Harness	Baffle Wiring Harness, RH
2	57M8736	1	Elec. Connector Accessory	-
3	57M11232	1	Elec. Connector Housing	Baffle/Aftertreatment Inline, X1B
3	R78066	11	Elec. Connector Terminal	-
3	57M7541	1	Elec. Connector Terminal	-
4	57M8021	1	Electrical Connector Assy	Surge Tank Light, E31
4	R78065	2	Elec. Connector Terminal	-
5	57M8022	2	Elec.Connect Locking Device	-
6	57M11230	2	Elec. Connector Accessory	-
7	57M8021	1	Electrical Connector Assy	Differetial Lock, Rear Axle, Y33
7	R78065	2	Elec. Connector Terminal	-
8	57M7751	1	Elec. Connector Housing	X40B
8	57M7542	1	Elec. Connector Terminal	-
8	R78065	20	Elec. Connector Terminal	-
8	R78069	10	Elec. Connector Cavity Plug	-
9	57M7682	1	Elec.Connect Locking Device	-
10	57M13137	1	Elec. Connector Housing	Coolant Control Valve, Y73
10	57M7401	2	Elec. Connector Cavity Plug	-
11	57M9585	1	Elec. Connector Accessory	-
12	57M11361	1	Elec. Connector Terminal	Delta Pressure, Rear Axle, B60
13	57M9727	1	Elec. Connector Housing	Oil Temperature Sensor, Rear Axle, B74
13	R78065	2	Elec. Connector Terminal	-

Baffle Wiring Harness, RH ( - 12629)
