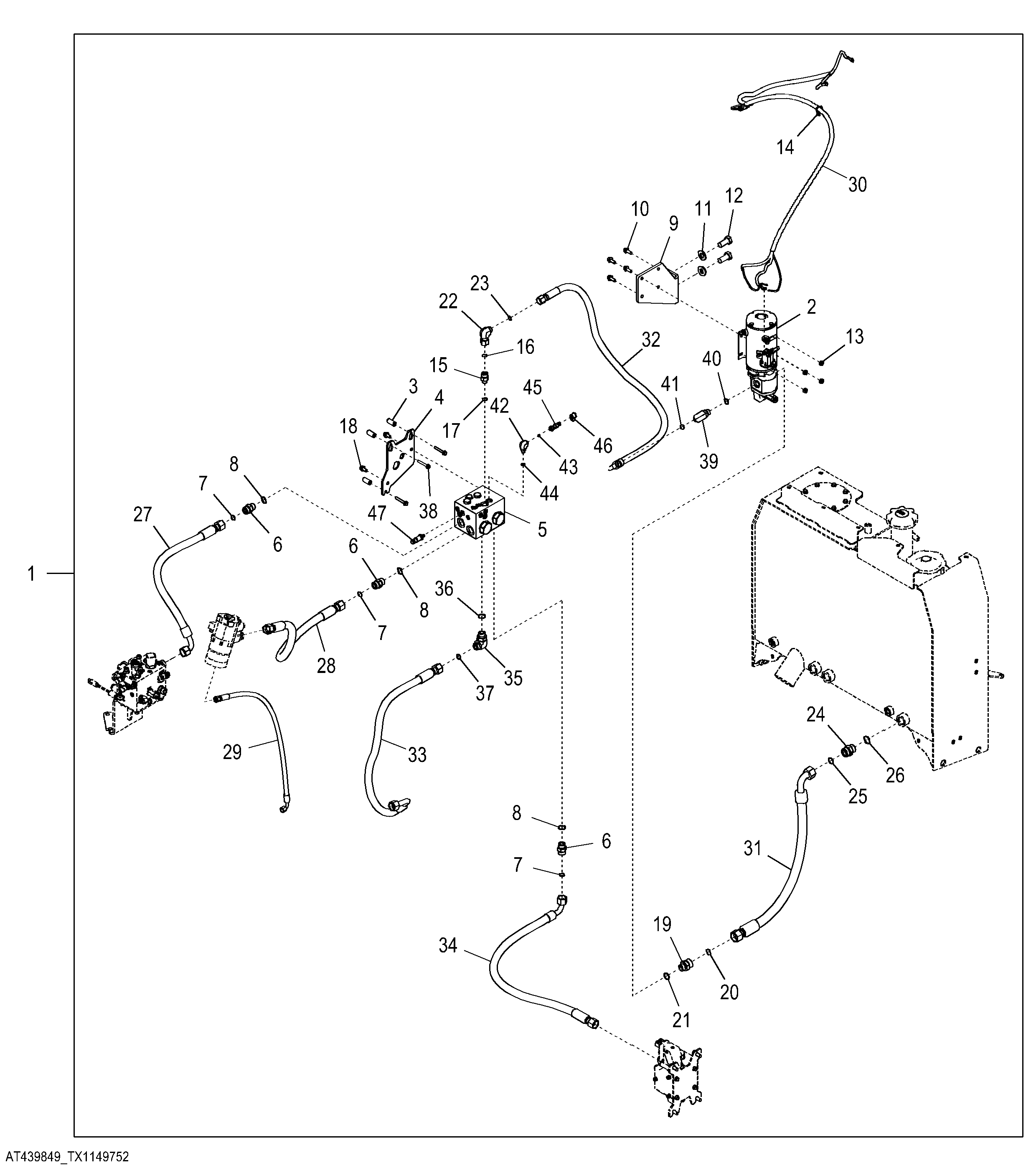

Secondary Steering System Conversion Kit (654411 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT439849	1	Steering System	Whole Goods
2	AT390167	1	Pump	Secondary Steering Pump, INCLUDES AT210093, AT210094, AT390168, AND AT390169
2	AT390169	1	Pressure Relief Valve	-
2	AT390168	1	Pump	-
2	AT210093	1	Solenoid	-
2	AT210094	1	Motor	-
3	T204457	3	Spacer	-
4	T275106	1	Plate	-
5	AT438550	1	Manifold	Secondary Steering Valve Components On Separate Page
6	38H1163	3	Adapter Fitting	-
7	T77858	3	O-Ring	-
8	U12547	3	O-Ring	-
9	T173579	1	Bracket	-
10	19M7785	4	Screw	M10 X 25
11	24M7242	2	Washer	21.400 X 42 X 5 mm
12	19M7946	2	Cap Screw	M20 X 40
13	14M7274	4	Nut	M10
14	R44302	1	Tie Band	-
15	38H1317	1	Fitting	-
16	T77932	1	O-Ring	-
17	R26375	1	O-Ring	-
18	19M7784	2	Screw	M10 X 20
19	38H1179	1	Adapter Fitting	-
20	T76938	1	O-Ring	-
21	U12547	1	O-Ring	-
22	38H1096	1	Elbow Fitting	-
23	T77932	1	O-Ring	-
24	38H1164	1	Adapter Fitting	-
25	T76938	1	O-Ring	-
26	R29936	1	O-Ring	-
27	AT342667	1	Hydraulic Hose	Fabricate
28	AT342677	1	Hydraulic Hose	Fabricate
29	AT341272	1	Hydraulic Hose	Fabricate
30	AT371365	1	Wiring Harness	Secondary Steering
31	AT400826	1	Hydraulic Hose	-
32	AT400829	1	Hydraulic Hose	-
33	AT342687	1	Hydraulic Hose	Fabricate
34	AT361475	1	Hydraulic Hose	Fabricate
35	38H1007	1	Elbow Fitting	-
36	U12547	1	O-Ring	-
37	T77858	1	O-Ring	-
38	19M7979	3	Screw	M8 X 55
39	38H1006	1	Elbow Fitting	-
40	R26906	1	O-Ring	-
41	T77932	1	O-Ring	-
42	38H1009	1	Elbow Fitting	-
43	T77814	1	O-Ring	-
44	R26448	1	O-Ring	-
45	RE60700	1	Diagnostic Coupling	-
46	R77175	1	Cover	-
47	AT442924	1	Pressure Sensor	Steering System Pressure Switch, SUB FOR AT358048

Secondary Steering System Conversion Kit (654411 - )
