Открытый узел

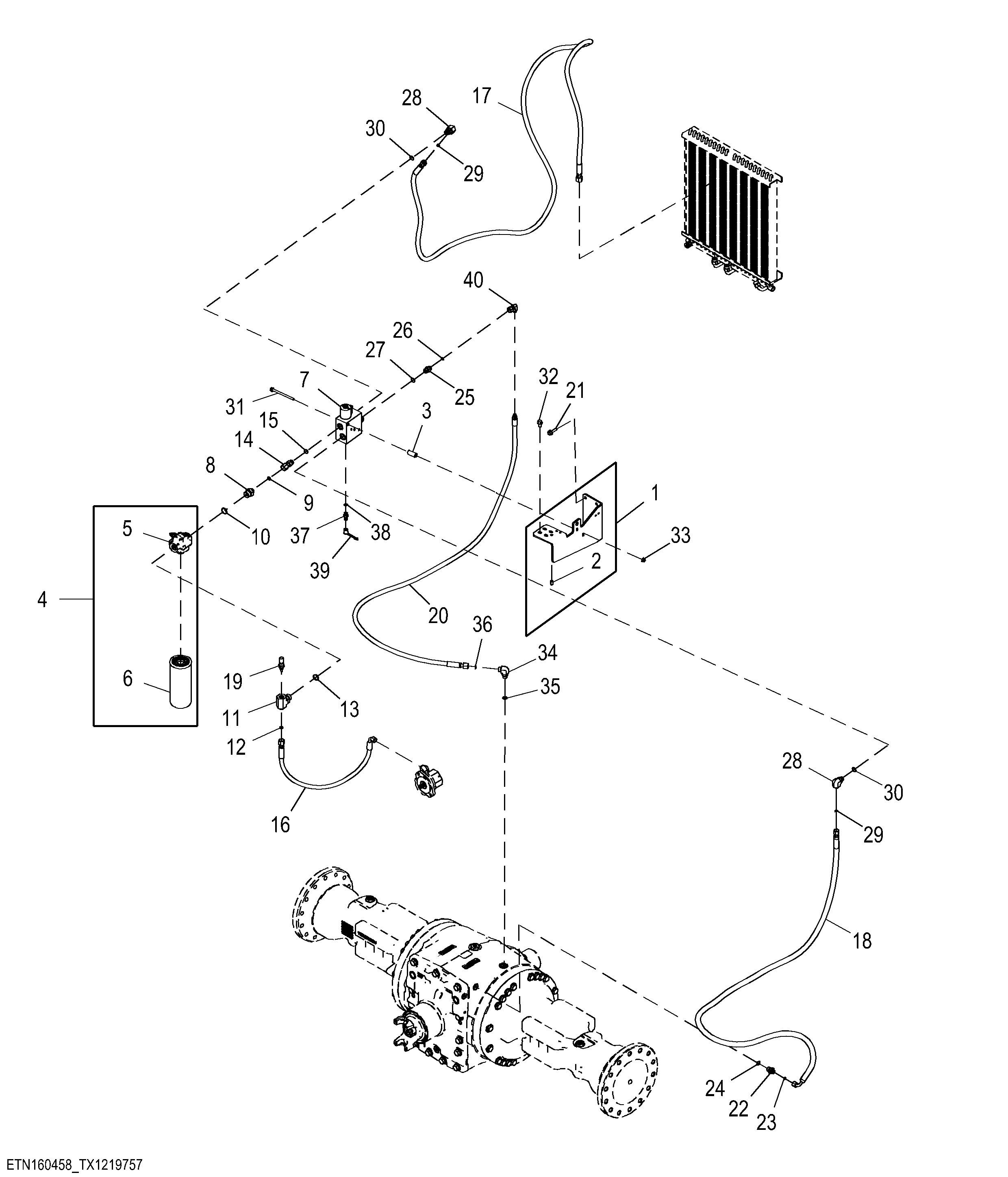

Rear Differential Filter and Lines (XXXXXX - )

Rear Differential Filter and Lines (XXXXXX - )

Rear Differential Filter and Lines (XXXXXX - )

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

Rear Differential Filter and Lines (XXXXXX - )

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT441690	1	Support	-
2	34M7250	1	Spring Pin	10 X 20 mm
3	T257177	2	Bushing	-
4	AT441901	1	Filter	Axle Cooling
5	AT417999	1	Filter Head	INCLUDES AT349964, T70177, 14H778 AND 12H295
5	AT349964	1	Pressure Switch	Pressure Differential, INCLUDES T70177, 14H778 AND 12H295
5	T70177	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
5	14H778	2	Nut	0.190"
5	12H295	1	Lock Washer	0.190"
6	AH128449	1	Hydraulic Filter	-
7	T225291	1	Nut	-
7	AT316676	1	Seal Kit	Relief Valve
7	AT417484	1	Pressure Relief Valve	INCLUDES AT316676
7	AT423342	1	Solenoid Valve Coil	Solenoid Valve Coil
7	AT324909	1	Seal Kit	Solenoid Valve Seal Kit
7	AT351888	1	Solenoid Valve	INCLUDES AT324909, AT423342, AND T225291
7	AT417241	1	Valve	Differential Lock Valve, INCLUDES AT351888, AT324909, T225291, AT423342, AT417484 AND AT316676
8	38H1175	1	Adapter Fitting	-
9	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
10	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
11	T278328	1	Tee Fitting	-
12	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
13	U12547	1	O-Ring	23.470 X 2.946 mm (0.924" X 0.116")
14	38H1068	1	Adapter Fitting	-
15	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
16	AT415520	1	Hydraulic Hose	-
17	AT428276	1	Hydraulic Hose	-
18	AT469522	1	Hydraulic Hose	-
19	RE537637	1	Coolant Temperature Sensor	-
20	AT444271	1	Hydraulic Hose	-
21	19M7835	4	Screw	M10 X 35
22	38H5012	1	Adapter Fitting	-
23	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
24	51M7043	1	O-Ring	15.300 X 2.200 mm
25	38H1171	1	Adapter Fitting	-
26	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
27	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
28	38H1010	1	Elbow Fitting	-
29	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
30	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
31	19M8006	2	Screw	M8 X 120
32	19M7784	4	Screw	M10 X 20
33	14M7298	2	Flange Nut	M8
34	38H5017	1	Elbow Fitting	-
35	51M7043	1	O-Ring	15.300 X 2.200 mm
36	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
37	AH125760	1	Hyd. Quick-Connect Coupler	-
38	R26448	1	O-Ring	11.887 X 1.981 mm (0.468" X 5/64")
39	R77175	1	Cover	-
40	62H1021	1	Adapter Fitting	-
