Открытый узел

YZ121256 Differential Lock, Hydraulic

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

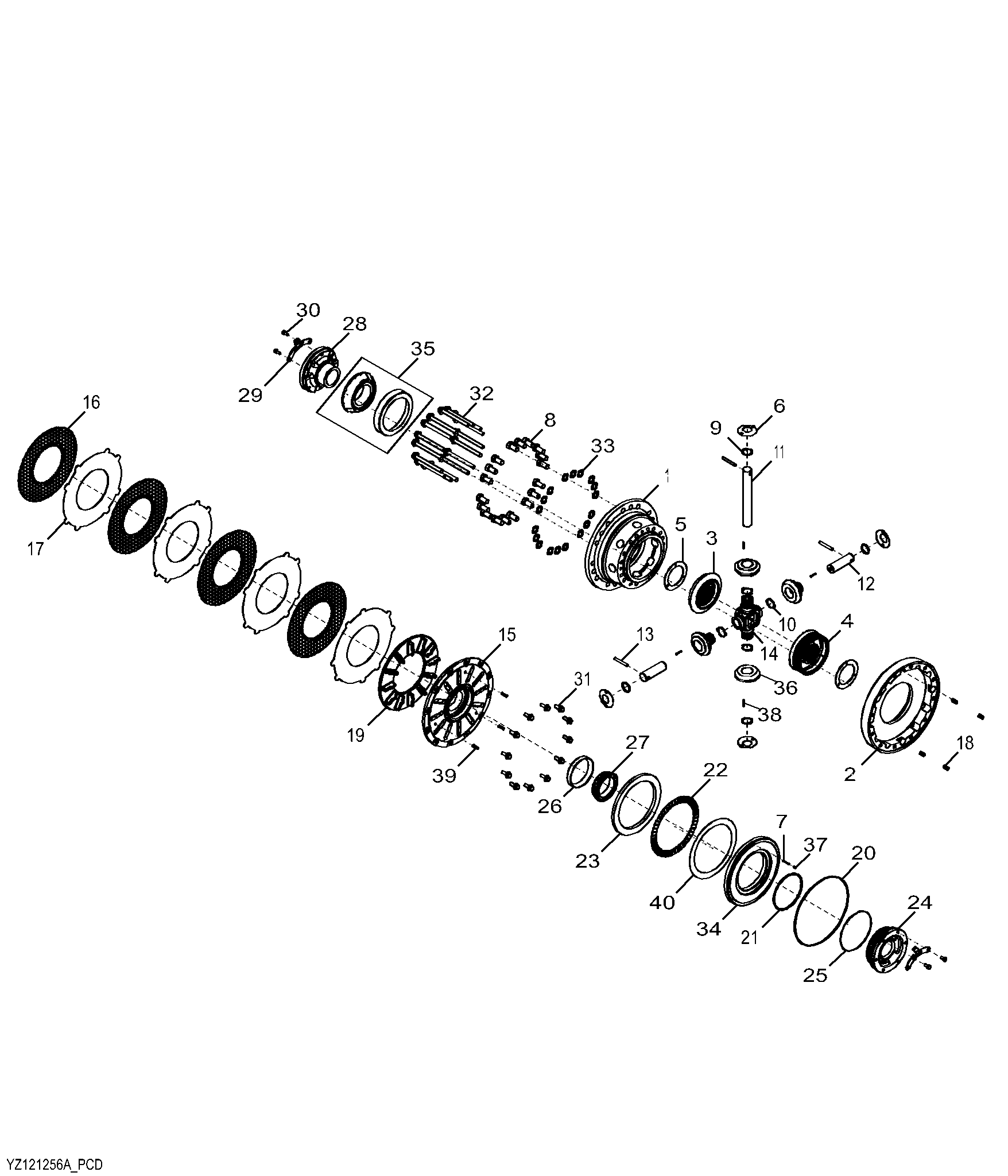

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	YZ121239	1	Housing	MARKED YZ120951
2	YZ120954	1	Housing	MARKED YZ120953
3	YZ121133	1	Bevel Gear	SUB FOR R59289
4	YZ121134	1	Bevel Gear	SUB FOR YZ120386
5	R93623	2	Thrust Washer	-
6	R59460	4	Thrust Washer	-
7	34M7245	1	Spring Pin	6 X 28 mm, SUB FOR 34M7040
8	R48787	18	Cap Screw	SUB FOR R135514
9	R70112	4	Thrust Washer	-
10	R70113	4	Thrust Washer	-
11	R132827	1	Pinion Shaft	-
12	R132828	2	Pinion Shaft	-
13	W30317	3	Spring Pin	-
14	R132836	1	Hub	-
15	YZ123476	1	Cover	(For Skidder Applications) ALSO ORDER YZ123534, YZ123421 AND YZ123483
15	YZ121230	1	Cover	(For Loader or Non Skidder Applications)
16	YZ121823	4	Clutch Disk	SUB FOR YZ120964
17	YZ121110	4	Clutch Plate	-
18	YZ120902	4	Compression Spring	-
19	YZ121199	1	Actuator	-
20	YZ121090	1	Seal	-
21	YZ120968	1	Seal	-
22	YZ123483	1	Needle Bearing	(For Skidder Applications) ALSO ORDER YZ123534, YZ123421 AND YZ123476
22	YZ120970	1	Needle Bearing	(For Loader or Non Skidder Applications)
23	YZ123534	1	Thrust Washer	(For Skidder Applications) TK = 11.02 mm, ALSO ORDER YZ123483, YZ123421 AND YZ123476
23	YZ121228	1	Spacer	(For Loader or Non Skidder Applications) TK = 11.06 mm
24	YZ120961	1	Bearing Housing W/O Bearing	MARKED YZ120959
25	R136314	1	O-Ring	-
26	YZ122237	1	Bearing Cup	-
27	YZ122240	1	Bearing Cone	-
28	YZ120960	1	Bearing Housing W/O Bearing	MARKED YZ121010
29	YZ121016	2	Lock Plate	-
30	R88246	4	Cap Screw	-
31	19M7785	12	Screw	M10 X 25
32	19M7838	16	Screw	M12 X 130
33	R85226	18	Washer	-
34	YZ123421	1	Piston	(For Skidder Applications) ALSO ORDER YZ123534, YZ123483 AND YZ123476
34	YZ121227	1	Piston	(For Loader or Non Skidder Applications)
35	YZ121260	1	Tapered Roller Bearing	-
36	R134726	4	Pinion	ALSO ORDER (26) R70115
37	YZ121036	1	Plug	-
38	R70115	104	Needle Roller	-
39	R109082	3	Needle Roller	-
40	YZ120971	1	Thrust Washer	(For Loader or Non Skidder Applications) TK = 1.0 mm

YZ121256 Differential Lock, Hydraulic

Нет текстового описания
