QUICK COUPLER PIN DISCONNECT KIT (SN 590068- )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AT211452	1	Oil Line	Left Boom Oil Line
2	19M7784	8	Screw	M10 X 20, (SUB FOR 19M7783)
3	H75541	8	Clamp	-
4	AT211453	1	Oil Line	Right Boom Oil Line
5	T77613	11	O-Ring	-
6	AT324153	2	Hydraulic Hose	Fabricate, (SUB FOR AT219985)
7	AT307800	1	Oil Line	On Front Right Of Loader Frame
8	AT307799	1	Oil Line	Left Loader Frame Oil Line
9	T77857	2	O-Ring	-
10	38H1173	2	Adapter Fitting	-
11	R26448	3	O-Ring	-
12	38H1415	2	Fitting	-
13	AT167553	1	Hydraulic Hose	-
14	AT169939	1	Hydraulic Hose	-
15	AT202805	1	Switch	Not Illustrated
16	AT355043	1	Wiring Harness	(SUB FOR AT202824 ) (INCLUDES AR94101)
17	AT225530	1	Hyd Actuated Control Valve	Quick Coupler Pin Disconnect Valve
19	R28782	1	O-Ring	-
20	14M7400	2	Lock Nut	M10
21	19M7812	2	Screw	M10 X 100
22	38H1004	1	Elbow Fitting	-
23	38H1023	1	Tee Fitting	-
24	38H1160	1	Adapter Fitting	-
26	T72414	8	Bushing	-
27	38H1309	1	Adapter Fitting	-
28	R77175	1	Cover	-
30	RE60701	1	Diagnostic Coupling	-
31	-	1	Part 28	Order Components, AT307820 NLA

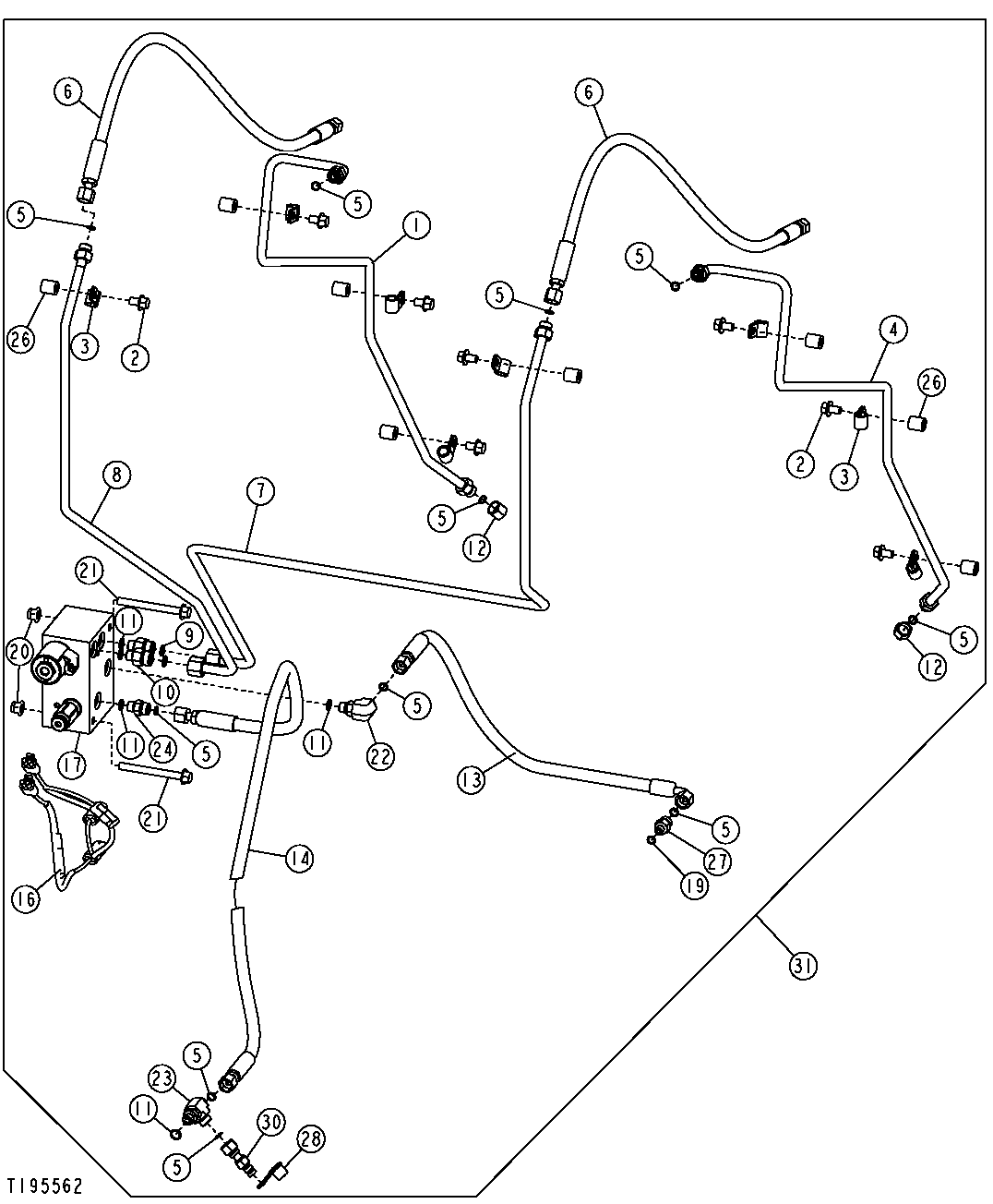

QUICK COUPLER PIN DISCONNECT KIT (SN 590068- )
