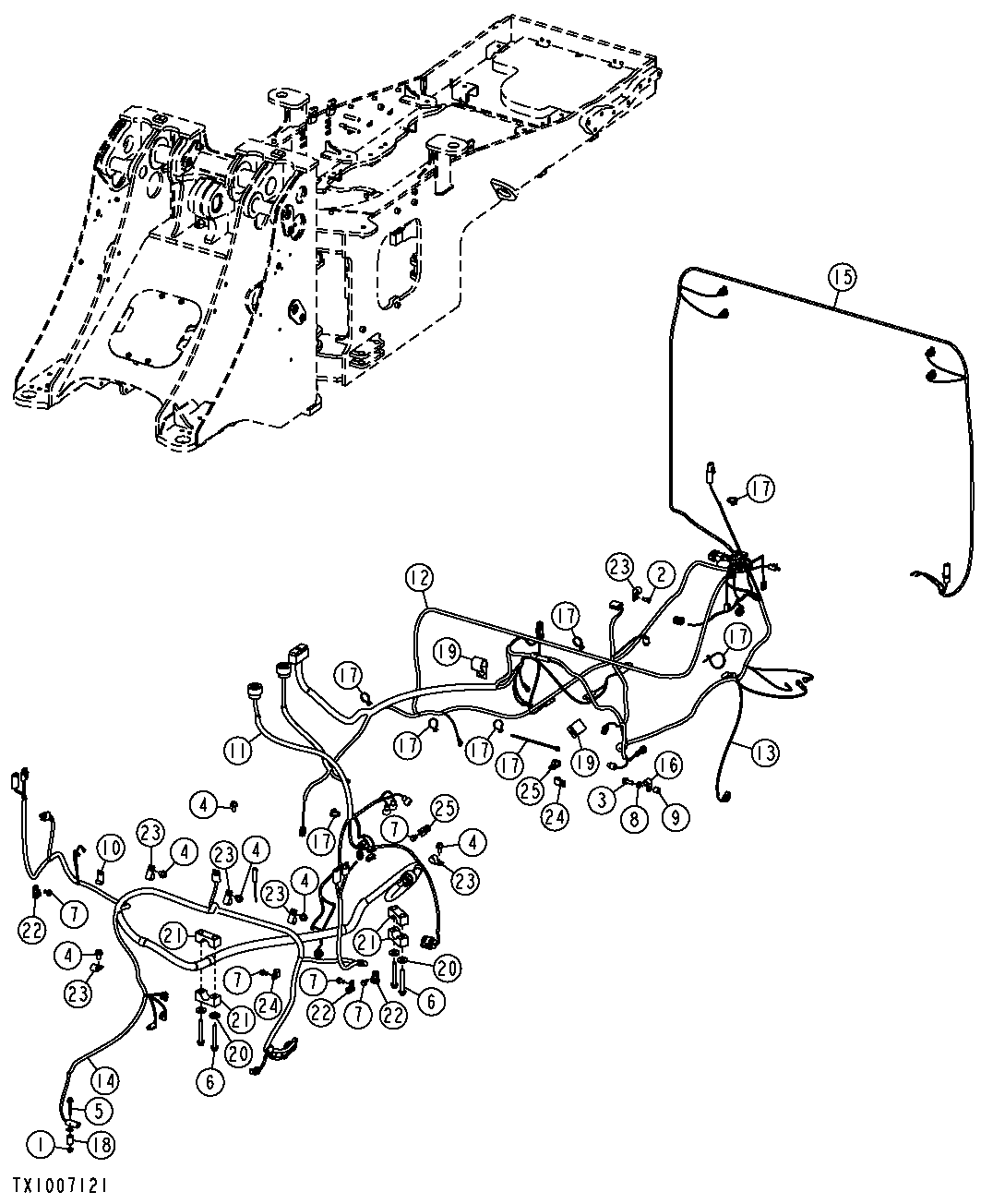

Main Wiring Harnesses (590068 - 611218)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7298	1	Flange Nut	M8
2	19H2664	1	Cap Screw	5/16" X 3/4"
3	19H3771	1	Screw	3/8" X 1"
4	19M7784	6	Screw	M10 X 20
5	19M7800	1	Screw	M8 X 50
6	19M7810	4	Screw	M10 X 80
7	19M7865	5	Screw	M8 X 16
8	24M7239	1	Washer	10.700 X 21 X 2.500 mm
9	28H3381	1	Spacer	0.493" X 0.675" X 5/8"
10	AH89557	1	Clip	-
11	AT301026	1	Wiring Harness	Transmission
11	AT308672	1	Wiring Harness	Transmission Harsh Environment
12	AT304859	1	Wiring Harness	Engine Frame
12	AT308678	1	Wiring Harness	Engine Frame Harsh Environment
13	AR94101	1	Diode	A/C Clutch Diode Not Illustrated
13	AT341342	1	Wiring Harness	Engine Harsh Environment
13	AT316058	1	Wiring Harness	Engine
13	AT304922	1	Wiring Harness	Engine
13	AT308681	1	Wiring Harness	Engine Harsh Environment
14	AT227138	1	Wiring Harness	Loader Frame
14	AT320922	1	Wiring Harness	Loader Frame
14	AT306641	1	Wiring Harness	Loader Frame Harsh Environment
14	AT335693	1	Wiring Harness	Loader Frame Harsh Environment
15	AT322893	1	Wiring Harness	Rear Frame
15	AT308680	1	Wiring Harness	Rear Frame Harsh Environment
15	AT341343	1	Wiring Harness	Rear Frame Harsh Environment
16	H75541	1	Clamp	-
17	R44302	10	Tie Band	-
18	T147891	1	Bushing	-
19	T203438	2	Clamp	-
20	T29342	4	Washer	-
21	T67995	4	Clamp	-
22	T74412	3	Clamp	-
23	T74416	6	Clamp	-
24	T75197	2	Clamp	-
25	T75276	3	Clamp	-

Main Wiring Harnesses (590068 - 611218)

Нет текстового описания
