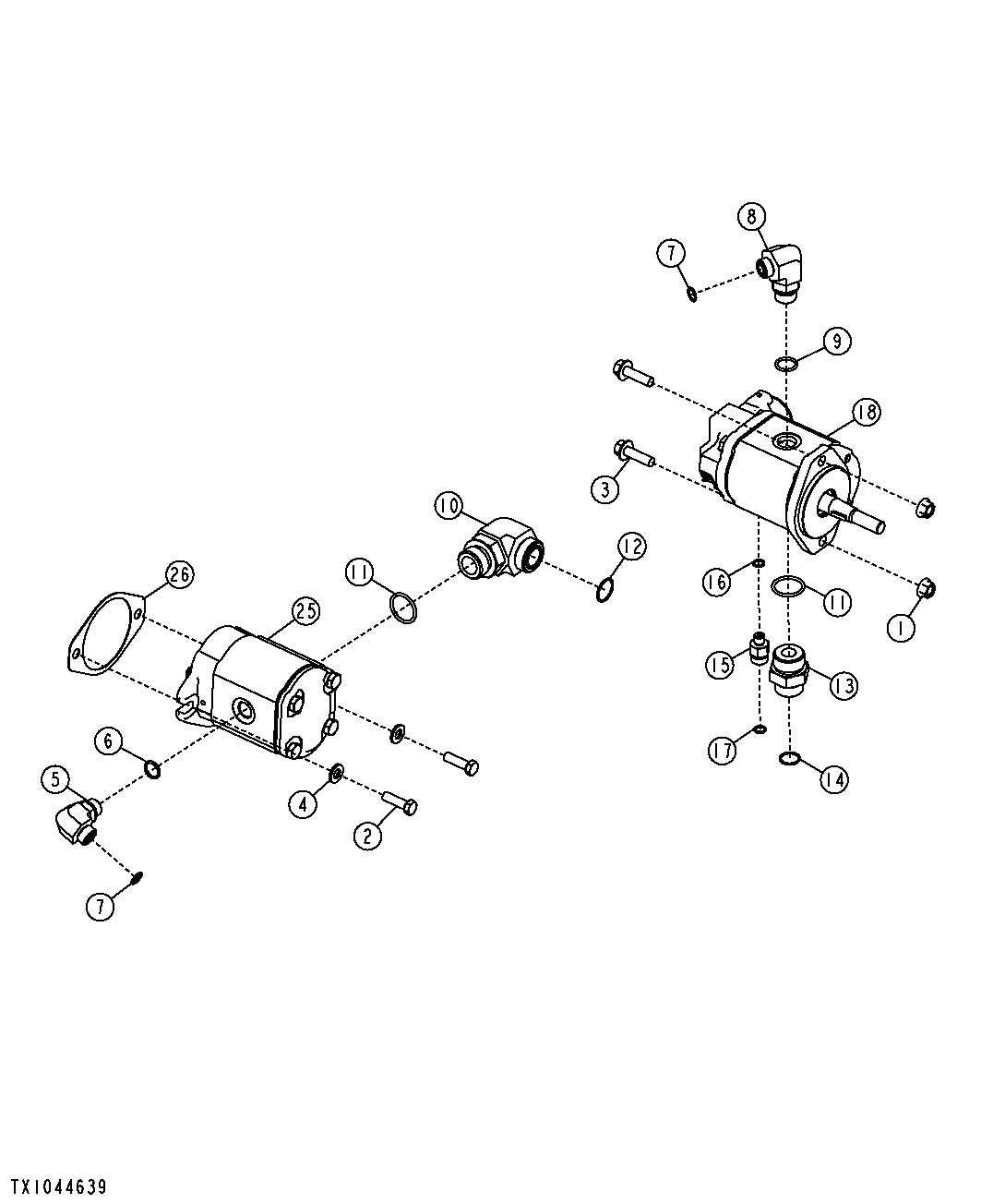

FAN DRIVE HYDRAULIC PUMP AND MOTOR (HI AMBIENT)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14M7296	2	Flange Nut	M10
2	19H3239	2	Cap Screw	3/8" X 1-1/4"
3	19M7835	2	Screw	M10 X 35
4	24M7239	2	Washer	10.700 X 21 X 2.500 mm
5	38H1005	1	Elbow Fitting	-
6	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
7	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070")
8	38H1012	1	Elbow Fitting	-
9	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
10	38H1037	1	Elbow Fitting	-
11	R29936	2	O-Ring	29.743 X 2.946 mm (1.171" X 0.116")
12	T76938	1	O-Ring	-
13	38H1194	1	Adapter Fitting	-
14	T77858	1	O-Ring	18.771 X 1.778 mm (0.739" X 0.070")
15	38H1309	1	Adapter Fitting	-
16	R28782	1	O-Ring	8.915 X 1.829 mm (0.351" X 0.072")
17	T77613	1	O-Ring	9.246 X 1.778 mm (0.364" X 0.070")
18	AT225505	1	Hydraulic Motor	Includes Parts Marked (A)
19	AT211379	1	Seal Kit	Not Illustrated, (A)
20	AT211381	1	Seal Kit	Not Illustrated, (A)
21	AT432517	1	Pressure Relief Valve	Includes Parts Marked (B) Not Illustrated, (A), SUB FOR AT227509
22	AT224864	1	Seal Kit	Not Illustrated, (B)
23	AT423340	1	Solenoid Valve Coil	Not Illustrated, (B), SUB FOR AT333810
24	T225294	1	Nut	14.275 mm (9/16"), Not Illustrated, (B)
25	AT314170	1	Hydraulic Pump	-
25	AT498455	1	Seal Kit	-
26	R96935	1	Gasket	-
27	AH96708	1	Elbow Fitting	Not Illustrated

FAN DRIVE HYDRAULIC PUMP AND MOTOR (HI AMBIENT)

Нет текстового описания
